What's the Difference Between Sealed and Unsealed Automotive Connectors?

What's the Difference Between Sealed and Unsealed Automotive Connectors?

Automotive Electrical Connectors play a crucial role in ensuring reliable power transmission and signal integrity in modern vehicles. From engine management systems to in-cab infotainment modules, these connectors must maintain performance across varying temperatures and environments. Understanding the nuances between sealed and unsealed designs helps engineers, technicians and hobbyists choose the right solution for each application. This blog explores the defining characteristics, advantages and limitations of both types, weaving in related entities such as waterproof electrical connectors, weather pack connectors and sealed systems.

Sealed and unsealed connectors serve distinct needs in automotive and industrial environments. Sealed connectors feature rubber gaskets, O-rings or specialised housing to keep out moisture, dust and chemicals. Unsealed variants rely on simpler designs where environmental exposure is minimal, trading resilience for cost-effectiveness. By comparing performance criteria, industry standards and maintenance best practices, this post empowers readers to make informed decisions for everything from under-bonnet harnesses to interior wiring looms.

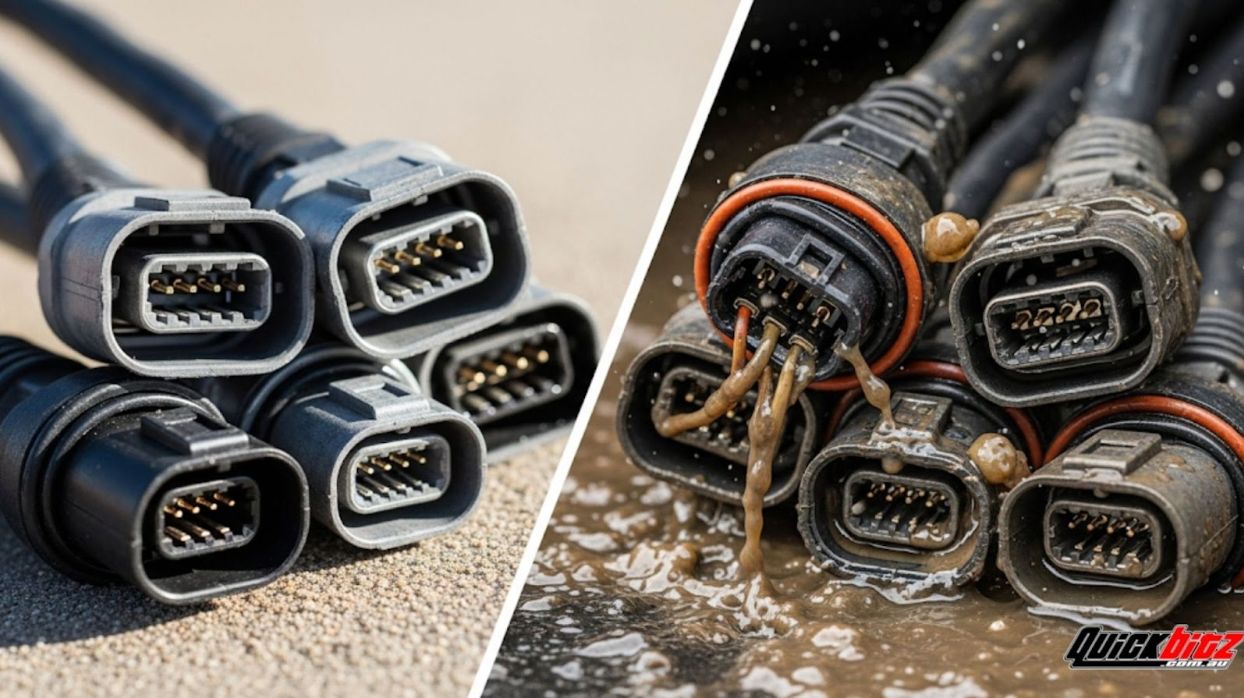

What is the difference between sealed and unsealed connectors?

Sealed connectors incorporate dedicated sealing elements—often silicone gaskets or rubber O-rings—around each terminal interface. This prevents ingress of water, dust and corrosive agents, enabling stable operation under harsh conditions. Automotive sealed connectors typically meet IP67 or IP68 ratings, making them suitable for engine bay, chassis-exposed wiring and off-road applications.

In contrast, unsealed connectors omit these protective barriers. Their streamlined housings and open interfaces are designed for controlled environments where moisture and particulate intrusion pose minimal risk. Common uses include internal cabin wiring, dashboard modules and non-critical signal paths in dry, sheltered locations.

Connector selection hinges on application requirements. Where load-carrying capacity, vibration resistance and environmental sealing are paramount, sealed connectors are indispensable. For less demanding scenarios, unsealed options deliver affordability and ease of assembly without unnecessary complexity.

Maintenance regimes also differ. Sealed connectors demand periodic sealing integrity tests and housing inspections, whereas unsealed types focus on contact cleanliness and mechanical wear. Both varieties benefit from proper crimping, correct insertion force and adherence to manufacturer guidelines.

Automotive Electrical Connectors: A Comprehensive Overview

Automotive Electrical Connectors form the backbone of any vehicle’s wiring architecture. They facilitate the interface between sensors, actuators and control units, ensuring precise data and power delivery across the vehicle network.

Automotive Electrical Connectors come in a vast array of pin counts, housing styles and locking mechanisms. From single-pole bullet connectors to multi-way rectangular modules, each design addresses unique installation constraints and electrical demands.

Durability under vibration, temperature extremes and fluid exposure is a core requirement. Automotive grade connectors often comply with USCAR-2 Rev 4, USCAR-21 and ISO 10303 standards, guaranteeing consistent performance over millions of insertion cycles.

Engineers must also account for wire gauge compatibility, dielectric strength and potential electromagnetic interference. By specifying the right connector series—such as Deutsch DT, Molex MX150 or TE AMP Superseal—designers can balance size, sealing efficacy and current rating.

One must also consider downstream maintenance. Quick diagnostics and modular replacement are simplified when connector series share common tool-free release clips and colour-coded housings, streamlining in-field servicing and reducing downtime.

The following mid-body paragraph embeds a relevant internal link:

In modern OEM production lines, harness assemblies leverage Automotive Electrical Connectors with integrated strain reliefs and latch locks, optimising both throughput and reliability.

Key characteristics of sealed systems

Sealed systems offer comprehensive protection from the environment, ensuring uninterrupted functionality under extreme conditions. These connector families integrate multiple sealing barriers around each electrical contact.

By design, sealed systems feature silicone or EPDM (ethylene propylene diene monomer) seals that compress against the mating face, fully isolating the internal circuitry. Ingress protection ratings like IP67 (submersion to one metre) and IP68 (extended immersion) attest to their integrity.

Dedicated waterproof electrical connectors, such as IP-rated Deutsch DT and Molex MX150 series, exemplify sealed systems with secondary locking features. These ensure that even under repeated thermal cycling, the seal remains intact and corrosion-resistant.

Sealing elements often include dual grommet designs that protect both wire entry and terminal interface. This prevents capillary action of fluids along the wire strands, preserving long-term contact reliability.

Gasketed housings and laboratory-tested performance curves validate that sealed systems can withstand chemical splash, high-pressure water jets and salt-spray corrosion. As automotive platforms evolve toward autonomous driving, the demand for robust sealed connectors will only intensify.

Waterproof electrical connectors

Waterproof electrical connectors incorporate O-rings or flat gasket seals into their mating interfaces. These compact components ensure IP67 compliance with minimal impact on connector size, making them ideal for tight engine-bay installations.

Typically constructed from corrosion-resistant materials like halogen-free nylon, these connectors maintain mechanical strength under thermal shock. Silicone gaskets resist UV degradation and maintain elasticity across –40 °C to +125 °C.

By integrating integrated silicone seals around each contact cavity, these connectors prevent condensation ingress, which could otherwise lead to galvanic corrosion or intermittent faults in sensor circuits.

Weather pack connectors

Weather pack connectors utilise stack-up sealing rings positioned around the metal terminals and wire entry points. Originally developed for rugged off-road vehicles, weather pack connectors remain popular in heavy-duty, marine and agricultural equipment.

Colour-coded and keyed housings aid quick assembly. Each cavity houses a dedicated micro gasket, enabling individual terminal replacement without compromising the overall seal.

Weather pack assemblies frequently adopt tower-and-shroud designs, which physically protect each terminal from mechanical damage, further extending service life in harsh environments.

Sealed systems in challenging environments

Cutting-edge sealed systems often conform to USCAR-21 fluid compatibility standards, ensuring immunity to coolants, oils and fuel vapours. In safety-critical automotive subsystems—such as ABS, airbag and engine management units—these connectors play a vital role.

Some advanced sealed connectors incorporate integrated venting membranes to equalise pressure during thermal cycling, reducing seal fatigue and preventing micro-cracking that could compromise long-term reliability.

Features of unsealed connectors

Unsealed connectors prioritise simplicity and cost-efficiency, removing sealing elements to reduce manufacturing complexity. Their open-face housings allow rapid cable insertion and visual confirmation of proper terminal seating.

By omitting gaskets and O-rings, unsealed connectors often deliver lower mating force, easing assembly in tight harness bundles. Terminal retention is achieved through simple snap-lock latches rather than multi-step seals.

Common applications include interior modules, dashboard clusters and non-critical communication lines within the passenger compartment. In these controlled environments, dust or moisture intrusion poses minimal risk to system operation.

Ventilation advantages emerge as an added benefit. Unsealed housings facilitate heat dissipation from higher current conductors, reducing junction temperature and increasing life expectancy in non-sealed contexts.

Cost savings can be significant when scaling interior harnesses comprising hundreds of connectors. The absence of seals reduces per‐piece expense and streamlines production cycle times.

Unsealed connectors also enable easy diagnostic testing and visual inspection of contact surfaces. Maintenance technicians can quickly assess pin integrity without disassembling multiple sealing layers.

They are well matched to low-voltage sensor circuits and interior lighting networks, where a simple crimp and snap action suffices. High-density connector variants further minimise harness diameter in space-challenged instrument clusters.

Despite their advantages, designers must carefully evaluate exposure risks. Environments exposed to bodily contaminants, road spray or HVAC moisture require at least minimal protection, favouring sealed or semi-sealed designs.

Comparing sealed and unsealed connectors

To illustrate the core distinctions between these connector families, consider the following table:

Criterion

Sealed Connectors

Unsealed Connectors

Sealing Performance

High (IP67, IP68, USCAR 21 compliance)

Low (no dedicated seal)

Environmental Suitability

Engine bay, chassis, exterior modules

Interior cabin, protected circuits

Cost

Higher (additional seals, testing)

Lower (simplified housing)

Complexity

Multi-step assembly with gaskets and O-rings

Single-step crimp and latch

Ventilation

Limited (sealed houses trap heat)

Enhanced (open design for heat dissipation)

Maintenance Focus

Seal integrity, ingress testing

Contact cleanliness, latch wear

Typical Connector Series

Deutsch DT, Molex MX150, TE AMP Superseal

Standard blade, snap-lock multi-way housings


Comparative analysis highlights that sealed connectors excel in environments subject to moisture, chemicals or particulate exposure. Unsealed connectors deliver cost and assembly advantages when environmental threats are minimal.

Application engineers often deploy a hybrid approach, using sealed systems for powertrain and chassis modules while reserving unsealed types for interior electronics and data signalling harnesses.

How to choose the right connector for your application

Selecting the optimal connector requires evaluating multiple design criteria in parallel. A systematic approach ensures that performance, cost and serviceability align with project goals.

First, assess environmental exposure. Will the wiring harness encounter high-pressure spray, road debris or condensing humidity? If so, sealed connectors mitigate contamination risks and extend mean time between failures.

Next, determine electrical load requirements. High-current circuits—such as fuel pump supply or headlamp power—benefit from connectors rated for elevated ampacity and minimal contact resistance under load.

Space constraints play a crucial role in interior modules. Low-profile unsealed connectors may be preferable for instrument clusters, where tight tolerances demand compact designs and minimal protrusion.

Consider maintenance frequency and serviceability. In fleet or heavy-duty scenarios, quick connector replacement without seal repacking reduces downtime and workshop labour costs.

Regulatory and industry standards also guide selection. Automotive grade connectors often adhere to USCAR-2 Rev 4 for performance validation, ISO 16750 for environmental testing and IATF 16949 for quality management.

Manufacturers provide detailed datasheets with terminal insertion/extraction forces, temperature derating curves and material compatibility charts. Leveraging this Technical Information during design reviews reduces the risk of field failures.

Lifecycle analysis and total cost of ownership can tilt decisions. Although sealed connectors incur higher upfront costs, their extended service intervals and corrosion resistance often justify the investment in safety-critical subsystems.

Maintenance and testing best practices

Proper maintenance preserves connector performance and prevents costly downtime. Establishing a routine plan ensures that both sealed and unsealed designs remain reliable.

Begin with visual inspections at each service interval. Check for cracked housings, damaged latch mechanisms and signs of moisture ingress around the seals of IP-rated connectors.

Cleaning should use lint-free cloths and mild isopropyl alcohol to remove dust, grease or road grime from contact interfaces. Avoid aggressive solvents that could erode plastic housings or compromise gasket elasticity.

Electrical continuity testing is essential. Use a calibrated multimeter to measure contact resistance under load. Sealed connectors may also undergo pressure or vacuum testing to confirm ingress protection remains within specification.

Document findings and track connector performance trends over time. Early detection of increased resistance or seal degradation informs proactive replacement before functional failure occurs.

Torque calibration for any integrated tightening screws or locking nuts must follow manufacturer-specified values. Over-torquing can deform seals, while under-torquing risks mechanical decoupling and loss of seal integrity.

During reassembly, ensure that wires seat fully within the grommet and that each terminal passes the tactile “click” test. Improper installation is a leading cause of moisture infiltration and premature connector failure.

Real world applications and case studies

In modern engine control units (ECUs), sealed multi-way connectors link sensor inputs and actuator outputs directly to the control module. Their IP68 rating ensures that coolant splash or tyre spray does not compromise engine management.

Heavy-duty ABS sensor lines employ weather pack connectors with secondary locks to prevent vibration-induced disengagement. These systems safeguard anti-lock braking performance in mining trucks and construction equipment.

Fuel injector harnesses often feature TE AMP Superseal series, combining four-pole sealing with integrated position assurance clips. This design minimises harness bulk around the cylinder head while maintaining robust environmental protection.

Custom aftermarket installations, such as auxiliary lighting and winch controls on off-road vehicles, frequently adopt Deutsch DT series connectors. Their rugged composite housings and gold-plated contacts deliver reliable operation under extreme load cycles.

Industry trends and future developments

As electric vehicles (EVs) proliferate, high-voltage connectors with advanced sealing capabilities are under development. These EV connectors require dielectric isolation, low partial discharge and fluid intrusion resistance up to IP69K.

Smart connectors with built-in temperature sensors and current monitoring telemetry will emerge, offering real-time diagnostics to vehicle control units. By integrating microchips within sealed housings, predictive maintenance algorithms can flag early signs of corrosion or contact fatigue.

Lightweight composite housing materials—such as glass-filled polyester blends—are gaining traction. They offer a balance of mechanical strength, chemical resistance and reduced weight compared to traditional nylon formulations.

Future connector designs may adopt tool-less terminal retention systems and captive seals, further streamlining assembly processes on lean manufacturing lines and reducing total production costs.

Frequently Asked Questions

Can sealed connectors be repaired if the seal fails?

In most cases, failed seals can be replaced by disassembling the connector housing and fitting new O-rings or gaskets supplied by the manufacturer. Complete re-sealing kits are often available to restore IP67 or IP68 integrity without replacing the entire assembly.

Are unsealed connectors ever used outdoors?

Unsealed connectors are typically reserved for indoor or sheltered applications. If outdoor use is unavoidable, designers may apply external heat-shrink tubing or conformal coatings over the mated interface, though these measures rarely match the reliability of purpose-built sealed connectors.

What is the difference between weather pack connectors and Deutsch DT series?

Weather pack connectors use individual sealing rings around each terminal and a tower-and-shroud plug arrangement, optimised for moderate environmental exposure. Deutsch DT series employ a full-face seal, stainless steel terminal cages and composite housings for enhanced durability under extreme vibration and immersion.

How often should I test sealing performance?

For vehicles operating in harsh conditions, seal testing every 12 months or 20,000 kilometres is recommended. Lighter-duty applications may extend intervals to coincide with major service milestones, such as every two years or 40,000 kilometres.

Q5: Do sealed connectors affect signal quality?

When properly designed, sealed connectors maintain consistent impedance and minimal insertion loss. High-frequency data lines may require specialised coaxial or twisted-pair sealed connectors to preserve signal integrity at automotive Ethernet or CAN-FD bus speeds.

Conclusion

Selecting between sealed and unsealed connector solutions demands careful evaluation of environmental exposure, electrical load and maintenance considerations. Automotive Electrical Connectors underpin everything from engine control to interior comfort features, and each application imposes its own demands on resilience, cost and serviceability. By understanding the trade-offs—whether through IP-rated waterproof electrical connectors, robust weather pack connectors or streamlined unsealed designs—engineers and technicians can ensure optimal performance across the vehicle ecosystem.

For those seeking end-to-end harness assembly and connector sourcing solutions, Quickbitz offers expert support in customising sealed systems, integrating advanced diagnostic features and ensuring compliance with the latest USCAR and ISO standards. Quickbitz specialises in delivering tailored connector assemblies that balance performance, cost and long-term reliability under the harshest operating conditions.

With the right component selection, proper installation and rigorous maintenance protocols, vehicle electrical systems can achieve unprecedented uptime and durability. Partnering with experienced suppliers like Quickbitz ensures that every connection, sealed or unsealed, meets the highest standards of quality and performance.
