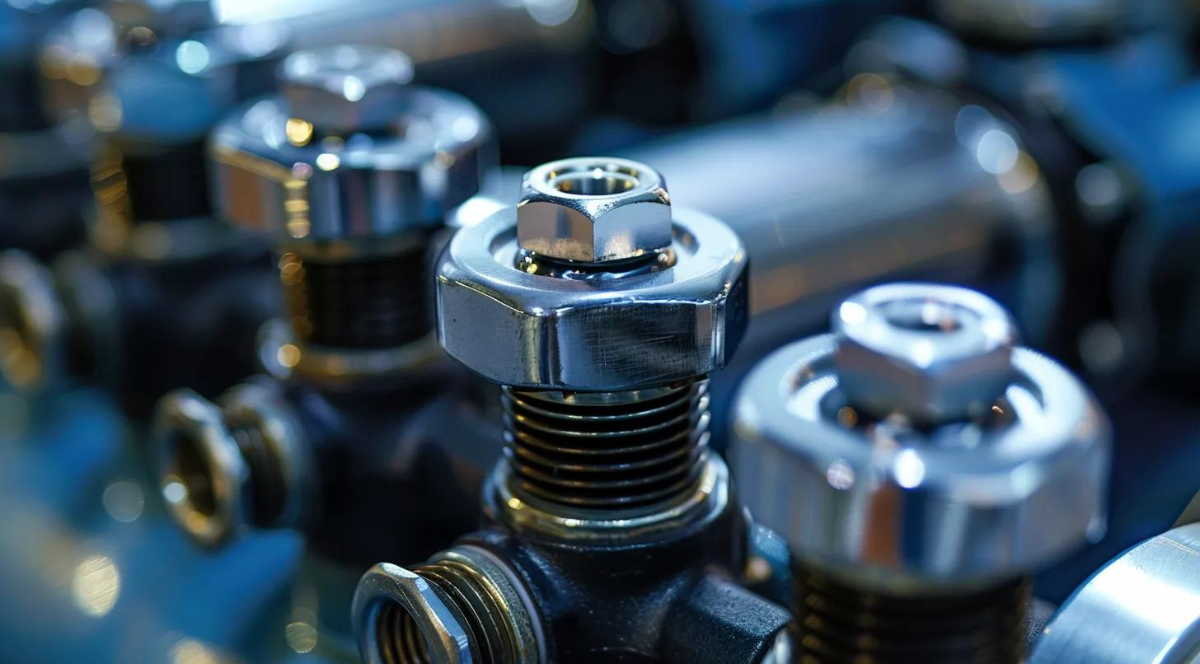

What Are Aluminium Fuel Tank Fittings and Why Do They Matter?

Aluminium fuel tank fittings are the connectors, adapters and bungs that route, seal and control fuel between tanks, lines, pumps and components. They’re small parts with a big job: getting fuel where it needs to go reliably, keeping weight low and resisting chemical attack — especially once you start tuning or running ethanol blends. This guide walks through the main fitting types, why aluminium is chosen, and practical advice for E85 compatibility, installation, inspection and troubleshooting so you can specify and fit parts that last. Many failures we see come from the wrong fitting style, incompatible seals, or poor routing — so we focus on preventing leaks, minimising corrosion and maintaining pressure and flow integrity. You’ll learn how AN fittings differ from weld-on bungs, when aluminium is preferable to stainless or plastic, how ethanol affects metals and seals, and step-by-step best practices for installation and inspection. We also include comparison tables and actionable checklists, plus a quick note on how Quickbitz supports parts and tuning for aluminium fuel hardware. First up: the main fitting types and how to choose between them.

What Are Aluminium Fuel Tank Fittings and Their Key Types?

Aluminium fuel tank fittings are purpose-made connectors, adapters and weld bungs that create sealed service points between tanks and fuel systems while keeping weight down and maintaining pressure integrity. Their job is simple: form a leak-free interface so pumps, filters and rails can do their work. The material choice affects welding, thread form and corrosion behaviour — and that determines long-term reliability. The common categories used in automotive and motorsport setups are AN-style hose ends, weld-on bungs and threaded hose adapters. Each suits specific pressures and use-cases, so knowing the differences helps you match threads, sealing methods and hose interfaces for OEM replacements, custom tanks or surge-tank builds.

This table compares the main fitting types, typical thread/size, pressure range and E85 suitability to help you pick the right part.

In short: AN fittings dominate performance applications for serviceability and flow, while weld-on bungs are essential for bespoke fabrications. Thread form and sealing method drive the right choice — the sections below unpack AN fittings and weld-on bungs in more detail so you can match parts to purpose.

What Are AN Fittings and How Are They Used in Fuel Systems?

AN fittings (Army–Navy standard) are precision-machined aluminium hose ends and adapters that use a 37° flare seating geometry and standard sizes such as AN-6, AN-8 and AN-10 (which map to hose inner diameters). Matched with braided PTFE or stainless-braided hose, AN fittings give repeatable sealing, high flow and good vibration resistance — which is why they’re the go-to in performance and motorsport fuel systems. You’ll commonly see them between pumps, filters, rails and surge tanks because they make servicing and component swaps straightforward. Key points: learn AN sizing, keep flare seats clean and undamaged, and choose the correct hose end style and clamp to avoid hairline leaks. Next we cover weld-on bungs for custom tanks.

While AN fittings seal very well, it’s worth understanding their leakage characteristics under real-world conditions when you’re building a high-performance system.

AN Flared Tube Connector Leakage Analysis

An analytical leakage-prediction method using a flow conductance parameter and the Meyer hardness index was compared with test results from flared tube connector evaluations. The model did not perfectly predict test outcomes, but predicted values were consistently conservative. Laboratory tests demonstrated a helium leakage capability down to .000001 atm·cc/sec for the flared connectors under controlled conditions.

Performance Analysis of Flared Connectors, 1971

What Are Weld-On Aluminium Bungs and Adapters?

Weld-on aluminium bungs are machined inserts welded into aluminium or compatible tank materials to create threaded or smooth ports for senders, pumps and filler necks — they’re a must for fuel cells, surge tanks and custom tanks. Correct installation means matching bung alloy to tank substrate or using the right filler metal, degreasing and cleaning mating surfaces, and achieving full weld penetration and a good back bead to avoid stress points and leaks. Bungs come in threaded sensor styles, hose spigots or AN-style ports; in custom builds they let you position pumps and ports for reliable gravity feed and surge control.

Why Is Aluminium the Preferred Material for Fuel Tank Fittings?

Aluminium is a popular choice because it’s light, easy to machine, and offers a useful strength-to-weight ratio with acceptable corrosion resistance when paired with the right seals and finishes. Compared with stainless or brass, aluminium lowers component mass and can help with thermal dissipation around pumps and lines — which in some layouts reduces vapour lock risk. Aluminium alloys machine cleanly to the tolerances AN seats and threads require, and with the right surface treatment and isolation from dissimilar metals, they perform well with petrol and many ethanol blends. The table below summarises trade-offs between aluminium, stainless steel and plastics for clarity.

This comparison highlights aluminium’s balance of weight and performance while noting when stainless or engineered plastics may be a better fit. Below we break aluminium’s benefits down further.

What Are the Core Benefits of Aluminium: Lightweight, Corrosion Resistance, and Strength?

Aluminium’s advantages are straightforward: lower density than steel means real weight savings across fittings and hardlines, which helps vehicle response and mass management on performance builds. Aluminium forms a passive oxide that offers baseline corrosion resistance, but actual protection depends on alloy, finish and avoiding galvanic contact with dissimilar metals. It also machines to tight tolerances — ideal for precise AN seats and thread forms — while remaining cost-effective for custom bungs and spacers. When you balance these attributes you can reduce mass without sacrificing long-term durability, provided sealing and isolation are done right.

How Does Aluminium Enhance Fuel System Performance and Durability?

Aluminium fittings help performance by allowing larger internal passages with less weight penalty than heavier materials — useful for sustained high-flow fueling on forced-induction or big engines. Correctly engineered aluminium joins resist vibration-induced loosening when fitted with the right AN- or NPT-style components and clamps, and they pair well with modern braided hoses and PTFE liners that manage pressure and chemical exposure. Aluminium’s thermal conductivity can also help dissipate heat near pumps and hoses, supporting more consistent fuel behaviour. But remember: longevity hinges on choosing the right seal materials and isolating incompatible metals.

How Do Aluminium Fuel Tank Fittings Support E85 Compatibility and High-Performance Fuel Systems?

Aluminium fittings will work with E85 and higher-ethanol blends when the whole fuel path — fittings, hose inner-liner, seals and clamps — is chosen for ethanol compatibility and resistance to swelling or degradation. Ethanol is more hygroscopic and can accelerate certain corrosion modes or attack unsuitable polymers, so pair aluminium fittings with PTFE-lined or proven E85-rated hoses and seals like fluorocarbon (FKM) or PTFE for long-term integrity. In high-performance systems where stable flow and pressure matter, AN fittings with E85-rated braided hose offer serviceability, predictable flow and acceptable longevity when inspected regularly. The next section explains the material-chemical considerations and gives practical seal and hose recommendations.

The wider adoption of fuels like E85 makes material compatibility more important — not just for durability but for emissions and long-term performance.

Aluminium Fuel Tank Market and Emission Regulations

The European fuel tank market is roughly 14 million units, of which about 70% use HDPE (high-density polyethylene) tanks, 17% use leaded (terne) steel, 3% use aluminised steel and the remainder are various metal or coated constructions. Future regulations — for example CARB’s LEV II standards — push lower hydrocarbon emissions, a requirement that is more challenging for plastics but feasible for metal tanks.

The Aluminium Fuel Tank, a Lightweight Solution, 2001

Why Are Aluminium Fittings Ideal for E85 and Other High-Performance Fuels?

Aluminium itself generally tolerates ethanol under normal service conditions if you use protective finishes, isolation measures and compatible seal materials. The bigger risk with E85 is seal and hose degradation rather than corrosion of the aluminium body in most setups. PTFE-lined hoses and fluorocarbon (FKM) or high-grade Viton-style O-rings resist ethanol-induced swelling and chemical attack much better than nitrile rubber, so pairing aluminium fittings with these seals reduces common failure modes. Practically: use AN fittings with PTFE-lined or E85-rated braided hose and select seals rated for ethanol to avoid leaks and premature O-ring failure. Fuel chemistry should drive component choices to keep systems reliable.

Thorough testing is required to validate compatibility for specific ethanol blends. SAE standards such as J1748 (polymeric materials) and J1747 (metallic materials) outline immersion and material tests used to assess compatibility. For example, immersion testing on a used Honda Accord 2.0-L (1996) fuel system components — regulator, fuel line and injector — can reveal corrosion, surface cracking and fatigue. Results from such studies help determine whether a blend is suitable for long-term use.

Material Compatibility and Fuel Properties for E10 and E85

Detailed studies are needed to relate ethanol blend properties to material compatibility of fuel system components. Immersion testing per SAE standards J1748 (polymeric) and J1747 (metallic) is commonly used to evaluate components like fuel regulators, lines and injectors. Visual inspection for corrosion, cracking and fatigue after testing helps determine feasibility of ethanol blends.

Material Compatibility And Fuel Properties For E10 And E85, 2008

What Role Do Aluminium Fittings Play in Racing and Custom Fuel Systems?

In racing and custom systems, aluminium fittings are chosen for serviceability, weight savings and compatibility with high-flow hose systems that make pit-side repairs and inspections faster. You’ll find them on surge tanks, external pumps, quick-disconnects and modular fuel cells where standardised threads and flare interfaces simplify swap-outs. Tuners also use aluminium for hardline runs and low-mass assemblies that hold pressure under dynamic loads — but best practice is to pair these parts with E85-compatible hoses and inspect them frequently. Proper installation and inspection cadence keep aluminium components reliable under competition stresses.

What Are the Best Practices for Installing Aluminium Fuel Tank Fittings?

Good installation starts with the right parts and continues through surface prep, correct thread engagement and controlled torque to avoid leaks and thread damage. Routing, clamping and post-installation leak testing are equally important. Poor installation is a common cause of fuel leaks and system failures; done correctly, it lowers crevice-corrosion risk and makes inspection and maintenance straightforward. Below is a concise checklist of critical tasks and a how-to table mapping tasks to tools and tolerances for shop use.

Follow this numbered installation checklist to avoid common mistakes and secure reliable seals between tanks, fittings and hoses.

1. Clean and dry mating surfaces: Remove oils, dirt and oxidation before assembly so seals and seat faces seal properly.

2. Use correct thread type and seal method: Match AN flare seats, NPT taper or O-ring fittings to the mating part and use the appropriate seals.

3. Torque and engagement control: Tighten to manufacturer torque specs and avoid over-stressing soft aluminium threads.

4. Clamp and support hoses: Respect hose bend radius, space clamps correctly to prevent chafing and secure clamps to structural points.

5. Leak test under pressure: Perform a fuel-safe pressure test after assembly and before filling to confirm seals.

Following these steps cuts installation-related failures and sets up a predictable inspection routine. The table below maps tools and tolerances for each task.

How Should Weld-On Aluminium Fittings Be Installed Correctly?

Welding aluminium bungs demands the right alloy pairing or filler, clean bare-metal surfaces and welding technique that avoids porosity and excessive heat on thin tank walls. Start with accurate fit-up and tack welds, then complete controlled full-penetration welds using short passes or backing bars to manage heat. After welding, verify seam integrity with dye-penetrant or pressure testing, remove spatter, and apply a fuel-compatible coating or seal where recommended to isolate the joint from dissimilar metals. Always pressure-test at operating levels before commissioning — good welding practice reduces porosity and stress risers that can cause seepage or fatigue under vibration.

What Are the Key Tips for Routing and Sealing Aluminium Fuel Lines?

Route fuel lines with bend radius, heat sources and vibration in mind, and use clamps and brackets that don’t create galvanic pairs with aluminium. Keep lines away from exhausts and hot blocks, use gradual bends to protect hose liners, and fit rubber-coated or nylon clamps at the recommended intervals to avoid chafing. For ethanol fuels, use PTFE-lined hoses and fluorocarbon O-rings, torque connections to spec and recheck after initial run-in to catch any slow leaks. Solid routing and sealing protect fittings from mechanical damage and extend seal life in aggressive fuel chemistries.

How Can You Maintain and Troubleshoot Aluminium Fuel Tank Fittings for Longevity?

Maintenance combines regular inspections, targeted cleaning and understanding common failure modes — crevice corrosion, galvanic attack and elastomer degradation — so you can act before leaks develop. Tailor an inspection plan to your use (road vs race) to spot hardened seals, hose liner issues, thread damage or dissimilar-metal corrosion early, allowing planned replacement instead of emergency repairs. The checklist below summarises symptoms, likely causes and corrective steps, followed by recommended inspection intervals for different use cases.

• Leak at fitting or hose end: Check seal condition and torque; replace O-rings with E85-compatible parts if they’re hardened or swollen.

• Corrosion near joints: Inspect for crevice or galvanic corrosion; add isolation or replace contacts with compatible materials.

• Hose liner swelling or collapse: Replace with PTFE-lined or certified E85-rated hose assemblies.

• Weld seam seepage: Use dye-penetrant and pressure checks; re-weld or replace the affected fitting if necessary.

Applying these troubleshooting steps restores serviceability and prevents small faults from becoming safety or performance risks.

What Are Common Issues with Aluminium Fittings and How to Prevent Corrosion?

Common issues include crevice corrosion at threads or welds, galvanic corrosion where aluminium contacts dissimilar metals, and seal failure from incompatible elastomers exposed to ethanol blends. Prevent these by isolating dissimilar metals with insulating washers or PTFE sleeves, using polymer-coated clamps, and applying appropriate surface treatments or anodising when suitable. Regularly replace seals with ethanol-rated materials and avoid long-term water ingress (drain systems after storage) to reduce electrochemical corrosion drivers. These measures keep aluminium fittings serviceable and limit replacements.

How Often Should Aluminium Fuel Fittings Be Inspected and Cleaned?

Inspection frequency depends on use: quarterly visual and torque checks are a sensible baseline for road cars, while race or track cars should be inspected before every event or session. Cleaning means removing surface contaminants, carefully flushing fuel passages where safe, and using fuel-compatible cleaning agents that won’t damage seals or liners. After cleaning, re-torque connections and perform a leak test at operating pressure. Keep a simple log of part changes and inspection dates to spot accelerated wear and replace fittings showing thread deterioration, pitting or persistent seepage rather than chasing repairs.

How Does Quickbitz Provide High-Quality Aluminium Fuel Tank Fittings and Expert Support?

Quickbitz is an Australian e‑commerce and technical resource specialising in EFI parts, performance hardware and dyno tuning. We stock pumps, rails, injectors, surge tanks, fuel cells, fittings and hoses — including performance-grade aluminium fittings and custom tube options to help you assemble a reliable fuel system. Beyond parts, Quickbitz offers technical guidance and services like injector flow‑matching and Melbourne dyno tuning so hardware changes are validated with calibration and testing. For builders and tuners, combining the right parts with tuning reduces risk and turns upgrades into predictable performance gains.

What Aluminium Fuel Fittings and Accessories Does Quickbitz Offer?

Our catalogue focuses on components you need to build robust aluminium-fitted systems: fuel fittings, hoses, custom aluminium tube, surge tanks and fuel cells. We stock performance-oriented brands commonly used by installers and tuners, helping you find AN fittings, hose ends and weld-on bungs for both street and race applications. Product listings are paired with technical resources to guide selection and compatibility, and we highlight parts that integrate with EFI upgrades and flow-matched injectors so you can assemble the right hardware before scheduling tuning or validation.

How Can Quickbitz’s Tuning Services Enhance Your Fuel System Performance?

Any hardware upgrade — larger pumps, different injectors or altered fuel hardware — should be validated with flow analysis and tuning to ensure the engine gets correct fuel under all conditions. Quickbitz offers flow-matching for injectors and Melbourne-based dyno tuning to support that validation. Flow-matching and dyno work align pump and injector behaviour with engine needs, reducing the risk of lean conditions or inconsistent fuelling when switching to E85 or higher-flow setups. By combining parts selection with practical testing and tuning, Quickbitz helps turn hardware changes into reliable on-road or on-track improvements.

Frequently Asked Questions

What are the signs that aluminium fuel fittings need to be replaced?

Look for visible corrosion, fuel weeps at connections, a persistent fuel smell or damaged threads. Also check hose and seal condition — swelling, hardening or cracks are a red flag. If you notice inconsistent fuel delivery or drivability issues, inspect fittings as part of your diagnosis; replace suspect fittings rather than patching them where integrity is questionable.

How can I ensure the longevity of my aluminium fuel fittings?

Regular maintenance is the answer: inspect for leaks and corrosion, clean fittings to remove contaminants, and use seals and hoses rated for your fuel (especially ethanol blends). Correct installation — proper torque, correct thread types and avoiding over-tightening — prevents a lot of damage. For race cars, increase inspection frequency and keep a simple replacement log to catch trends early.

What should I do if I find a leak in my fuel system?

Immediately stop fuel flow and relieve system pressure safely. Identify the leak source, then inspect seals, hose clamps and fitting torque. Replace damaged seals or fittings and retest with a pressure check before returning the vehicle to service. If the leak is at a weld or bung, perform dye-penetrant and pressure testing to determine whether rework or replacement is required.

Can aluminium fittings be used with all types of fuels?

Aluminium fittings are compatible with many fuels, including petrol and ethanol blends like E85, provided the entire fuel path — hoses, seals and clamps — is chosen for chemical compatibility. Some fuels demand specific seal materials or hose constructions, so confirm component ratings and manufacturer guidance before committing to a fuel type.

What are the best practices for cleaning aluminium fuel fittings?

Use fuel-compatible cleaners and soft brushes or cloths to remove grime and residue. Avoid abrasives that could damage sealing faces. After cleaning, inspect for wear and corrosion, re-torque fittings and perform a leak test. Don’t use aggressive solvents on seals or liners unless they’re rated for that exposure.

How do I choose the right size aluminium fittings for my application?

Match fittings to your flow and pressure needs and to the hose inner diameter. Refer to AN sizing (AN-6, AN-8, etc.) and confirm thread types (AN, NPT, BSPT) and sealing methods. Manufacturer specs and compatibility charts are useful — and if you’re unsure, check with your tuner or parts supplier to avoid costly mismatches.

What are the risks of using incompatible materials with aluminium fittings?

Using incompatible materials can accelerate galvanic corrosion when aluminium contacts dissimilar metals, and non-rated seals or hoses can swell, shrink or fail in ethanol blends. That leads to leaks, contamination and potential safety issues. Mitigate risk by confirming material compatibility and using isolation hardware or coatings where necessary.

Conclusion

Aluminium fuel tank fittings are a core component of reliable, high‑flow fuel systems. When specified and installed correctly — with the right seals, hoses and isolation techniques — they deliver a strong balance of weight savings, flow capacity and serviceability for both street and race use. Regular inspection, correct materials and proper welding/installation practices are the best defence against leaks and corrosion. Explore our range of premium aluminium fittings and accessories to build a fuel system you can trust, and get in touch if you want help matching parts to a tune or dyno session.
