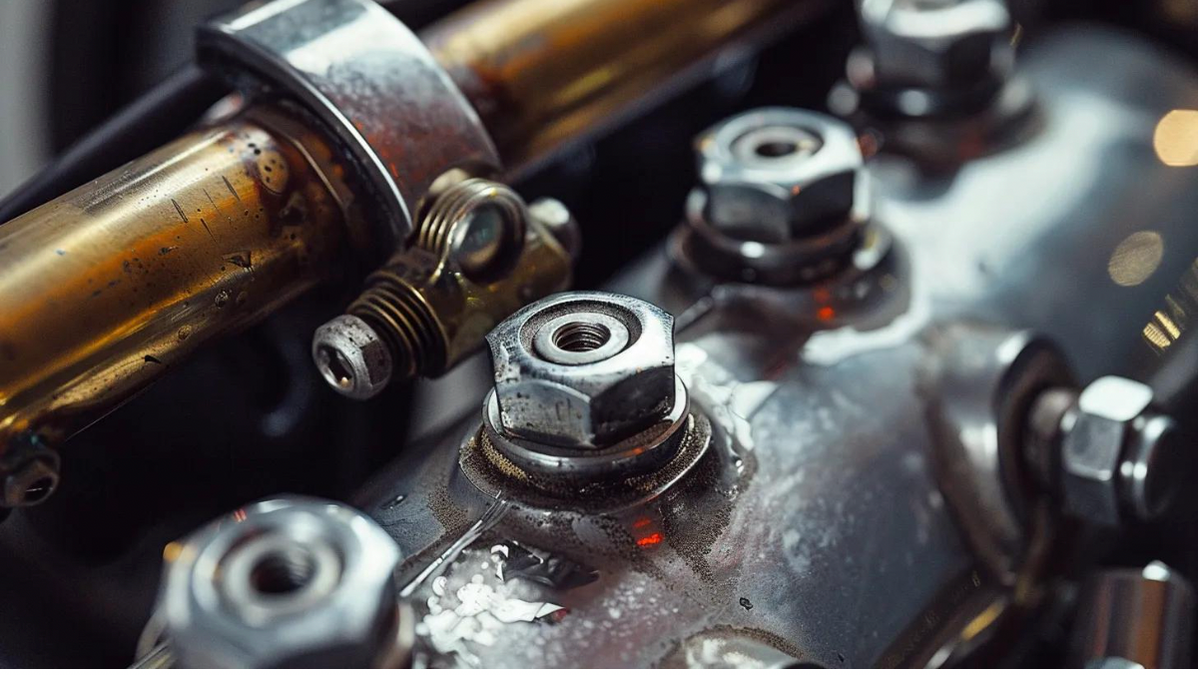

Common Types of Aluminium Fuel Tank Fittings Explained

Aluminium fuel tank fittings are the connection points—adapters, bungs, bulkheads and hose ends—that let pumps, senders, vents and external plumbing hook into a tank while keeping fuel and vapour where they belong. This guide walks through how those fittings seal, why alloys like 6061 and 5052 are commonly used, and how your choices affect flow, pressure and compatibility with modern fuels such as E85. Quickbitz is an Australian shop and technical resource for EFI, performance parts and dyno tuning — we’re referenced here to show real-world parts and service options. If you’re undecided between AN, NPT or welded solutions, this article gives straightforward decision steps, installation best practices and troubleshooting checks to reduce leaks and improve reliability. Read on for clear definitions, an AN size guide, welding safety and bung choices, hose-end comparisons, a selection checklist and proven installation and maintenance tips. The next section defines fittings and covers why aluminium is so widely used in street and race tanks.

What Are Aluminium Fuel Tank Fittings and Why Are They Essential?

Aluminium fuel tank fittings are purpose-made interfaces built into or attached to tanks to handle inlet, outlet, sender and vent connections while preventing leaks and contamination. They provide a mating surface—threaded, flared or welded—that forms either a mechanical metal seal or a seal aided by elastomers, so fuel can be moved under pressure and the vehicle’s motion without weeping or vapour ingress. The right fitting keeps the system delivering the flow and pressure you expect, simplifies service access for pumps and sensors, and reduces corrosion risk. Pick the wrong fitting and you can end up with leaks, restricted flow or premature material failure. The next subsection explains why aluminium alloys are the go-to choice and what the alloy trade-offs mean in practice.

What Makes Aluminium the Preferred Material for Fuel Tank Fittings?

Aluminium hits the sweet spot for many fuel-system parts: light, corrosion‑resistant and easy to machine or form. 6061 is favoured where strength and precision machining matter — think custom adapters and weld‑in pieces — while 5052 is often used for formed or spun components because it bends and resists corrosion well. Anodising adds an oxide layer that helps protect against fuel and environmental attack, and pairing compatible seal materials reduces galvanic risk when different metals meet. In short: use 6061 where strength and tight tolerances matter, and 5052 where corrosion resistance and forming are priorities. The next paragraph looks at how those material choices affect flow and sealing performance.

How Do Aluminium Fuel Tank Fittings Impact Automotive Fuel System Performance?

Fittings change internal diameter, add bends and introduce sealing geometry — all of which affect resistance and potential leak points. A small bulkhead or a mismatched hose barb can create a pressure drop, starving the pump or adding turbulence in the return line; sharp bends add cumulative head loss. The sealing method also matters: AN’s 37° flare and welded joints are less dependent on thread sealant and give more predictable pressure performance than tapered threads sealed with compound. Choosing fittings with matching internal bores and rated pressure limits keeps pumps and regulators operating in their intended range, improving reliability and reducing the chance of vapour lock. Next we deep‑dive into the AN standard and how it compares to other fittings.

What Are AN Fittings and How Do They Differ from Other Types?

AN fittings come from the old Army‑Navy standard and seal with a 37° flare and a straight thread socket, producing a metal‑to‑metal or flare‑to‑flare seat. Unlike tapered systems such as NPT — which rely on thread deformation and sealant — AN joints use mechanical seating (or O‑rings) for predictable torque, reusability and lower leak risk in performance applications. AN fittings are sized in dash numbers (AN‑3 through AN‑20) that correlate to hose ID and flow capacity, and they come in straight, 45° and 90° orientations to aid routing without kinking hoses. For installers, matching dash size to hose ID is the key to preserving flow; the next section gives a compact AN size chart and selection tips.

Different AN orientations and sizes suit different roles: AN‑3 or AN‑4 for small returns and vapour lines, AN‑6 and AN‑8 for common feed lines, and larger dash sizes for high‑flow race systems. Below is a practical AN size snapshot showing common dash designations, approximate thread OD and the typical hose inner diameter used in automotive fuel systems.

This quick chart helps you match hoses to flow targets — as a rule, avoid undersizing relative to pump inlet/outlet to prevent unnecessary restriction. The next subsection covers step‑by‑step AN installation tips for aluminium lines.

What Are the Common Types and Sizes of AN Fittings for Fuel Systems?

AN fittings are available as straight, 45° and 90° elbows, 180° unions, T‑ and Y‑blocks, bulkheads and hose‑end adapters so you can route lines cleanly without sharp bends. Dash sizing (AN‑3, AN‑4, AN‑6, AN‑8, etc.) maps to thread/hose size and is essential for maintaining flow; undersize and you risk throttling and cavitation, oversize and you add unnecessary complexity. Practical selection uses engine flow demand, pump capacity and hose ID to pick a dash that gives the required volume with minimal pressure drop — many street EFI setups use AN‑6 for the feed and AN‑8 for return on higher‑flow systems. When routing, pick orientations that preserve smooth flow and allow inspection access. The next subsection covers assembly and torque guidance for reliable AN joints.

How Do You Install AN Fittings on Aluminium Fuel Lines?

Installing AN fittings correctly comes down to clean surfaces, correct hose prep and controlled torque. For reusable AN hose ends on PTFE or braided lines: slide the socket over the hose, push the stem fully home and tighten the socket until the flare seats — always back up the fitting with a second wrench to avoid twisting and follow the manufacturer’s torque specs where provided. For hard aluminium tubing and 37° flares, use a calibrated flaring tool, deburr the tube, form a consistent flare and tighten to the correct torque — don’t over‑torque or you risk cracking the flare. After assembly, do a pressure or soap test to confirm there are no leaks before you commission the fuel system. Next we look at weld‑in bungs for custom tanks.

How Do Weld-In Bungs and Adapters Work in Aluminium Fuel Tanks?

Weld‑in bungs are machined inserts welded into the tank wall to create threaded attachment points for pumps, sensors, drains and vents without the need for through‑bolting. They typically feature a flange or boss that’s welded using aluminium‑appropriate methods, then machined or tapped to accept AN or NPT components. Properly installed, weld‑in bungs sit low-profile, minimise leak paths and give a strong, compact mounting. Careful placement and clearance planning are important to avoid clashes with pump hangers, baffles or internal hardware. The following subsection compares NPT and AN weld‑in bungs and how they seal.

Welding tanks calls for alloy‑aware techniques, inert‑gas purging when needed, and post‑weld inspection to confirm integrity; we cover safety and filler choice next.

What Are the Differences Between NPT and AN Weld-In Bungs?

NPT weld‑in bungs use tapered threads that seal with thread engagement plus a sealant, while AN weld‑in bungs use straight threads combined with a shoulder or O‑ring face to create a mechanical seal. NPT options are easy to source and can self‑seal with the correct compound, but they’re more sensitive to vibration and pressure cycling because the seal relies on thread deformation and sealant condition. AN bungs with a machined flange or O‑ring face give repeatable seals and are better for high‑pressure or frequently serviced connections. For pump hangers and sensor ports that need regular access, AN‑style bungs or flanged bulkheads are usually the preferred choice. The next subsection outlines welding best practices for aluminium tanks.

Below is a comparison table of common weld‑in bung types and where they’re typically used.

Choose based on required serviceability and the operating pressure of the circuit. The next section goes into welding considerations and safety for tank work.

What Are the Welding Considerations for Aluminium Fuel Tank Bungs?

Welding aluminium tanks and bungs requires attention to alloy compatibility, filler choice and strict vapour‑safety procedures. 6061 can be welded with appropriate filler but is heat‑sensitive and may need post‑weld treatment in structural situations; 5052 is easier to form and weld. Crucially, tanks must be fully drained, solvent‑cleaned and purged of vapours (or professionally backfilled) before any heat is applied — this is a non‑negotiable safety step and one reason many owners use specialists. After welding, do a pressure or vacuum leak check and inspect for porosity or cracks; if you’re unsure, consult a fuel‑system fabricator. Next we compare hose‑end fittings and their compatibility with modern hose materials.

What Are the Different Types of Fuel Hose End Fittings for Aluminium Fuel Lines?

Hose‑end fittings for aluminium systems fall into three main families: push‑lock (quick‑connect), crimp (permanent ferrule) and reusable (threaded socket) ends — each has different tooling needs, serviceability and pressure capabilities. Push‑lock fittings are fast and handy for low‑to‑medium pressure lines; crimp fittings deliver the highest working and burst pressures for braided or PTFE constructions and are standard in racing; reusable fittings sit between the two, offering serviceability but needing careful assembly to avoid blow‑off. Match the fitting family to the hose material — PTFE, CPE or rubber — to pick the right clamp or ferrule method. The next subsection has a concise comparison table.

Before that comparison, here is a compact table comparing Push‑Lock, Crimp and Reusable fittings on the attributes that matter for aluminium fuel lines.

Crimp fittings are the go‑to for high‑pressure braided lines; reusable fittings work well where disassembly is expected. Next we review the pros and cons of each fitting family and common applications.

How Do Push-Lock, Crimp, and Reusable Fuel Hose Fittings Compare?

Push‑lock fittings are quick and convenient but aren’t ideal under heavy vibration, high pressure or with alcohol fuels. Crimp fittings use a ferrule compressed over the hose and require a hydraulic crimper plus the correct mandrel — they offer the best working and burst ratings and are standard in race builds. Reusable fittings let you disassemble and re‑terminate in the field, which is handy for prototypes and serviceable systems, but they require careful assembly and inspection to avoid hose slip. When choosing, prioritise hose construction and the system’s working pressure to decide which family balances safety and serviceability for your build.

Which Fuel Hose End Fittings Are Compatible with PTFE and CPE Hoses?

PTFE‑lined hoses need ferrule‑style crimps or purpose‑built reusable fittings with mandrel support because the PTFE liner can’t be clamped reliably with simple barbs. Using the correct mandrel and crimp profile keeps the liner supported and leak‑free. CPE and rubber hoses can use crimp, reusable or push‑lock fittings depending on reinforcement and rated pressure, but for E85 you must use hoses and ferrules rated for ethanol compatibility and check seal materials. Avoid over‑compressing PTFE liners — follow manufacturer crimp specs and mandrel sizing. These compatibility rules feed directly into the selection checklist below.

How Do You Choose the Right Aluminium Fuel Tank Fittings for Your Application?

Picking the right fittings comes down to four core factors: fuel chemistry, system pressure and flow, expected serviceability, and installation constraints like space and baffling. First confirm whether the system will run E85 or petrol/diesel and pick hoses and seals rated accordingly. Then match dash sizes and hose IDs to your pump’s flow curve to avoid restriction, and decide if permanent crimps or reusable fittings better suit your maintenance plans. Measure ports and clearances, verify pressure ratings, and always run leak and flow tests before road use. If you want tested parts or design help, Quickbitz stocks fittings, hoses and weld‑on options and can advise on tuning and fabrication to match your goals.

Use this checklist to capture the four top decision factors when selecting fittings.

1. Fuel Type: Use seals and hoses rated for petrol, diesel or E85 to avoid chemical failure.

2. Pressure & Flow: Match dash size and hose ID to pump flow to prevent restriction or cavitation.

3. Serviceability: Choose crimp (permanent) or reusable (serviceable) fittings based on maintenance plans.

4. Installation Constraints: Select orientations and bung types that fit available clearance and baffle arrangements.

What Factors Affect Fitting Selection: Fuel Type, Pressure, and Vehicle Use?

Fuel chemistry and vehicle duty drive material and pressure choices: ethanol‑rich fuels need compatible elastomers and often stainless or anodised aluminium finishes to limit degradation, while high‑performance or race cars demand larger dash sizes and crimped assemblies for sustained high flow. Pressure — set by the pump and regulator — determines whether push‑lock fittings are acceptable or if crimped PTFE lines are mandatory. Daily drivers benefit from reusable fittings for easier repairs; competition cars often favour permanent crimps and welded bungs for highest integrity. Always factor in routing, vibration and maintenance intervals before finalising the spec.

How Does E85 Compatibility Influence Aluminium Fuel Fitting Choices?

E85’s high ethanol content accelerates swelling and chemical attack of incompatible elastomers and coatings, so specify hoses, seals and finishes that explicitly list E85 compatibility. Viton (FKM) seals and PTFE liners are common choices for ethanol resistance, and anodised aluminium or compatible alloys reduce corrosion risk when paired with suitable sealants. Avoid unsupported barbed connections with E85 — liner migration can occur. Build and pressure‑test with E85 or an approved test fluid to validate long‑term sealing before committing to permanent crimps, and plan shorter inspection and replacement intervals for ethanol systems.

What Are Best Practices for Installing and Maintaining Aluminium Fuel Tank Fittings?

Start with clean parts, the right tools and a disciplined assembly and testing routine: clean mating surfaces, deburr tube ends, use manufacturer‑specified mandrels for PTFE, and apply correct torque or crimp profiles. Always do a pressure (or soap) leak test after assembly and again after the first heat cycle; record torque and crimp specs so future servicing matches the original build. Regular maintenance includes visual checks for corrosion, abrasion and clamp security, and scheduled replacement of seals and hoses for ethanol‑exposed systems. For in‑tank pump hangers and welded bungs, we recommend professional fabrication and dyno validation to confirm flow and delivery under load — and don’t forget to purge vapour before welding.

If you need tested parts or hands‑on support, Quickbitz stocks fuel fittings, hoses and weld‑on options and offers tuning and fabrication advice to help validate your installation.

The following list summarises essential pre‑installation and testing steps to ensure a leak‑free, durable system.

• Drain and clean: Remove old fuel and vapour, then clean mating surfaces thoroughly.

• Inspect and measure: Verify thread sizes, hose ID, and clearance before assembly.

• Use correct tooling: Employ mandrels for PTFE, calibrated crimpers for ferrules, and torque wrenches for threaded assemblies.

How Can You Ensure Leak-Free Connections with Aluminium Fittings?

Follow this five‑step checklist: prepare clean surfaces; choose compatible seals and finishes; match hose ID to fitting and use the right tooling; tighten or crimp to manufacturer specs; then perform a pressure test and visual inspection. For threaded joints that use sealant, choose a fuel‑compatible compound and apply it evenly; for flare or AN connections, verify flare geometry and torque for proper metal‑to‑metal seating. After initial assembly, run a low‑pressure leak test and recheck after the first engine run to allow for thermal cycling — log any re‑torques or adjustments. Regular inspections, especially on E85 systems, catch material degradation early and prevent in‑service failures.

What Common Issues Occur with Aluminium Fuel Tank Fittings and How to Solve Them?

Common faults include leaks from cross‑threading or under‑torqued fittings, hose blow‑off from unsupported PTFE liners, corrosion at mixed‑metal interfaces, and weld porosity from poor purging. Troubleshoot by following problem → likely cause → fix: a persistent threaded leak often means damaged threads or a missing O‑ring — replace the fitting and sealing surface; a hose blow‑off usually means the wrong ferrule/crimp profile — reterminate with the correct mandrel and hydraulic crimper. When in doubt on pressure‑critical joints, replace and retest rather than patch. Preventive steps — periodic pressure checks, scheduled hose replacement and isolating dissimilar metals — greatly reduce these failures.

This completes a practical framework for selecting, installing and maintaining aluminium fuel tank fittings. Systematic measurement, correct tooling and compatibility checks protect both performance and safety. Quickbitz offers product categories and technical resources that align with these recommendations if you need tested components or fabrication help.

Frequently Asked Questions

What are the advantages of using AN fittings over NPT fittings?

AN fittings use a 37° flare or an O‑ring face to create a mechanical seal that’s predictable, reusable and resistant to vibration and pressure cycling — which is why they’re favoured in performance builds. NPT relies on tapered threads and sealant; it’s simple and common, but can be less reliable under repeated service or high dynamic loads. For serviceable, high‑pressure or frequently accessed connections, AN is usually the better choice.

How do I determine the right dash size for my fuel system?

Base your dash selection on the engine’s flow needs and the pump’s specifications. Each dash corresponds to a hose ID that controls flow capacity — AN‑6 is common for many feed lines, AN‑8 for higher flow. Match the dash to the pump inlet/outlet and the expected flow to avoid restrictions that cause cavitation or pressure drops. When in doubt, consult your pump’s data or a tuner's recommendation.

What maintenance practices should I follow for aluminium fuel tank fittings?

Inspect fittings and hoses regularly for signs of corrosion, abrasion or seepage. Check and record fitting torque, perform periodic pressure tests, and replace seals and hoses more frequently on ethanol systems. Keep a maintenance log so you can track component age and plan replacements before failures occur.

Can I use aluminium fittings with all types of fuel hoses?

Aluminium fittings work with many hose types, but compatibility depends on hose construction. PTFE hoses need ferrule crimps or special reusable fittings with mandrel support; CPE and rubber hoses can accept push‑lock, crimp or reusable fittings depending on their reinforcement and pressure rating. Always verify that hose and fitting materials are rated for the fuel type you plan to run, especially E85.

What safety precautions should I take when welding aluminium fuel tanks?

Never weld a tank that hasn’t been thoroughly drained, cleaned and purged of vapours. Use inert‑gas purging where appropriate, wear PPE and follow proper aluminium welding practices. After welding, inspect for porosity or cracks and perform a pressure test before returning the tank to service. If you’re unsure, have a specialist do the work.

How can I troubleshoot leaks in my fuel system?

Start with a visual inspection, then isolate the suspect area and run a pressure test. Common causes are cross‑threaded fittings, under‑torque, damaged seals or incorrect crimp profiles. Replace damaged components, reterminate hoses with the correct mandrels and crimp settings, and retest. Regular inspections and following proper assembly procedures prevent most leaks.

Conclusion

Knowing the differences between AN, NPT and welded fittings — and matching materials, hoses and assembly methods to your fuel type and duty cycle — is the quickest way to build a reliable, leak‑free fuel system. Correct sizing, proper tooling and routine inspection keep performance steady and reduce failure risk, especially with ethanol blends like E85. If you want tested parts, technical advice or fabrication support, browse our range or get in touch — Quickbitz offers expert guidance and quality components to suit street and race applications.
