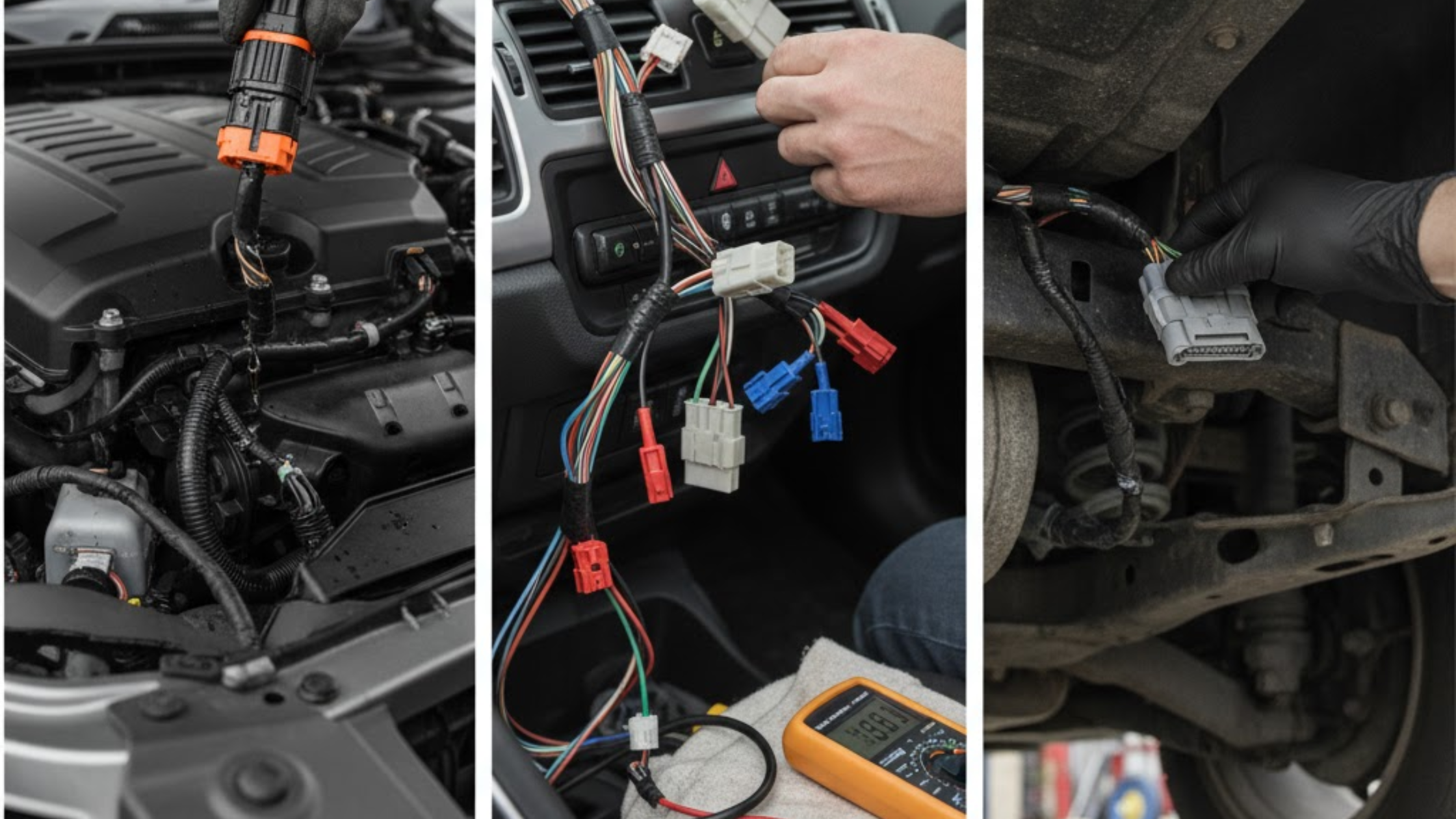

How to Choose the Right Connector for Specific Car Systems (Engine Bay

Selecting the right components for your vehicle's electrical system can feel like navigating a complex maze. With countless wires running to sensors, modules, and accessories, the humble connector is the critical link that ensures everything functions. Choosing the wrong piece can lead to intermittent faults, frustrating diagnostics, or even catastrophic failure. This is especially true when dealing with the diverse and demanding environments within a single vehicle. The selection of Car Electrical Connectors is not a one-size-fits-all-task; the component that works perfectly inside the dashboard would fail almost immediately in the engine bay. Understanding the specific job of each connector and the environment it must survive in is the key to building a reliable and long-lasting automotive electrical system.

What Are the Most Critical Factors When Choosing Automotive Connectors?

Before we dive into specific locations, it’s essential to understand the fundamental criteria that govern connector selection. The most common mistake is choosing a connector based on pin count or looks alone. In reality, a connector is a highly engineered component, and its suitability is determined by a balance of three core factors: electrical, environmental, and mechanical. When evaluating Car Electrical Connectors, these factors are not just suggestions, they are the technical requirements that ensure reliability. Ignoring them is a gamble against heat, moisture, and vibration, a gamble that rarely pays off in the long run.

Electrical Requirements: The Flow of Power and Data

The first and most basic function of a connector is to pass electrical current. You must match the connector's specifications to the circuit's demands. The primary consideration is the amperage rating, or "ampacity." This measures how much current a terminal can safely handle without overheating. Using an under-rated connector for a high-current application, like a radiator fan or a fuel pump, will generate excessive heat. This can melt the connector housing, increase resistance, and lead to voltage drop, which starves the component of power and can cause fires. Always check the manufacturer's datasheet for the amperage rating per pin, and be aware that this rating often decreases as the number of pins in use increases.

Voltage is another consideration, especially with the rise of electric and hybrid vehicles. While most traditional automotive circuits are low-voltage (12-14V), EV systems can operate at 400V to 800V. These high-voltage applications require connectors with specific insulation properties, increased spacing between pins (known as "creepage and clearance"), and safety interlocks to protect technicians. For data signals, such as CAN bus, a different set of properties becomes critical. These connectors must maintain signal integrity, which means they are often shielded to protect the low-voltage signals from electromagnetic interference (EMI) from nearby power wires or ignition components.

Environmental Dangers: The Battle Against the Elements

This is arguably the most critical factor when differentiating between vehicle systems. An automotive connector must survive its specific location. The primary environmental enemy is moisture. Water, coolant, road salt, and other fluids can "wick" into a connector through capillary action. Once inside, this moisture causes corrosion on the terminals. This corrosion creates a high-resistance point, leading to intermittent signals, false sensor readings, or complete circuit failure. To combat this, connectors are "sealed" using silicone gaskets, O-rings, and individual wire seals. These are assigned an Ingress Protection (IP) rating, such as IP67 or IP68, which defines their ability to protect against dust and water immersion.

Temperature is the second major environmental factor. A connector's plastic housing and rubber seals must withstand the ambient temperature of its location. An unsealed connector made from standard plastic that is perfectly happy inside the passenger compartment will become brittle and crack from the heat cycles in an engine bay. Likewise, seals can harden and fail in extreme cold. Chemical resistance is also vital, especially for components in the engine bay or on the chassis. These connectors must resist degradation from exposure to engine oil, gasoline, brake fluid, and harsh cleaning solvents.

Mechanical Stress: Surviving Vibration and Service

A vehicle is a high-vibration environment. Every bump in the road, every rumble from the engine, is transferred to the wiring. A connector must be able to maintain a secure connection under constant vibration. To achieve this, manufacturers have developed sophisticated locking mechanisms. You may see acronyms like TPA (Terminal Position Assurance) and CPA (Connector Position Assurance). A TPA is a secondary lock, often a small plastic piece, that snaps into place to ensure each individual pin is fully seated and cannot back out. A CPA is an external latch or slide that prevents the entire connector from vibrating loose from its mate.

Beyond vibration, you must consider the connector's "mating force" and "serviceability." Mating force is the physical effort required to push the two halves of the connector together. For a large, high-pin-count connector, this force can be very high, so some designs incorporate levers or "jack-screw" mechanisms to assist in mating and un-mating. Serviceability refers to whether the connector is designed to be taken apart. Many sealed connectors are "non-serviceable," meaning that once crimped and assembled, the pins cannot be removed. Other connector families, like the popular Deutsch series, are fully serviceable, allowing you to remove and replace individual pins using a special extraction tool. This can be a significant advantage during prototyping or for future repairs.

The Engine Bay: Connectors Built for Extremes

The engine bay is, without question, the most hostile environment for any electrical component. Here, connectors are subjected to a brutal combination of extreme heat, rapid temperature cycles, constant vibration, and exposure to a cocktail of corrosive fluids. A typical passenger compartment connector would fail in minutes. Therefore, connectors specified for this area, which includes the engine itself, the firewall, and near the transmission, must be engineered for maximum durability. This is where high-temperature plastics and robust sealing are not optional, they are mandatory.

When sourcing components for this area, the temperature rating is the first specification to check. Connectors must often withstand ambient temperatures exceeding 125°C (257°F). This rules out standard plastics, leading to the use of high-grade materials like glass-filled thermoplastics (such as PBT) or advanced polyamides. These materials maintain their structural integrity and locking force even when heat-soaked. Sealing is the next critical requirement. Connectors here must be rated to at least IP67 to protect against water from rain or engine washing, as well as oil, coolant, and fuel vapors. This is achieved through multi-part sealing systems, typically involving a main gasket for the connector-to-connector interface and individual wire seals for every cavity.

Vibration is the third major challenge. The engine's movement, especially on diesel or high-performance applications, can easily shake a poorly designed connector apart. Connectors like the Deutsch DT and DTM series are legendary in this space precisely because they address vibration so well. They feature a robust, positive-locking latch that audibly "clicks" when mated and will not vibrate loose. Furthermore, their design supports the wire seals properly to prevent them from loosening. These components are critical for systems that require absolute reliability, such as those controlling Waterman Fuel Pumps or modern ignition systems. Even the components they mount to, such as Coil Brackets, must be designed to minimize harmonic vibration that could be transferred to the connectors.

Popular choices for the engine bay include the aforementioned Deutsch DT/DTM/DTP series, which are serviceable and extremely robust. The AMP Superseal 1.5 series is another excellent choice, known for its compact design and excellent sealing. Sealed Metri-Pack 150 or 280 series connectors are also common OEM choices, offering a balance of performance and cost. When working in the engine bay, you must use these sealed, high-temperature connectors. Using a non-sealed connector here is a guaranteed recipe for a future breakdown.

The Interior: Prioritizing Space, Signals, and Safety

Once we move inside the vehicle's cabin, the environmental rules change completely. The passenger compartment is a relatively safe, dry, and temperature-controlled environment. Connectors here are protected from moisture, extreme heat, and chemicals. As a result, the primary design focus shifts from environmental sealing to other priorities: space optimization, high-density pin counts, and ease of assembly. The vast majority of connectors you will find under the dashboard, behind the instrument cluster, or inside the center console are "unsealed." Using a more expensive sealed connector here would be unnecessary.

With the explosion of in-car electronics, "connector real estate" is at a premium. A modern dashboard harness can contain thousands of individual circuits. This drives the need for compact, high-density connectors that can pack many pins into a small footprint. Families like the Molex Mini-Fit Jr. or the TE Connectivity MATE-N-LOK series are common. These unsealed connectors are designed for wire-to-wire or wire-to-board applications, allowing the main harness to plug directly into the back of the instrument cluster, the climate control module, or the infotainment system. Their designs often feature polarization ribs to prevent mis-mating and low-insertion-force pins to make assembly easier on the production line.

This area is also home to specialized data connectors. Your car's infotainment, navigation, and advanced driver-assistance systems (ADAS) rely on high-speed data. These circuits cannot use standard power connectors. Instead, you will find specialized, shielded connectors designed to handle high-frequency signals. FAKRA connectors, for example, are a type of coaxial connector used for the GPS antenna, satellite radio, and cellular signals. High-Speed Data (HSD) connectors are used for things like the high-resolution video feed from a backup camera. And, of course, USB connectors have become a standard feature for charging and data transfer.

Finally, connectors in the interior must be designed for ergonomics and safety. Many of these connectors are "blind-mated" by an assembly line worker who may be reaching deep under a dashboard. Therefore, they are designed with chamfered edges and strong keying features to guide them into place. Safety mechanisms like locking levers and audible clicks provide positive feedback that a secure connection has been made. This level of detail is critical for ensuring the reliability of everything from your airbags to your turn signals.

The Chassis and Exterior: Battling the Elements

The chassis and exterior of a vehicle represent a middle ground of environmental severity. While not as hot as the engine bay, these locations are arguably the wettest and dirtiest. This category includes everything mounted "under the car" or exposed to the elements, such as wheel speed sensors, ABS components, exterior lighting (headlights, taillights), and chassis-mounted sensors. These connectors face a constant barrage of water, road salt, mud, and gravel. Their primary enemy is water ingress and physical abrasion. Therefore, like the engine bay, robust sealing is a non-negotiable requirement.

All connectors used on the chassis or exterior must be sealed, with a minimum rating of IP67. However, some applications may even specify IP69K, which designates protection against high-pressure, high-temperature water jets, simulating a direct hit from a pressure washer. This level of sealing is critical for components like wheel speed sensors, which live in one of the worst environments on the vehicle, constantly being splashed and pelted with road debris. The connector housing itself must be made of a durable, impact-resistant plastic.

Vibration is also a significant concern, as these components are mounted to the unsprung or semi-sprung mass of the vehicle. A secure locking mechanism is essential. Unlike an interior connector that is rarely, if ever, touched, a chassis connector might need to be disconnected for service, such as replacing a brake caliper or a headlight bulb. This means they must be serviceable but also robust enough to be mated and un-mated multiple times without compromising the integrity of their seals. The classic Weather Pack connector series, one of the first truly effective sealed connectors, is a perfect example and still widely used today. Its "tower and shroud" design protects the individual wire seals and provides a strong, reliable connection.

When selecting connectors for this area, you must prioritize sealing and physical toughness above all else. AMP Superseal, Deutsch DT, and sealed Metri-Pack connectors are all suitable choices. It is also critical to properly secure the wiring harness near the connector. Using P-clamps or zip ties to secure the harness to the chassis prevents the wire from flopping around, which can put strain on the connector's seals and locking latch, leading to premature failure. This is a common failure point that is easily avoided with proper installation. For a more detailed breakdown of these connector types, our Guide to Car Electrical Connectors provides an excellent starting point.

Comparison of Connector Requirements by Vehicle Location

The Importance of Proper Tooling and Installation

Even the most expensive, highest-specification connector will fail if it is not installed correctly. The weak link in any automotive electrical system is almost always the human element. The vast majority of Car Electrical Connectors rely on a "crimp" connection, where a specialized tool is used to cold-form the connector's metal terminal onto the stripped copper wire. This a mechanical and electrical bond that, when done correctly, is stronger and more reliable than a solder joint in a high-vibration environment. Soldering can make the wire brittle at the edge of the joint, creating a potential failure point.

Using the wrong tool is the most common installation error. A "generic" parts-store crimper is not designed for the specific terminals you are using. Every connector family (Deutsch, Weather Pack, Metri-Pack) has a corresponding crimp tool designed to work with its specific terminal. These tools have a precise die that folds the terminal's "wings" around the wire strands and the seal in a specific, repeatable shape. Using the wrong tool will result in a "bad crimp," which can lead to high resistance, intermittent connections, or a terminal that pulls out of the housing.

The second part of the equation is assembly. You must ensure the wire is stripped to the correct length and that the terminal is fully seated within the connector housing. You should hear a small "click" as the terminal's locking tang engages. After seating the pin, give the wire a gentle tug to confirm it is locked in place. If your connector uses a TPA (Terminal Position Assurance) lock, you must insert it after all pins are seated. This secondary lock is a critical part of the system's reliability. Rushing this process or skipping the TPA is a common shortcut that leads to pins backing out of the connector over time. If you find yourself needing to modify or repair a harness, we strongly suggest you Contact us for advice on the proper tooling and procedures.

Conclusion: Matching the Part to the Purpose

The world of automotive wiring is far more complex than it first appears. As we have seen, there is no single "best" connector, only the "right" connector for a specific location and application. The engine bay demands high-temperature, sealed connectors that can resist chemicals and vibration. The vehicle interior prioritizes compact, high-pin-density unsealed connectors for power and data. The chassis and exterior require the absolute best in sealing and physical toughness to survive a life exposed to the elements.

By understanding the distinct environmental, electrical, and mechanical challenges of each system, you can make informed decisions. Always start your selection process by defining the location, the amperage, and the sealing requirements. Then, choose a connector family that meets those needs and, just as importantly, invest in the correct tooling to install it properly. This methodical approach is the key to building a safe, reliable, and professional-grade automotive electrical system. At Quick Bitz, we specialize in providing high-quality Car Electrical Connectors and the expertise to help you select the perfect component for your project, ensuring your connections last a lifetime.

Frequently Asked Questions (FAQs)

What is the difference between sealed and unsealed automotive connectors?

A sealed connector is designed to be waterproof and dust-proof. It uses rubber seals, gaskets, or O-rings to protect the electrical terminals from moisture, dirt, and chemicals. These are essential for use in the engine bay, on the chassis, or in any exterior location. An unsealed connector offers no protection from the elements and is only suitable for use in dry, protected environments, such as inside the passenger compartment or trunk.

What does an IP rating mean for car connectors?

IP stands for "Ingress Protection." It's a standardized system used to rate how well an enclosure protects against solid objects (like dust) and liquids (like water). The rating is given as "IP" followed by two numbers. The first number (0-6) rates protection against solids, and the second number (0-9K) rates protection against liquids. A common high-quality rating for a sealed automotive connector is IP67, which means it is "dust-tight" (6) and protected against "immersion in water up to 1 meter" (7).

Can I use solder instead of crimping for automotive connectors?

While it's technically possible, soldering is strongly discouraged for most automotive connector pins, especially in high-vibration areas. A crimped connection, when made with the proper tool, creates a gas-tight, mechanical bond that is extremely durable and flexible. Soldering wicks up the wire, making the wire stiff and brittle just outside the terminal. This creates a perfect stress point that can fracture and fail under normal vehicle vibration.

What are TPA and CPA on electrical connectors?

TPA stands for Terminal Position Assurance. It is typically a small plastic piece that snaps into the connector after the pins are inserted. Its job is to ensure that all terminals are fully seated and to provide a secondary lock to prevent them from backing out. CPA stands for Connector Position Assurance. This is a secondary locking device on the outside of the connector housing that prevents the two halves of the connector from accidentally unlatching and separating due to vibration.
