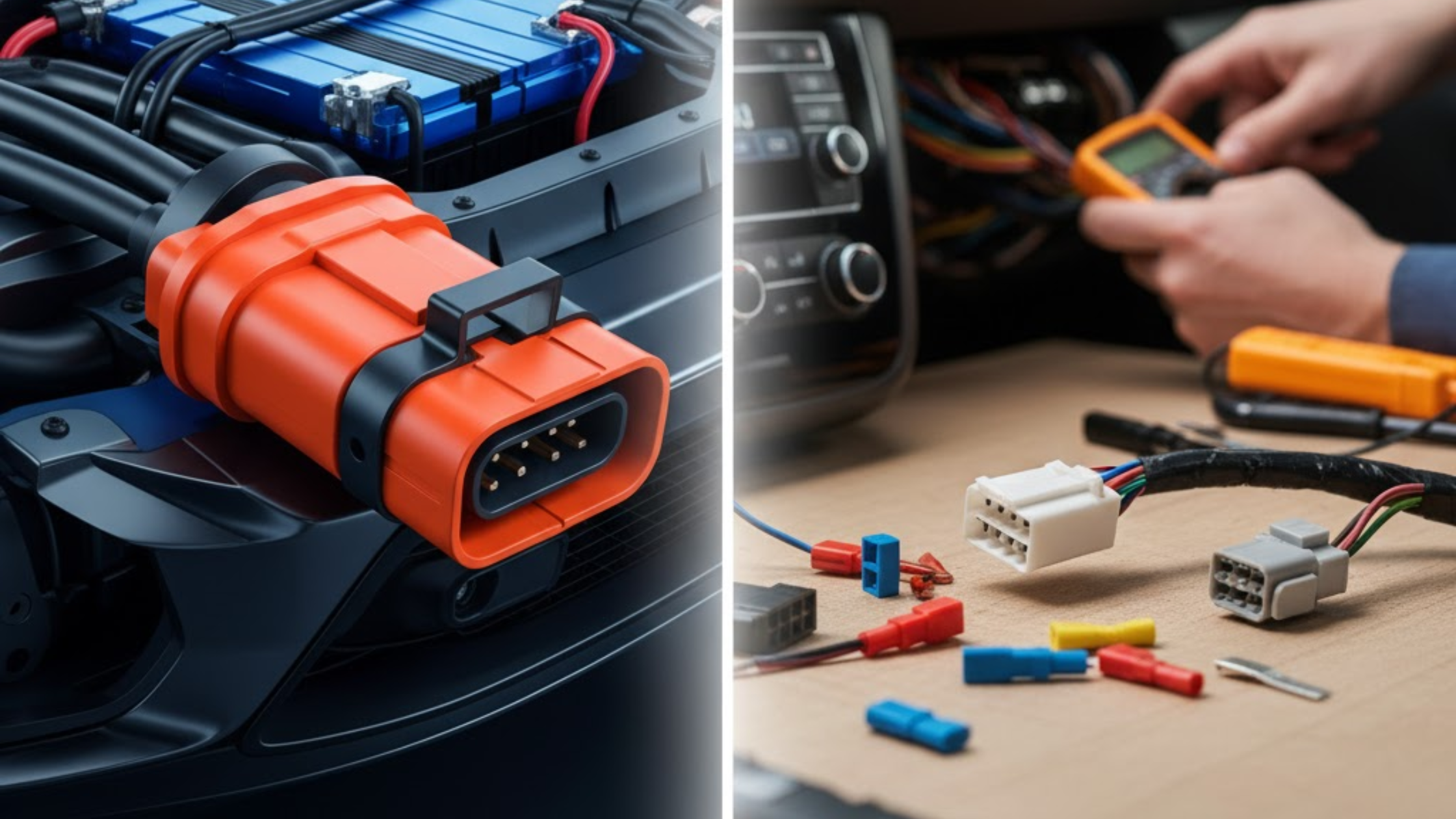

High-Voltage EV Connectors vs. Low-Voltage Connectors

Step into a modern vehicle, and you're stepping into a sophisticated network on wheels. The days of simple wiring for headlights and a radio are long gone. Today's automobiles, and especially electric vehicles (EVs), are brimming with complex systems that handle everything from real-time navigation and climate control to managing a massive, high-powered battery. At the heart of this revolution are the thousands of car electrical connectors that act as the critical junctions for power and data. Without them, nothing works. But not all connectors are created equal. A vast and critical distinction exists between the high-voltage giants and their low-voltage counterparts, a difference that is fundamental to the function, safety, and performance of every EV on the road.

What Are the Core Differences Between High-Voltage and Low-Voltage Connectors in a Car?

At first glance, a connector is simply a plug. However, in the context of an automobile, the difference between high-voltage (HV) and low-voltage (LV) connectors is as stark as the difference between a main power line and a USB cable. The core differences lie in their voltage and current ratings, physical design, safety features, and the specific jobs they are engineered to perform. Low-voltage systems typically operate at 12V or 48V and manage the car's auxiliary functions. In contrast, high-voltage systems in EVs handle 400V, 800V, or even more, managing the immense power required for the electric powertrain. This massive gap in electrical potential dictates every single design choice, from the materials used to the mandatory safety protocols that protect both the vehicle and its occupants.

Understanding the Low-Voltage System: The Vehicle's Nervous System

The low-voltage system is the vehicle's traditional electrical backbone, the familiar 12-volt architecture that has powered cars for decades. Even in a cutting-edge electric vehicle, this system remains indispensable. It is powered by a 12V auxiliary battery, which is itself charged by the main high-voltage battery via a component called a DC-DC converter. The low-voltage system is responsible for powering everything that doesn't directly move the car. This includes the entire sensory and interactive experience of the driver.

When you turn on your headlights, adjust your power seats, or use the windshield wipers, you are engaging the low-voltage circuit. This system powers the infotainment screen, all interior and exterior lighting, the horn, the power windows, and the myriad of sensors that control everything from anti-lock brakes (ABS) to the airbag system. The car electrical connectors in this system are designed for these lower power demands. They are typically smaller, lighter, and made from plastics that, while durable, are not engineered to handle extreme voltages.

These LV connectors focus on different priorities. Instead of managing massive thermal loads, their challenge is often signal integrity. Many LV connectors are data buses, like the CAN (Controller Area Network) bus, which transmits millions of data points per second between different control units (ECUs). For these connectors, shielding against electromagnetic interference (EMI) is important, but not to the same extreme as their high-voltage cousins. They must ensure a clean, reliable signal for a sensor to report to the ECU, which then makes a critical decision. You can learn more about the fundamentals in this Guide to Car Electrical Connectors. They are the intricate, delicate pathways of the car's nervous system.

The Rise of High-Voltage Systems in Electric Vehicles

The high-voltage system is the powertrain. This is the new architecture that defines the electric vehicle and is the source of its incredible performance and efficiency. This system operates at dangerously high voltages, typically starting at 400V in many standard EVs and pushing to 800V or 900V in high-performance models to enable ultra-fast charging. The components in this circuit include the main HV battery pack, the onboard charger (OBC), the inverter (which converts DC battery power to AC for the motor), the electric motor(s), the DC-DC converter (to charge the 12V battery), and the climate system's compressor.

Connecting these power-hungry components requires a completely different class of connector. High-voltage EV connectors are robust, large, and built with an unwavering focus on safety and thermal management. They must be capable of handling hundreds of amps of continuous current without melting, arcing, or failing. The electric vehicle wiring associated with these connectors is thick, heavy, and famously color-coded in bright orange (often RAL 2003) as a universal warning to technicians.

The design challenges for these connectors are immense. They must create a secure, low-resistance connection to prevent energy loss and heat generation. They must be completely sealed from the elements, achieving high IP ratings (like IP67 or IP6K9K) to prevent water and dust ingress, which could lead to a catastrophic short circuit. Furthermore, they must be shielded to prevent the massive electrical currents from radiating electromagnetic interference that could scramble the low-voltage system's delicate data signals.

Key Distinctions: A Side-by-Side Look

While both HV and LV connectors serve the same basic purpose of joining two wires, their design philosophies and engineering specifications are worlds apart. It's a tale of two extremes: the finesse and complexity of the low-voltage data network versus the raw, brute-force power management of the high-voltage powertrain. Each is a specialized solution for a specialized problem.

Voltage and Current Ratings

The most obvious difference is the electrical load. An LV connector for a dome light might see 12 volts and less than one amp of current. An HV connector for the main battery-to-inverter line will routinely handle 400 volts and 300 amps or more. This is a power difference of staggering proportions. This dictates the physical size of the connector's pins, or terminals. High-current terminals are thick pieces of highly conductive copper alloy, designed to maximize surface contact and minimize electrical resistance. Low-voltage terminals can be tiny, delicate pins, sometimes plated in gold to ensure signal integrity but not designed for any significant power load.

Design and Materials

To handle the voltage, HV connectors require extensive insulation. The plastics used are highly specialized, often advanced polyamides (PA) or polyphthalimides (PPA) like BASF's Ultramid® or Avient's Edgetek™. These materials are chosen for their high dielectric strength (resistance to electrical breakdown), thermal stability (they won't melt or warp), and resistance to harsh automotive fluids. The distance between conductive elements, known as creepage and clearance, is meticulously calculated and engineered to be much larger in HV connectors to prevent electricity from arcing through the air or across a surface. LV connectors, by contrast, can be densely packed with many small pins very close to one another.

Safety Features (The Orange Code)

Safety is the single most important design driver for high-voltage connectors. Because 400V or 800V can be instantly lethal, multiple redundant safety systems are built directly into the connectors. The most prominent is the bright orange color, a visual warning that screams "danger, high voltage." The most critical internal safety feature is the High-Voltage Interlock Loop (HVIL). This is a low-voltage, "sense" circuit that runs through every single HV connector in the vehicle. This circuit must be complete before the high-voltage power can be activated. When a technician goes to unplug an HV connector, the HVIL pins are designed to disconnect first. This instantly signals the Battery Management System (BMS) to cut power from the main relay, safely de-energizing the system before the main power pins are separated. This prevents deadly arcing and ensures the connector is safe to handle.

Size and Cost

As a direct result of the materials, engineering, and safety features, high-voltage connectors are significantly larger, heavier, and more expensive than their low-voltage counterparts. An LV connector might cost pennies, while a single, complex, shielded HV connector can cost many, many dollars. This cost is justified by the extreme performance and safety they provide. They are complex assemblies of specialized plastics, precision-machined terminals, rubber seals, and EMI shielding.

All vehicle systems, whether new or old, rely on highly specialized components for delivering their motive force. In a traditional internal combustion engine, the entire system is reliant on the precise and reliable delivery of fuel, often managed by components like Waterman Fuel Pumps that are engineered for fluid dynamics and pressure. In an electric vehicle, that same critical-delivery function is handled by the high-voltage electrical system. The HV connector is the new fuel line, and its ability to reliably and safely deliver massive quantities of energy, or "electron fuel," is just as critical as a fuel pump's ability to deliver gasoline.

Why You Can't Mix and Match: The Critical Role of Car Electrical Connectors

Using the wrong connector in an automotive application is not just a matter of incompatibility; it's a recipe for catastrophic failure. The extreme operating environments and safety-critical nature of vehicles demand that every component is perfectly suited for its task. This is why the specialized field of car electrical connectors is so vital to modern automotive engineering.

If you were to (or even could) use a low-voltage connector in a high-voltage application, it would fail instantly and spectacularly. The 400+ volts would arc across the small, closely-packed pins, short-circuiting the system, melting the plastic housing, and creating an extreme fire hazard. The connector has none of the required insulation, creepage distance, or thermal capacity to handle the load. It would be like trying to put out a five-alarm fire with a small spray bottle.

Conversely, using a high-voltage connector for a low-voltage signal is not dangerous, but it is impractical and nonsensical. It would be a massive waste of space, weight, and money. The robust, oversized pins are not designed for delicate data signals, and the cost would be thousands of times higher than necessary. It's the equivalent of using a fire hose to water a single houseplant.

The integrity of the electrical system goes beyond just the plug and socket. The entire assembly must be robust and resistant to the harsh vibrations and temperature cycles of a vehicle. Connectors must be securely mounted to the components they serve, and the wiring harnesses must be properly routed and secured. This is where components like Coil Brackets and other mounting hardware play a crucial, often-overlooked role. A vibrating or loose component puts mechanical stress on the connector and the wiring, which can lead to intermittent faults or a complete failure of the connection over time. A secure bracket ensures the connector's integrity is maintained for the life of the vehicle.

The Future of EV Connectors and Vehicle Wiring

The field of electric vehicle connectors is anything but static. As EV technology accelerates, the demands on connectors are growing, pushing engineers to innovate at a rapid pace. The industry-wide shift to 800V architectures, and even higher, is the primary driver. Higher voltage allows for lower current to deliver the same amount of power (Power = Voltage x Current), which enables the use of thinner, lighter, and cheaper wiring harnesses. However, it also places even more extreme demands on the connectors for insulation and arc prevention.

We are also seeing a trend towards miniaturization. Even as voltage ratings climb, automakers are in a constant battle to reduce weight and package components into tighter spaces. This has led to the development of new, advanced materials and more compact connector designs that can safely handle high power in a smaller footprint. This includes the integration of advanced thermal management, such as liquid cooling, for charging connectors that must handle 500 amps or more during an ultra-fast charging session.

Smart connectors are another emerging frontier. Future car electrical connectors may have integrated sensors that can monitor their own temperature, humidity, and connection integrity in real time. This data could be fed back to the vehicle's central computer, allowing for predictive maintenance. The system could warn you that a connector is beginning to fail before it leaves you stranded. This integration of data and power is the next logical step in the evolution of the connected vehicle.

A Comparative Look: HV vs. LV Connectors

To put the differences into a clear perspective, here is a simple comparison of the two connector philosophies.

Conclusion: The Right Connection for the Right Job

The modern vehicle is a masterpiece of integration, a symphony of systems working in perfect harmony. The invisible heroes of this symphony are the thousands of car electrical connectors that tirelessly do their job. The distinction between high-voltage and low-voltage connectors is not just a technical detail; it is a fundamental design principle that enables the entire EV revolution. The orange high-voltage connectors are the secure, protected superhighways for motive power, while the low-voltage connectors are the intricate city streets of data and auxiliary function.

Understanding this difference is key to appreciating the engineering marvel that is the modern electric vehicle. Each connector is a purpose-built solution, precision-engineered for safety, reliability, and performance. At Quick Bitz, we specialize in understanding every component of the vehicle's complex electrical architecture. We know that from the smallest sensor plug to the main battery terminal, having the right, high-quality connection is not just important, it's everything. If you are developing, repairing, or innovating in the automotive space, Contact us to see how our expertise can help power your success.

Frequently Asked Questions About Vehicle Electrical Connectors

What is considered high voltage in an EV?

In the automotive industry, anything above 60V DC is generally considered high voltage. Most modern electric vehicles operate at 400V, while newer high-performance and commercial EVs are adopting 800V or 900V systems to improve charging speeds and efficiency.

Why are EV high-voltage connectors and cables orange?

The bright orange color (specifically, RAL 2003) is a mandated safety standard. It serves as an immediate visual warning to technicians, first responders, and anyone working on the vehicle that they are dealing with a high-voltage component that carries a lethal level of electrical potential.

What is a High-Voltage Interlock Loop (HVIL)?

The HVIL is a critical, low-voltage safety circuit that runs through all high-voltage components and connectors. This loop must be complete for the high-voltage system to be energized. If any HV connector is unlatched, the HVIL circuit breaks first, instantly signaling the battery to shut off the high-voltage power before the main power pins are disconnected, preventing dangerous electrical arcing.

Can you get a shock from the 12V low-voltage system?

The 12-volt system in a car is considered "safe" voltage and will not deliver a harmful shock to a person. Your skin has enough resistance to prevent the 12V from pushing any significant current through your body. However, it can still be dangerous if short-circuited (e.g., with a metal tool), as it can produce a large current, creating sparks, melting tools, and potentially starting a fire.

What are the main components of an EV high-voltage system?

The primary components of an EV's high-voltage system include the main rechargeable battery pack, the inverter (converts DC to AC for the motor), the electric motor(s), the Onboard Charger (OBC - converts AC from your home to DC for the battery), a DC-DC converter (steps down high voltage to 12V for the low-voltage system), and the high-voltage cabin heater and A/C compressor.
