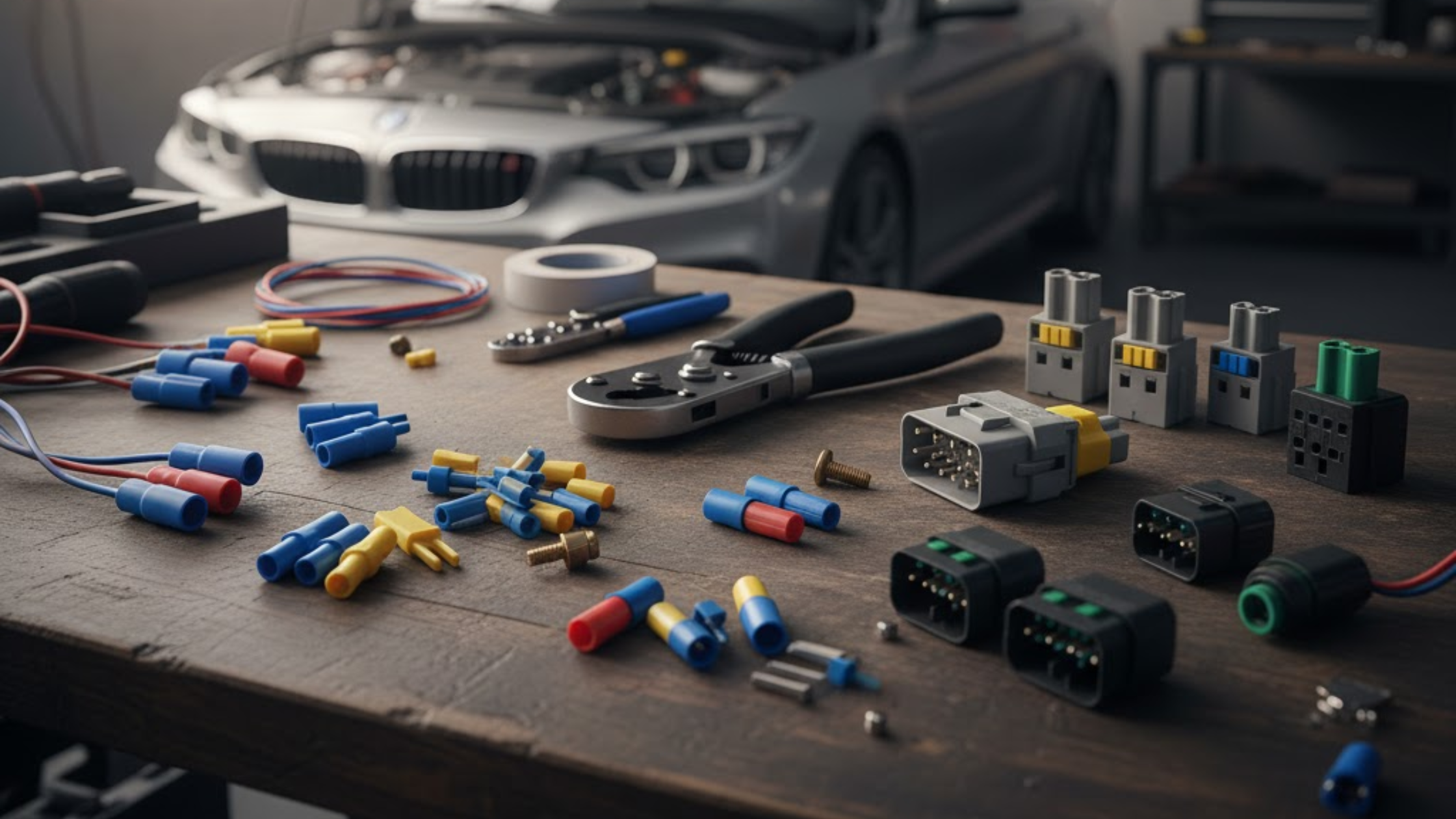

Different Types of Automotive Connectors (Butt, Spade, Bullet, Deutsch

Dive under the hood of any modern vehicle, and you'll find a bewilderingly complex network of wires, sensors, and modules. This intricate web is the vehicle's nervous system, carrying power and data to everything from the engine control unit (ECU) to the power windows. But what keeps this nervous system from short-circuiting into chaos? The answer lies in the thousands of small, often-overlooked components that form the junctions of this network. We are talking about the vast and varied world of Car Electrical Connectors. Understanding these components is not just for master technicians; it's essential for anyone looking to perform a reliable repair, install an accessory, or simply diagnose a pesky electrical gremlin. This guide will demystify the most common types of automotive connectors, from the simple butt splice to the heavy-duty Deutsch, ensuring you have the knowledge to choose the right part for the right job.

What are the most important factors in choosing an automotive connector?

Before diving into the specific types, it's crucial to understand how to select the right one. Choosing an automotive connector isn't just about what fits, it's about what will last. The first and most critical factor is the environment. Will the connector be inside the dry, comfortable cabin, or will it be in the engine bay, exposed to extreme heat, vibration, and contaminants like oil and fuel? A connector under the vehicle's body must be completely waterproof, while one behind the dashboard might prioritize size.

The second factor is the electrical load, defined by amperage (current). A connector for a tiny LED light has vastly different requirements than one for a high-torque radiator fan. Using an undersized connector will cause it to overheat, melt, and become a significant fire hazard. Always match the connector's amp rating to the wire gauge and the circuit's demand.

Finally, consider the application. Does this connection need to be permanent, like a wire repair, or does it need to be serviceable, allowing for easy disconnection and reconnection? A spade terminal on a speaker is designed for easy service, while a butt connector is meant to be a one-time, permanent splice. These considerations of environment, load, and serviceability will guide your decision long before you ever pick up a crimping tool.

The Fundamental Role of Car Electrical Connectors in Modern Vehicles

The main H2 with the focus keyword. Car Electrical Connectors are the lifelines of your vehicle's electrical system. In an era where a car can have over 70 microprocessors and miles of wiring, the reliability of each connection point is paramount. A single faulty connector, compromised by corrosion or vibration, can lead to intermittent failures that are a nightmare to diagnose. These "phantom" problems, like a dashboard that flickers or an engine that stalls for no apparent reason, can often be traced back to one specific pin not making proper contact.

Think beyond simple power and ground. Modern vehicles rely on sophisticated data networks, like the CAN bus (Controller Area Network), to allow modules to communicate. On a CAN bus, two wires carry high-speed data between the ECU, transmission controller, ABS module, and more. A poor connection here, perhaps with high resistance from corrosion, doesn't just stop a light from working; it can corrupt data packets and bring the entire vehicle network to a halt.

This is why OEM (Original Equipment Manufacturer) engineers spend so much time designing and specifying proprietary, multi-pin, sealed connectors. They are building a system designed to last for hundreds of thousands of miles in the harshest conditions. For the rest of us working on these vehicles, from DIY enthusiasts to professional technicians, understanding the different connector types available on the aftermarket is key to maintaining that same level of reliability.

Simple and Effective: Butt Connectors

The simplest of all automotive connectors is the butt connector, also known as a butt splice. Its sole purpose is to join two wires end-to-end in a straight line, creating a single, longer wire. It is essentially a metal tube, typically made of tin-plated copper, which may be covered by an insulating sleeve. Wires are inserted into each end and then mechanically crimped, a process that deforms the tube to create a cold weld with the wire strands.

Types of Butt Connectors

Butt connectors come in three main varieties, and the difference is all about the insulation. The most basic is the non-insulated connector, which is just the metal tube. These are rarely used in automotive applications without being covered by separate heat-shrink tubing, as an exposed connection is a prime spot for a short circuit.

The second type is the vinyl-insulated connector. These are the classic red, blue, and yellow connectors found in every hardware store. The color-coding is critical: red is for small 22-18 gauge (AWG) wires, blue is for medium 16-14 gauge wires, and yellow is for larger 12-10 gauge wires. While the vinyl provides electrical insulation, it offers zero protection against moisture, which can wick into the crimp and corrode the wire from the inside out.

The best choice for any automotive repair is the heat-shrink butt connector. This type features an adhesive-lined polyolefin (heat shrink) sleeve that extends over the metal tube. After crimping the connector just like any other, you use a heat gun to shrink the tubing. As it shrinks, it conforms tightly to the wire, and the inner adhesive lining melts, creating a completely waterproof and strain-resistant seal. This is the only type of butt connector that should be used in an engine bay or anywhere else it might be exposed to the elements.

Pros, Cons, and Applications

The primary advantage of butt connectors is their simplicity and low cost. They create a strong, permanent, and compact connection, making them ideal for repairing a damaged wire in a harness or extending a wire that was cut too short. They are a staple of car audio installation for joining the aftermarket stereo harness to the vehicle's factory wiring.

The main disadvantage is their permanence. A butt-spliced connection cannot be disconnected without cutting the wire and destroying the connector. They are also highly dependent on the quality of the crimp. A poor crimp with the wrong tool (like pliers) will result in a connection with high resistance or one that can be easily pulled apart. For this reason, they should only be used in protected areas and installed with a proper ratcheting crimp tool.

Quick and Versatile: Spade Connectors

Where the butt connector creates a permanent joint, the spade connector is the classic choice for a connection that needs to be easily serviceable. Also known as blade terminals or quick-disconnects, spade connectors come in a two-part male and female system. The male, or "tab," is a flat blade, while the female, or "receptacle," is a rolled metal housing that the blade slides into, held in place by friction.

Variations of Spade Terminals

Like butt connectors, spade terminals come in non-insulated, vinyl-insulated, and nylon-insulated varieties. The insulation on the female receptacle is particularly important, as it prevents the metal body from touching a nearby ground and causing a short. The most common size you'll encounter in automotive work is the 0.250-inch blade, but smaller 0.187-inch and 0.110-inch versions are also used for smaller components.

You may also find "flag" or right-angle spade connectors. These are female receptacles where the wire crimps at a 90-degree angle to the connection, making them invaluable for fitting onto terminals in tight spaces, such as the back of a switch mounted in a dashboard. Some variations also include a locking tab that "clicks" into a hole on the male blade, providing a more secure connection that is less likely to vibrate loose.

Pros, Cons, and Applications

The versatility of spade connectors is their greatest strength. They are used everywhere: on the terminals of speakers, on the back of toggle switches, on relays, on fuse blocks, and on countless sensors and components. They allow for an entire component, like a radio or a gauge, to be installed and then easily removed for service or replacement without any cutting or splicing.

The main drawback of traditional spade connectors is their complete lack of environmental sealing. The connection is open to the air, which means moisture, dirt, and salt can easily get in. This leads to corrosion, which builds up resistance, which in turn generates heat. A heavily corroded spade connector can melt its own insulation or the component it's attached to. For this reason, it's wise to use dielectric grease on spade terminals in engine bays or other damp locations to help seal out moisture.

In performance applications, building a reliable electrical system is non-negotiable. While spade connectors are fine for a stereo, the high-vibration, high-heat environment of a race engine demands that every component is securely mounted. This includes items like ignition coils, where high-quality Coil Brackets are essential to prevent vibration from damaging both the coil and its electrical connections.

The Classic Choice: Bullet Connectors

Bullet connectors are very similar in concept to spade connectors. They are a two-piece, male-and-female system designed for quick disconnection. Instead of a flat blade, however, the male connector is a round "bullet," and the female is a rolled "socket" that it plugs into. They are another old-school connector that has been in use for decades, especially in motorcycle and classic car wiring harnesses.

Design and Common Uses

You'll most often find bullet connectors with vinyl or nylon insulation, color-coded for the same red, blue, and yellow wire gauges as other crimp terminals. Their round profile makes them slightly more compact than a spade connector, which can be useful in some situations. They are very common in accessory lighting, where a light bar or fog light might come with bullet connectors on its pigtail to easily plug into a corresponding harness.

Some manufacturers, particularly on older Japanese motorcycles, used bullet connectors extensively. They were often grouped inside large, multi-pin rubber or plastic housings, creating a primitive version of a multi-pin plug that was still serviceable one wire at a time. This design has largely been replaced by modern, all-in-one molded connectors.

Pros and Cons

The pros of bullet connectors are the same as spades: they are cheap, simple, and provide a serviceable connection point. They are easy to install with a standard crimp tool and are universally available.

However, they share, and in some cases, amplify the cons of spade connectors. The surface area of the electrical contact point inside a bullet connector is often smaller than that of a properly-sized spade, limiting its current-carrying capacity. They are also notoriously prone to vibrating loose over time, as their friction-fit connection is often less secure. Like spades, they offer zero environmental protection and are highly susceptible to corrosion. While fine for a hobby project or a classic restoration aiming for originality, most modern technicians would opt for a more reliable, sealed connector.

The Sealed Connection: Weather Pack Connectors

We now move into the world of environmentally sealed connectors, and the most common and accessible entry-point is the Weather Pack system. Originally developed by Packard Electric (later part of Delphi, now Aptiv), Weather Pack connectors were designed from the ground up to be waterproof, dustproof, and resistant to vibration, chemicals, and extreme temperatures. They are the go-to choice for creating a new, reliable connection in any exposed area of a vehicle.

What Makes Weather Pack Connectors Special?

A Weather Pack connector is a multi-component system. Unlike a simple spade, you don't just crimp one piece. The system consists of a male "shroud" housing and a female "tower" housing, male and female pins, and individual silicone wire seals. The magic is in the sealing: each wire is sealed twice.

First, a small, ribbed silicone seal (typically green, blue, or gray depending on the wire's insulation diameter) is slid onto the wire. Then, the metal pin is crimped onto the wire and the seal simultaneously, creating a tight, waterproof barrier at the wire's entry point. Once all the crimped pins are inserted into their respective cavities in the housing (you'll hear a "click" as they lock), a large "gasket" seal on the male housing mates with the female housing, sealing the entire connector interface. The two halves then lock together with a secure plastic tab, preventing them from vibrating apart.

Pros, Cons, and Applications

The primary advantage of Weather Pack is in the name: it provides excellent protection from the weather. It's an ideal solution for under-hood applications, auxiliary lighting, electric fan conversions, and marine use. The components are readily available, relatively inexpensive, and come in 1- to 6-pin configurations.

The downsides are few but important. First, they are bulky. A 4-pin Weather Pack connector is significantly larger than a 4-pin unsealed connector. Second, they require a special, dedicated crimping tool. You cannot get a proper, sealed crimp on both the pin and the seal with a standard parts-store crimper. Using the wrong tool is the number one reason a Weather Pack connection fails. Finally, the terminals are generally rated for a maximum of 20 amps, making them unsuitable for very high-power applications.

These connectors are a perfect example of how electrical systems must be built to support high-performance components. You simply cannot run high-end, power-hungry parts with weak wiring. For example, competitive racers often rely on top-tier components like Waterman Fuel Pumps to deliver consistent fuel flow, and these pumps demand a flawless, high-amperage electrical connection that only a professional-grade connector can provide.

The Heavy-Duty Professional: Deutsch Connectors

If Weather Pack is the serious amateur's choice, Deutsch connectors are the choice of heavy industry and professional motorsports. Now owned by TE Connectivity, Deutsch connectors are the standard in heavy-duty applications like mining, agriculture, construction, and high-end racing. They are designed to be, in a word, indestructible. They take all the principles of the Weather Pack and turn them up to eleven.

Design and Key Components

The Deutsch system is also a multi-part assembly, but it's built with even greater ruggedness. The most common series you'll see in automotive is the "DT" series, which uses size 16 pins and sockets, each rated for 13 amps. The system consists of a plug and receptacle housing, solid or stamped pins and sockets, and a "wedgelock" to secure them.

The assembly process is different from Weather Pack. You first crimp the solid, machined pin (or stamped, formed pin) onto the wire. These pins are incredibly robust. You then insert the wired pin into the back of the appropriate housing until it "clicks" past a locking finger. The real key to the Deutsch system is the next step: you insert a wedgelock (a separate piece of colored plastic) into the front of the connector. This wedge shoves all the pins into their final, seated position and, most importantly, locks them in place, making it impossible for them to be pushed out or vibrate loose. The housings themselves are made of thick, rugged thermoplastic and feature a heavy-duty silicone seal.

Why Choose Deutsch? (DT, DTM, DTP Series)

The Deutsch lineup is vast, but it's broken into logical series. The DTM (Micro) series is for smaller wires (24-20 AWG) and lower current (7.5 amps), perfect for sensors and data signals. The DT series is the 13-amp workhorse for most standard circuits. The DTP (Power) series is for larger wires (14-10 AWG) and 25-amp loads, ideal for high-power devices. This scalability, from tiny sensor signals to high-current power, all within the same rugged, sealed, and field-serviceable system, is what makes Deutsch so dominant.

The pros are almost endless: superior environmental sealing, incredible vibration and shock resistance, a wide range of current capacities, and high pin-count options (DT connectors can go up to 12 pins). The solid pins are reusable, and the connectors can be disassembled in the field with a special, but simple, removal tool.

The only real cons are cost and complexity. Deutsch connectors and their required solid-pin crimping tools are significantly more expensive than Weather Pack. The assembly process, with the separate wedgelock, is also more complex, though it results in a far more secure final product. For a critical, can-never-fail connection in a race car's engine harness, most professionals will choose Deutsch every time.

Comparing the "Big 5" Automotive Connectors

To help summarize, here is a quick-comparison table of the five main types of connectors we've discussed. This can help you make a fast decision based on your needs.

Beyond the "Big 5": Other Connectors to Know

While the five connectors above will cover 90% of your aftermarket wiring needs, there are a few others you will undoubtedly encounter.

Ring and Hook Terminals: These are not for connecting wires to each other, but for connecting a wire to a fixed point, such as a ground stud on the chassis or the battery post. A ring terminal forms a complete "O" and is the most secure, as it's captured by the bolt or nut. A hook or fork terminal is "U" shaped, allowing it to be installed by just loosening a screw, but it is less secure. A solid, clean ground connection, usually made with a ring terminal, is the most important part of any electrical circuit.

OEM Multi-Pin Plugs: These are the large, complex, and proprietary connectors used by the car manufacturer for the main wiring harness, ECU, taillight assemblies, and door harnesses. Brands like Yazaki, Sumitomo, Molex, and TE Connectivity (AMP) are the giants in this space. When one of these breaks, you typically cannot buy the individual components. The most common repair is to buy a "pigtail," which is a new connector of the correct type with short lengths of wire already attached, allowing you to splice it into your existing harness using butt connectors.

Solder Sleeves: An interesting alternative to a heat-shrink butt connector, a solder sleeve is a heat-shrink tube that contains a ring of low-temperature solder and two rings of sealing adhesive. You slip the sleeve over the two (un-crimped) wires and heat it with a heat gun. The tube shrinks, the adhesive rings melt to seal the ends, and the solder ring melts, flowing into the wire strands to create a soldered joint, all in one step.

Understanding the nuances of each connector is the first step. For a more comprehensive overview, our Guide to Car Electrical Connectors covers everything from basic electrical theory to advanced harness-building techniques.

How to Ensure a Perfect Connection Every Time

A connector is only as good as its installation. You can buy the most expensive Deutsch connector in the world, but if you install it incorrectly, it will fail. The single most important factor is using the correct tools and techniques.

The Importance of the Right Tool: Crimping vs. Soldering

There is a long-standing debate about crimping versus soldering. In an automotive environment, crimping is the preferred method for reliability. A proper crimp, made with a ratcheting crimp tool, forms a "cold weld" between the wire and the terminal. This mechanical bond is extremely strong and, crucially, flexible. Soldering, by contrast, creates a joint that is very rigid. As the wire vibrates, it will flex at the edge of the rigid-soldered section, causing the wire strands to fatigue and eventually break. Soldering also wicks solder up the wire, making it a solid, brittle piece.

This doesn't mean solder has no place, but for connector pins, a crimp is superior. The key is using the right crimp tool. For simple red/blue/yellow insulated terminals, a ratcheting crimper that holds the terminal and won't release until the perfect pressure is applied is a must. For Weather Pack and Deutsch pins, you need the specific open-barrel crimper designed for those terminals. Using pliers or a cheap "hammer" crimper will get you in trouble, guaranteed.

Proper Wire Preparation and Sealing

Start with the wire. Use a quality wire stripper that won't nick or cut the copper strands. Strip just enough insulation to seat the wire fully in the terminal, but not so much that you have exposed wire. For stranded wire, give the strands a gentle twist to keep them together.

For unsealed connectors, like spades and bullets, a dab of dielectric grease is your best friend. It's important to know what this grease does: it is an insulator, not a conductor. You apply it to the outside of the mated connection. It fills the air gaps, sealing out moisture and oxygen, which are the two ingredients for corrosion. The metal-on-metal contact of the pins is what conducts electricity, the grease just protects that contact.

We've covered a lot of technical ground, and sometimes it's best to consult a professional. If you have questions about your specific project or need help sourcing the right components, Contact us and our team of experts will be happy to to assist.

Common Mistakes to Avoid with Automotive Wiring

Over the years, we've seen countless electrical failures, and they almost always come down to a few common, avoidable mistakes.

First is using the wrong wire gauge. Undersizing a wire for the current it needs to carry is a recipe for disaster. The wire will act like a resistor, getting hot, melting insulation, and potentially starting a fire. Always use a wire gauge chart to select the right wire for your load and run length.

Second is the use of "quick taps" or "vampire taps." These are plastic connectors that allow you to "tap" into an existing wire without cutting it. They work by slicing through the insulation with a small metal blade. These connectors are notoriously unreliable, often cut the wire strands, and create a perfect entry point for moisture and corrosion. Avoid them at all costs.

Finally, poor grounding is the source of at-B_90% of electrical problems. A ground connection needs to be on a clean, bare-metal spot on the chassis or engine block. A ground on a painted or rusty surface will be intermittent and cause all-BI-sorts of strange behavior. Every circuit is a round trip; the ground path is just as important as the power path.

The variety of connectors and tools can be overwhelming, but mastering them is key to a reliable vehicle. The principles of secure connections apply to everything, from a simple radio install to managing a high-performance system. These Car Electrical Connectors are the building blocks of any quality automotive wiring job.

Your Partner for Reliable Automotive Connections

From the simplest spade to the most complex Deutsch harness, the world of Car Electrical Connectors is deep, but not unmanageable. By understanding the fundamental differences in design, from sealing and serviceability to current rating and cost, you can make an informed choice that will ensure your electrical work is reliable, safe, and built to last. A connection is only as good as its weakest link, and with the right components and techniques, you can ensure there are no weak links in your system.

Here at Quick Bitz, we've seen it all. We understand that a reliable vehicle, whether it's a daily driver or a dedicated race car, depends on these crucial components. That's why we not only offer a wide range of professional-grade connectors but also the expertise to help you get the job done right. For all your wiring needs, from a single connector to a complete harness, trust Quick Bitz to keep you connected.

FAQs about Automotive Electrical Connectors

Can I solder automotive wires instead of crimping?

You can, but it's generally not recommended for high-vibration environments. A proper crimp is more flexible and resistant to vibration-induced failure. Soldering creates a rigid point that can cause the wire to break over time. If you must solder, be sure to support the wire with heat shrink to provide strain relief.

What is the difference between Weather Pack and Deutsch connectors?

Both are excellent sealed connectors, but Deutsch connectors are generally considered more heavy-duty and robust. They use solid-pin contacts and a wedgelock system, making them superior in high-vibration or critical applications. Weather Pack connectors are more than adequate for most automotive uses, are less expensive, and are a bit simpler to assemble.

How do I know what size connector to use?

The connector size is determined by two things: the wire gauge (AWG) it must accept and the current (amperage) it must handle. Crimp terminals are color-coded (Red/Blue/Yellow) for specific wire gauge ranges. Sealed connectors like Deutsch and Weather Pack have terminals designed for specific gauge ranges. Always match the connector's amp rating and wire gauge to your circuit's requirements.

Are all automotive connectors waterproof?

Absolutely not. In fact, most of the "classic" connectors like spades, bullets, and vinyl-insulated butt connectors offer no waterproofing at all. Only connectors specifically sold as "sealed" or "waterproof," such as heat-shrink butt connectors, Weather Pack, and Deutsch, will protect your connection from moisture.

What is dielectric grease used for?

Dielectric grease is a non-conductive, silicone-based grease used to protect unsealed connections. It is applied to the connection (like on a spark plug boot or around a spade terminal) to seal out moisture, air, and salt, which prevents corrosion. It does not help electricity flow; it only protects the metal surfaces that do.
