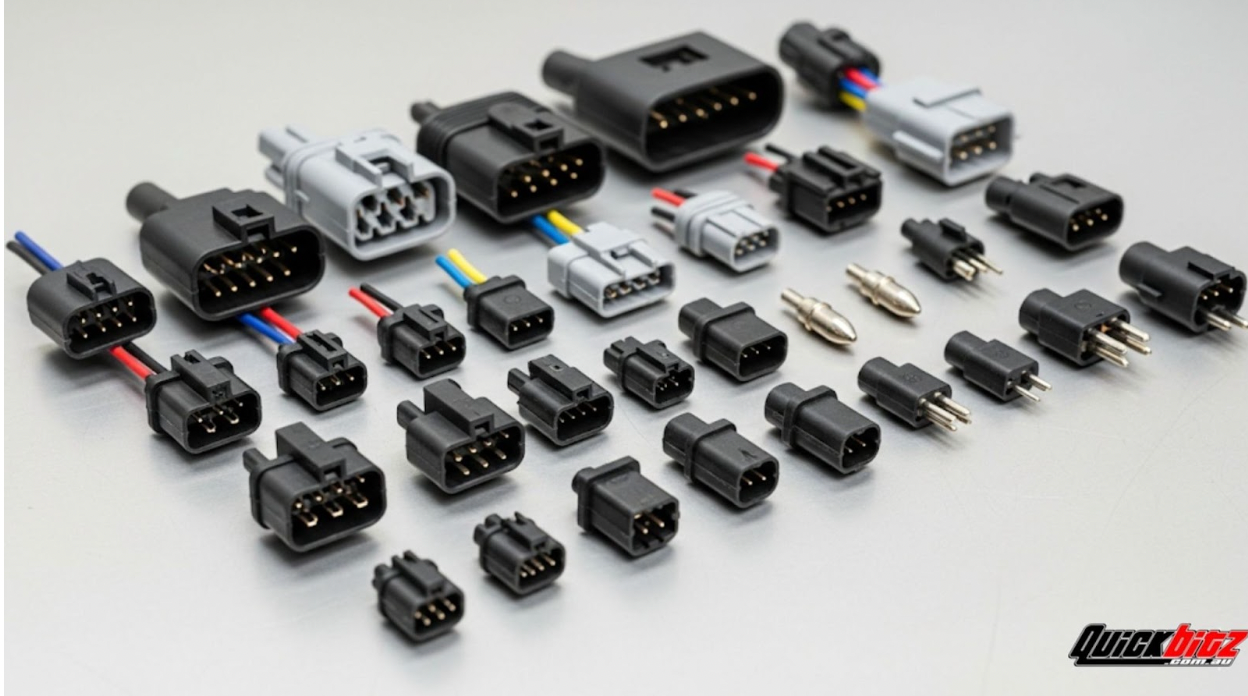

What are the Most Common Types of Automotive Electrical Connectors?

Automotive Electrical Connectors form the backbone of every modern vehicle’s wiring system, joining circuits and ensuring reliable power and signal transmission across a car’s myriad electronic systems. In an era defined by sophisticated control units, infotainment systems, and advanced driver-assistance technologies, these connectors must balance electrical performance with mechanical resilience. From simple blade terminals under the bonnet to high-density multi-pin plugs linking engine sensors, each connector type addresses specific requirements of voltage, current, environment and serviceability. Understanding the prevalence and characteristics of these connectors empowers technicians, engineers and DIY enthusiasts to make informed choices and maintain peak performance in harsh operating conditions.

In a market flooded with proprietary and standardised connector families, familiarity with the most common variants accelerates troubleshooting and retrofit projects. This blog draws on a decade of hands-on experience in automotive wiring design and installation to unpack connector types ranging from spade terminals and pin housings to IP67-rated waterproof automotive plugs. It emphasises real-world selection criteria, materials science and maintenance practices crucial for extending service life in diverse climates. Ultimately, readers will gain a holistic perspective on automotive connectors’ roles—from ensuring battery ground circuits remain intact during heavy vibration to securing CAN-bus signals in passenger cabins.

Every wiring harness is only as reliable as its connectors, and even a high-quality electrical cable assembly can be undermined by a corroded crimp terminal or a misaligned pin row. Through detailed analysis and industry-tested insights, this guide helps choose, install and preserve connectors that underpin engine controls, lighting, safety systems and infotainment modules. Whether you’re retrofitting LED headlights, upgrading an alternator harness or designing a factory-grade wiring loom, knowing which connector family to trust makes the difference between seamless operation and intermittent faults.

What are the different types of automotive electrical connectors?

Automotive Electrical Connectors can be categorised by shape, pin count, sealing method and locking style, each tailored to its application’s demands. This section surveys the most ubiquitous varieties encountered in vehicle wiring harnesses, emphasising how design features solve challenges like moisture ingress, vibration fatigue and current handling. By exploring blade, pin, multi-pin and weatherproof connectors, readers will recognise connector families at a glance and understand when to specify a heavy-duty Deutsch plug versus a low-cost nylon spade terminal.

Blade terminals and spade connectors

Blade terminals, also known as spade connectors, are slender metal tongues that mate with receptacle sockets, providing a quick-disconnect interface for low-voltage circuits. These terminals are often forged from tin-plated brass or phosphor bronze, balancing conductivity with corrosion resistance. Technicians favour them for headlamp assemblies, interior switch harnesses and battery connections where ease of service is paramount. The female counterpart, a slip-on spade socket, crimps securely around the wire and slides over the blade, achieving consistent contact pressure even under vibration. Proper crimping tools with matched die sets ensure mechanical stability and minimise voltage drop in these ubiquitous connectors.

Blade terminals are offered in standard series such as 0.110-inch, 0.187-inch and 0.250-inch widths, each rated for specific amperage ranges. Colour-coded nylon insulation reflects the wire gauge, simplifying component selection in complex harness builds. While blade and spade connectors excel in accessibility and low-cost production, they typically lack the sealing required for engine bay or chassis-underbody applications without additional boot covers or heat-shrink tubing.

Pin connectors

Pin connectors feature cylindrical male pins that insert into matching female sockets housed within a plastic shell, offering more precise alignment than blade terminals. Available in single-pin and multi-pin housings, they are common to sensor leads, body control modules and ECU interfaces. Pin connectors often incorporate secondary locks—a small plastic clip that snaps into place after pin insertion—to prevent contact backs-out under vibration. Because pin geometry enforces rotational alignment, these connectors support denser packaging in tight spaces behind instrument clusters.

High-quality pin connectors may include integral rubber seals or grommets, elevating moisture resistance to IP65 and beyond. This half-round seal snugly encircles the wire where it enters the housing, stopping water ingress without requiring external sealing compounds. Pin connectors frequently pair with wire tap branches, enabling split circuits for lighting or data-bus splices. When replacing damaged pins, technicians must use specialised extraction tools to avoid damaging the housing or neighbouring contacts—a caution that underscores the importance of modular harness architecture.

Multi-pin connectors

Multi-pin connectors aggregate several pins into a single rectangular or circular shell, facilitating the interconnection of entire subsystems with one coupling action. Common families include the AMPseal series, Metri-Pack line and proprietary OEM designs. These connectors accommodate high pin counts—20, 36, or more—in a compact footprint, reducing assembly time and harness complexity. Locking levers or latch systems ensure a secure mating interface, critical for high-vibration contexts such as engine control unit connections.

Beyond mechanical robustness, multi-pin connectors often incorporate offset pin patterns, preventing mis-mating of similar-looking plugs. Engineers leverage keyed housings and colour coding to align automotive wiring harness segments in production lines, streamlining workflow. Many high-performance variants deliver operating capabilities up to 20 A per pin, enabling both power distribution and signal transmission in a single housing. For applications exposed to road grime and moisture, these connectors rely on integrated elastomeric seals around the mating faces and wire entries to achieve IP67-level protection.

Waterproof automotive plugs

Waterproof automotive plugs represent a specialised sub-class engineered to maintain electrical continuity even under direct water spray, submersion or chemical exposure. Brands such as Deutsch DT, TE Connectivity AMPseal and Molex MX150L earn acclaim for their ruggedness. They combine robust polymer housings, silicone gaskets and self-locking metallic shells, resisting pressures up to 10 bar in certain models. These plugs routinely protect critical circuits like ABS sensor leads, fuel pump harnesses and off-road lighting modules.

Their insertion force tends to be higher than non-sealed connectors, ensuring a tight seal against moisture intrusion. Installation best practices require lightly lubricating seals with compatible silicone grease to facilitate mating and prolong seal life. Key design considerations include differential pin plating—gold-plated contacts for low-current signal lines versus tin-plated brass for power pins—optimising both contact resistance and cost. These connectors underpin the reliability of aftermarket accessories such as towbar wiring kits and marine-grade electrical systems where immersion is anticipated.

Weatherproof connectors (Deutsch, Ampseal, Metri-Pack)

In addition to fully submersible plugs, a broad array of weatherproof connectors address splash, dust and salt fog encountered in typical driving scenarios. The Deutsch DT series, TE Connectivity Metri-Pack 150 and GM-style Packard 56 systems exemplify this class. They utilise wedge-style seals around individual contacts and multi-component housings that interlock to create a moisture barrier. Automotive manufacturers adopt these connectors extensively for engine sensor harnesses, chassis electrics and trailer tow interfaces.

These systems generally achieve IP67 compliance when mated, offering full dust ingress protection plus temporary submersion defence. The DT series, for instance, utilises square-pin contacts sealed by rib-bed elastomeric inserts that resist back-out under thousands of mating cycles. Similar principles apply in heavy-vehicle market connectors, where harsh environments demand proven endurance. Standardised tooling and die-sets for crimping have emerged around these families, allowing third-party harness manufacturers to maintain OEM-like reliability at competitive cost points.

Molex and Packard connectors

Molex and Packard connectors trace their roots to early automotive electric systems, with Molex KK and Packard 56 still in widespread circulation. Although some legacy vehicles employ these connectors for tail-light assemblies and ignition circuits, modern variants have migrated toward improved sealing and locking mechanisms. The classic Packard 56 series features weather-resistant nylon housings and single-pin seals, used historically in under-bonnet connections.

Molex, meanwhile, supplies a gamut of low-voltage rectangular connectors for interior modules—seat controls, door locks and HVAC interfaces. Contemporary Molex offerings integrate snap-in contact retention and peel-away sealing boots, bridging the gap between legacy price-sensitive markets and stringent performance demands. Both brands enjoy broad aftermarket support, with replacement kits available for spares and retro-fitting projects on classic cars.

Terminal blocks and fuse connectors

Terminal blocks consolidate multiple wire terminations in a single mounting block, enabling neat distribution of power across auxiliary circuits. Often found in aftermarket accessory panels—rally car switch boards, high-powered audio amplifiers—these blocks manage high-current spurs safely. Insulated fuse holders can be integrated, combining overcurrent protection with distribution in one assembly.

These blocks use screw or spring-clamp technologies to secure bare wire ends or ring terminal lugs, providing tool-accessible connections ideal for rapid changes in wiring configurations. Terminal blocks frequently mount onto DIN rails or underlying fuse boards, delivering straightforward maintenance and circuit tracing. They are a mainstay of secondary battery systems in recreational vehicles and marine craft, where robust terminal interfaces are critical for safety and serviceability.

PCB connectors and specialised interfaces

Printed circuit board (PCB) connectors bridge on-board electronics with external wiring harnesses. These come in right-angle or vertical cartridges that solder directly on PCBs used in instrument clusters, infotainment head units and body-control modules. They feature fine-pitch pins—0.8 mm or less—for high signal density and may include shielded housings to mitigate electromagnetic interference.

Installation protocols for PCB connectors emphasise precise solder filleting and controlled insertion forces to avoid board delamination. Combined with EMI gaskets and conductive housings, these connectors form the interface through which sensors, actuators and displays exchange data. On high-end vehicles, PCB connectors handle both LVDS camera feeds and CAN-bus signalling, illustrating their versatility in advanced electrical architectures.

How to choose the right automotive electrical connector?

Automotive Electrical Connectors selection hinges on a balanced assessment of electrical load, environmental conditions, space constraints and serviceability requirements. Beginning with the current and voltage demands of the circuit, the engineer must confirm that the connector’s contact material, pin size and plating support the expected amperage without overheating or excessive voltage drop. At the same time, application environments—engine bay heat, chassis salt exposure or passenger compartment humidity—dictate sealing levels.

Beyond electrical and environmental considerations, mechanical factors such as mating cycles, locking strength and ease of assembly play pivotal roles. Connectors destined for routine service points should feature user-friendly latch mechanisms, while those buried deep within harness bundles may benefit from compact, low-profile housings. Reference to Technical Information from OEM and third-party datasheets clarifies torque specifications, insertion/extraction forces and compatible cable gauges, minimising the risk of premature failure.

Wire gauge compatibility stands out as a fundamental criterion. Mismatched wire-to-pin ratios yield unreliable crimps and increased contact resistance. Consequently, many connector families offer multiple contact sizes—0.5 mm², 1.0 mm², 2.5 mm²—for fine-tuning harness builds. Design engineers routinely consult wiring harness templates and cable assembly specialists to ensure each connector’s colour-coded insulation sleeve aligns with the intended copper cross-section and application environment.

Another crucial aspect is connector accessibility for diagnostics and replacement. In complex electrical architectures—such as those featuring dual-battery systems or advanced driver-assist sensors—the ability to isolate and swap individual connectors can significantly reduce downtime. Harness designers often include diagnostic breakouts and service loops near critical subsystems, leveraging quick-release connectors to facilitate rapid troubleshooting in the workshop or at track-side.

What materials are used in automotive electrical connectors?

Connector housings and contacts must endure corrosive agents like road salts, engine fluids and UV exposure, driving material selection toward robust polymers and plated metals. Housing materials commonly include glass-filled nylon and PBT (polybutylene terephthalate), chosen for high heat deflection temperatures and dimensional stability. These plastics resist cracking under thermal cycling and provide the mechanical mould lines needed to maintain precise pin alignments.

Contact materials typically feature brass, phosphor bronze or beryllium copper cores, all known for excellent conductivity and spring characteristics. To further enhance durability, contacts are plated—gold or nickel over copper—to prevent oxidation and maintain low contact resistance. Higher-end connectors use selective plating, applying gold only on low-current signal pins to avoid unnecessary cost increases on power contacts where tin plating suffices.

Seals and grommets are usually made from silicone or EPDM (ethylene propylene diene monomer) rubber compounds, which retain elasticity across wide temperature ranges. Their purpose is to compress around the wire insulation when the connector is mated, closing pathways for moisture and particulates. Proper material compatibility between seal and housing is critical; chemical interaction can cause seal hardening and compromised ingress protection over time.

Housing surface finishes may include proprietary UV-resistant coatings, slowing polymer degradation in sun-exposed engine compartments. Designers also consider flammability ratings (UL 94 V-0 or higher) to comply with automotive safety standards. When selecting connectors, referencing material specifications alongside mechanical and thermal performance data ensures appropriate choice for both OEM and aftermarket applications.

What are the common applications of automotive electrical connectors?

Electrical connectors pervade every corner of a vehicle’s design, from powertrain control units to convenience features and safety systems. Under the bonnet, connectors link the engine control module (ECM) to oxygen sensors, mass airflow meters and fuel injectors, forming a high-speed data bus that constantly monitors combustion efficiency. These under-hood connectors demand IP67 or IP68 ratings to withstand heat cycles, oil sprays and road debris.

In the passenger compartment, wiring harnesses integrate dash-mounted switches, infotainment displays and HVAC actuators via multi-pin and PCB connectors. This domain emphasises space savings and signal integrity, especially for audio and video modules where EMI shielding is paramount. Passenger comfort systems such as heated seats and ambient lighting harness blade terminals and spade connectors for straightforward aftermarket upgrades.

Safety systems—airbag modules, ABS control units and parking sensors—utilise specialised connectors with redundant locking features. These connectors often incorporate fail-safe designs, such as secondary metal latches and audible click indications, to guarantee positive engagement. Their wiring harnesses must comply with stringent automotive safety standards (for instance, ISO 26262 functional safety) to ensure consistent performance during collision events.

Underbody and trailer-tow applications rely heavily on Quick bitz for mounting harness spools, ensuring that connectors remain aligned and strain-relieved under constant flex. Waterproof automotive plugs in this area serve auxiliary lighting circuits—fog lamps, driving lights—and towbar electrics, requiring IP67 seals to avod corrosion and intermittent connections. Off-road and marine vehicles push these applications even further, with connectors designed for full submersion and chemical resistance against fuel and antifreeze fluids.

Understanding Automotive Electrical Connectors in harsh environments

it is essential to address how environmental stresses impact connector performance. Extreme temperatures, mechanical vibration and chemical exposure challenge seals, contacts and housing integrity alike. Automotive manufacturers and harness designers must evaluate environmental cycles—cold starts, hot soak conditions, chassis washdowns—and validate connector assemblies through accelerated ageing tests that simulate thousands of mating cycles.

Automotive electrical connectors intended for engine bay use undergo thermal shock testing between -40 °C and +125 °C, confirming that seals expand and contract without cracking. Vibration tests replicate chassis resonance frequencies to ensure that contacts do not loosen or back out of housings. Salt spray chambers expose connectors to corrosive aerosols for extended durations, gauging plating adhesion and material resilience. Through these protocols, only the most durable connector families earn OEM qualification for critical powertrain interfaces.

In the passenger cabin, where dust and humidity are the predominant stressors, designers prioritise EMI-shielded connectors with robust latching mechanisms. Connectors in USB and auxiliary audio circuits often include board-level EMI gaskets and conductive housings, preserving signal integrity amid electrical noise from airbag modules and seat-motor current spikes. Evaluating humidity-freeze cycles ensures that annual condensation does not lead to seal degradation or glass-filled nylon embrittlement over multiple seasons.

Maintenance and best practices for automotive electrical connectors

Routine inspection and servicing of automotive electrical connectors extend harness life and prevent sudden failures on the road. Technicians should visually inspect sealing surfaces for cracks, verify latch integrity and look for corrosion deposits on exposed contact areas. Cleaning contacts with approved solvent sprays and gently brushing away oxides preserves low resistance, while compressed-air blowouts clear debris from pin cavities.

Re-crimping of damaged terminals demands ratchet-style hand tools with calibrated dies matched to contact series. Low-quality pliers or improper die sizes can distort contacts, creating intermittent faults that elude quick diagnosis. For connectors with replaceable pins, extraction tools allow the removal of single damaged contacts without compromising surrounding pin integrity. Any extracted seals must be replaced using correct size and durometer rating to retain IP-rated performance.

When reinstalling connectors, technicians should apply a thin film of silicone grease to rubber seals to prevent hardening over time. This practice also facilitates mating leverage, reducing the risk of shell stress cracks. Torque-controlled clamping devices can be used on flange-style connectors to achieve consistent seal compression, ensuring that the mating face experiences uniform pressure distribution. Documenting connector serial numbers and installation dates in service logs helps track lifespan trends across large fleets.

What are the key trends shaping the future of automotive electrical connectors?

Electric vehicles (EVs) and hybrid architectures place unprecedented demands on connector design. High-voltage connectors must safely handle up to 1000 V DC at currents exceeding 200 A, requiring reinforced dielectric materials and safety interlocks to prevent accidental disconnection under load. Additionally, miniaturisation of sensor networks fosters the development of micro-pitch connectors for high-density data harnesses in advanced driver-assist systems (ADAS).

Fiber-optic connectors for in-vehicle networking are gaining traction, offering immunity to electromagnetic interference and supporting multi-gigabit data links. As vehicles evolve into connected computers on wheels, harness architectures will integrate both copper power cables and optical data lines, demanding hybrid connector modules that blend electrical and optical contacts in one housing. These connectors must meet stringent automotive optical-grade standards, ensuring low insertion loss and mechanical durability under continuous flex.

Sustainability concerns are also reshaping material choices. Automakers increasingly seek recyclable polymers and lead-free plated contacts to align with global environmental regulations. Innovations in biodegradable housing materials and contact-surface coatings aim to reduce end-of-life environmental impact without sacrificing performance. As circular economy principles penetrate automotive design, connector suppliers will need to certify material provenance and recyclability metrics alongside electrical and mechanical specifications.

FAQs

How do waterproof automotive plugs prevent moisture ingress?

Waterproof automotive plugs use integrated silicone or EPDM seals around individual wire entries and between mating faces. When the connector is mated, these gaskets compress to form a continuous barrier against water and dust. Many designs also include form-fitted housings that minimise gaps and self-locking shells to maintain seal compression under vibration.

What is the difference between pin connectors and blade terminals?

Pin connectors employ cylindrical male pins inserted into female sockets within a plastic housing, offering precise alignment and optional sealing grommets. Blade terminals feature flat metal blades that mate with slip-on spade sockets, prioritising ease of service. Pin connectors typically support higher pin densities and environmental sealing, while blade terminals excel in low-cost, easily accessible applications.

Can automotive connectors be reused after disassembly?

Reusable connectors designed with durable locking mechanisms and replaceable seals can be re-mated multiple times without degrading performance. However, once a connector exhibits seal damage, cracked housing or corrosion on contact surfaces, it should be replaced. High-cycle connector families are rated for 50–100 mating cycles, whereas low-cost spade terminals may only guarantee a handful of service insertions.

What tools are needed for proper installation of automotive electrical connectors?

Crimp-specific hand tools with calibrated dies matched to connector series ensure reliable crimps and controlled scrap removal. Pin and seal insertion/extraction tools facilitate safe maintenance of multi-pin housings. Torque-controlled drivers are useful for flange-mount connectors to achieve uniform seal compression. Additionally, approved contact-cleaning solvents and silicone grease help preserve electrical integrity and sealing performance.

Are there standard colour codes for wire connectors for cars?

Many connector families adopt colour-coding for insulation sleeves that correspond to wire gauge—red for 0.5–1.0 mm², blue for 1.5–2.5 mm², yellow for 2.5–4.0 mm², and so forth. While LED-lighting and accessory markets sometimes vary these conventions, following OEM or connector-supplier colour codes ensures crimp consistency. Automotive wiring harness diagrams and service manuals typically specify connector colour-coding schemes for clarity.

Conclusion

By recognising the most common types of automotive electrical connectors—from blade terminals and pin housings to robust waterproof automotive plugs—technicians and designers ensure reliable vehicle electrics and streamlined maintenance. Proper connector selection, meticulous installation and proactive upkeep form the trifecta that guarantees peak performance across passenger cabins, engine bays and off-road environments. Whether integrating a new wiring harness for an EV powertrain or servicing an ageing diesel rig’s ABS sensors, understanding connector families unlocks faster troubleshooting and superior system longevity.

If further guidance is needed on harness design, connector materials or aftermarket upgrades, professionals can explore Automotive Electrical ConnectorsL for detailed supplier listings and technical white papers. Continuous reference to Technical Information ensures adherence to OEM specifications, while deploying Quickbitz strategies helps manage wiring harness inventories and streamline installation workflows.

Embracing these insights equips the reader to tackle the evolving demands of automotive electrics with confidence and precision, securing durability and performance in equal measure.
