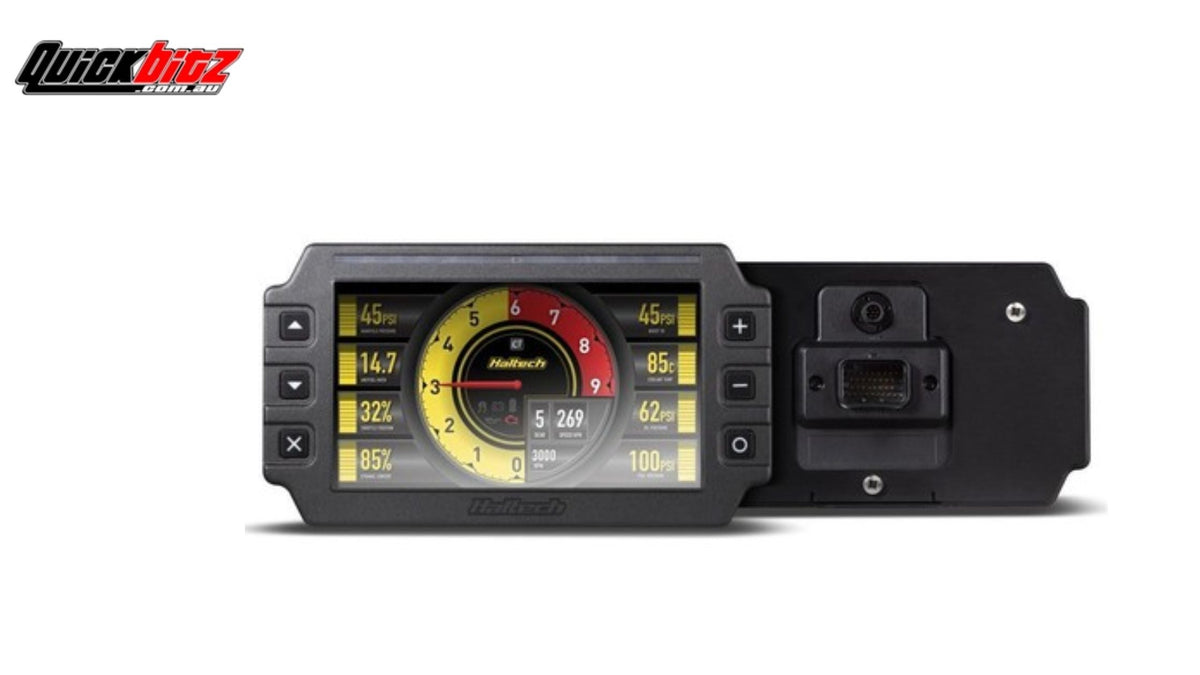

What Is a Haltech Dash? Features, Benefits & Digital Display Upgrade

A Haltech Dash is a high-performance digital instrument cluster designed to replace outdated analogue gauges with a customisable, high-resolution TFT display that integrates directly with your vehicle's engine management system. Unlike factory dashboards that provide limited information through sluggish needles, a digital dash provides real-time data for every critical engine parameter, ranging from oil pressure and boost levels to advanced air-fuel ratio metrics. By consolidating multiple sensors into a single, sleek unit, you eliminate the need for a cluttered "pillar pod" or messy wiring across your interior. For Australian enthusiasts looking to modernise their cockpits, these units offer a professional-grade solution that provides both visual appeal and the technical depth required to monitor a high-performance build safely.

What is a Haltech Dash?

At its core, a Haltech Dash acts as the central information hub for your car, processing complex digital signals into an easy-to-read visual format. Whether you choose the compact 7-inch iC-7 or the massive 10-inch uC-10, these displays are built with optically bonded screens that remain clear even under the harsh Australian sun. They connect seamlessly to a Haltech ECU via a simple CAN bus cable, which handles both power and data transmission. This plug-and-play architecture means you can see everything your ECU sees without having to wire up every sensor individually to the back of the cluster.

The versatility of these systems extends far beyond simple speed and RPM monitoring. Modern digital dashboards allow for multi-page layouts, meaning you can have a "street" screen for daily driving and a "race" screen that highlights shift lights and oil temperatures for the track. With the inclusion of user-programmable alarms, the dash can actually warn you of impending engine failure before you even notice a problem. This level of protection is why workshops across the country recommend these units as an essential upgrade for any modified vehicle.

Key Haltech Dash Features for Performance

One of the most impressive Haltech dash features is the integrated shift light bar which consists of multiple RGB LEDs that can be programmed to change colour as you approach your RPM limit. This allows you to keep your eyes on the road while receiving clear, peripheral cues on when to shift gears. Furthermore, these units feature auto-dimming technology that adjusts the screen brightness based on ambient light, ensuring you aren't blinded during night drives while maintaining perfect visibility during the day.

Another standout feature is the onboard data logging capability. While your ECU typically handles the engine's primary logs, the dash can record its own set of channels to an internal 512MB memory loop. This is incredibly useful for reviewing your performance after a run down the strip or a session at the circuit. If you find that your current setup isn't displaying the data you need, you should contact us so we can help you configure your inputs and ensure every vital sensor is being logged correctly.

Enhancing Safety with Programmable Alarms

Safety is paramount when pushing a modified engine to its limits. A digital dash allows you to set high and low thresholds for any channel, such as coolant temperature, fuel pressure, or battery voltage. When a sensor reading falls outside of the safe zone, the dash can trigger a full-screen warning message or flash the shift lights in a specific pattern to grab your attention immediately. This proactive warning system can save you thousands of dollars in repairs by preventing a "meltdown" caused by a simple fuel pump failure or a burst radiator hose.

In a traditional setup, you might not notice a rising temperature needle until it's already in the red. With a digital system, the response is instantaneous. You can even configure the dash to display different "limp mode" statuses if your ECU has protection protocols active. This transparency allows the driver to make informed decisions in real-time, whether that's backing off the throttle or pulling over safely before damage occurs.

Digital Dashboard Advantages over Analogue Gauges

When comparing digital dashboard advantages to traditional analogue setups, the primary benefit is the reduction of complexity. A single CAN bus cable replaces the "rats nest" of wires typically found behind a modified dashboard. Instead of having individual power, ground, and signal wires for five or six different gauges, the dash receives all its data through a high-speed digital network. This results in a cleaner interior and a significantly more reliable electrical system.

As shown in the table above, the technological gap is vast. For owners of older vehicles, such as carburetted classics or early EFI cars, Haltech offers "Stand-Alone" kits that come with their own sensor packs. This allows you to modernise a car that never had an ECU to begin with, bringing 21st-century monitoring to a vintage machine without compromising its classic soul.

Vehicle Data Display Integration and Connectivity

The true power of a modern display lies in its vehicle data display integration capabilities. For cars built after 2008, the dash can often be connected directly to the factory OBDII port. This allows the unit to "eavesdrop" on the factory computer, displaying speed, RPM, and temperature data without any permanent modifications to the vehicle. This is a popular choice for street cars where the owner wants a more modern look without committing to a full standalone ECU immediately.

For those with a full Haltech ecosystem, the integration is even tighter. You can share I/O (Inputs/Outputs) between the ECU and the dash. For example, you can wire a fuel level sender directly to the dash and have that information transmitted back to the ECU for fuel usage calculations. This bidirectional communication makes the most of every pin on your wiring harness, ensuring that your engine management system is as efficient as possible.

Optimising the Cockpit for Racing

In a competitive racing environment, every millisecond counts. A digital dash allows you to create a "Race" page that only shows the absolute essentials: a large tachometer, a gear indicator, and a lap timer. Haltech units are compatible with GPS speed modules, which provide highly accurate speed readings and allow for lap timing functionality without the need for expensive external beacons. This turns your dashboard into a legitimate piece of race engineering hardware.

The ability to add a reverse camera is a relatively new and highly requested feature for the C-10 dash. In a stripped-out track car with limited rear visibility, being able to see behind you on the main 10-inch screen is a massive safety boost. If you are planning a comprehensive race build and need advice on how to integrate these advanced features into your chassis, you may need to contact us to discuss the best mounting solutions and harness options for your specific application.

Future-Proofing with Software Updates

One of the biggest issues with older digital displays was that they became obsolete as soon as a new model was released. Haltech has solved this through regular firmware and software updates via the Nexus Software Programmer (NSP). When Haltech releases a new feature like a new screen skin, improved logging logic, or support for a new third-party ECU, you can simply plug your dash into a laptop and update it for free.

This means your investment is protected over the long term. You can start with a basic setup and as your car evolves, you can unlock more functionality within the same hardware. Whether you're adding tyre pressure monitoring systems (TPMS) or exhaust gas temperature (EGT) sensors via CAN expansion, the dash will always be ready to display that new data.

Ease of Installation and Configuration

Installing a modern dash doesn't have to be a daunting task. Haltech provides a variety of mounting brackets, including tube mounts for roll cages and panel mounts for custom dashboards. The software allows you to "drag and drop" gauges onto the screen, meaning you don't need to be a computer programmer to create a custom layout. You can choose from traditional needle-style gauges, bar graphs, or simple numeric readouts depending on what you find easiest to read at a glance.

Because the system is designed to be modular, you can add external push buttons to navigate through the different pages of the dash. This is much safer than trying to reach for a touchscreen while driving. If you're struggling with the initial setup or want a bespoke dash layout designed for your specific needs, you should contact us to see how our technicians can streamline the process for you.

Conclusion: Modernising Your Driving Experience

Upgrading to a Haltech Dash is about more than just having a fancy screen in your car; it is about gaining a deeper connection with your machine. By providing accurate, real-time data and a sophisticated alarm system, these units offer a level of peace of mind that analogue gauges simply cannot provide. From the streamlined wiring of a CAN bus connection to the advanced racing features like GPS lap timing and reverse camera integration, the digital revolution has transformed the way we monitor vehicle performance.

At Quickbitz, we pride ourselves on being at the forefront of automotive electronics in Australia. We can supply, install, and configure the full range of Haltech display products to suit everything from daily-driven street cars to professional-level time attack builds. If you want to transform your interior and take control of your vehicle's data, we have the expertise and the hardware to make it happen.

Frequently Asked Questions (FAQs)

Can I use a Haltech Dash with a factory ECU?

Yes, if your car is 2008 or newer and supports CAN-based OBDII, you can use the Haltech OBDII adapter cable to pull data directly from your factory computer. For older cars without an ECU, you will need the "Stand-Alone" kit which includes its own sensors.

Does the dash record data even if my ECU isn't logging?

Yes, the iC-7 and uC-10 both feature 512MB of internal memory for data logging. You can set up the dash to start logging automatically based on a "trigger," such as when the RPM exceeds 1000 or when you click a specific button.

Will the screen be visible in direct sunlight?

Absolutely. Haltech dashes use high-brightness TFT screens that are optically bonded. This process removes the air gap between the glass and the display, which significantly reduces reflections and ensures the screen remains vivid even in the brightest Australian conditions.

Can I customize the startup screen?

Yes, the software allows you to upload your own images for the splash screen. This is a great way to add a personal touch to your build or display a workshop or team logo every time you turn the key.

Do I need a separate PDM to run a Haltech Dash?

No, the dash can run as a completely independent unit. However, if you have a Haltech Nexus unit (which has an integrated PDM), the dash can display more advanced information regarding your electrical circuits, such as current draw and fuse status.
