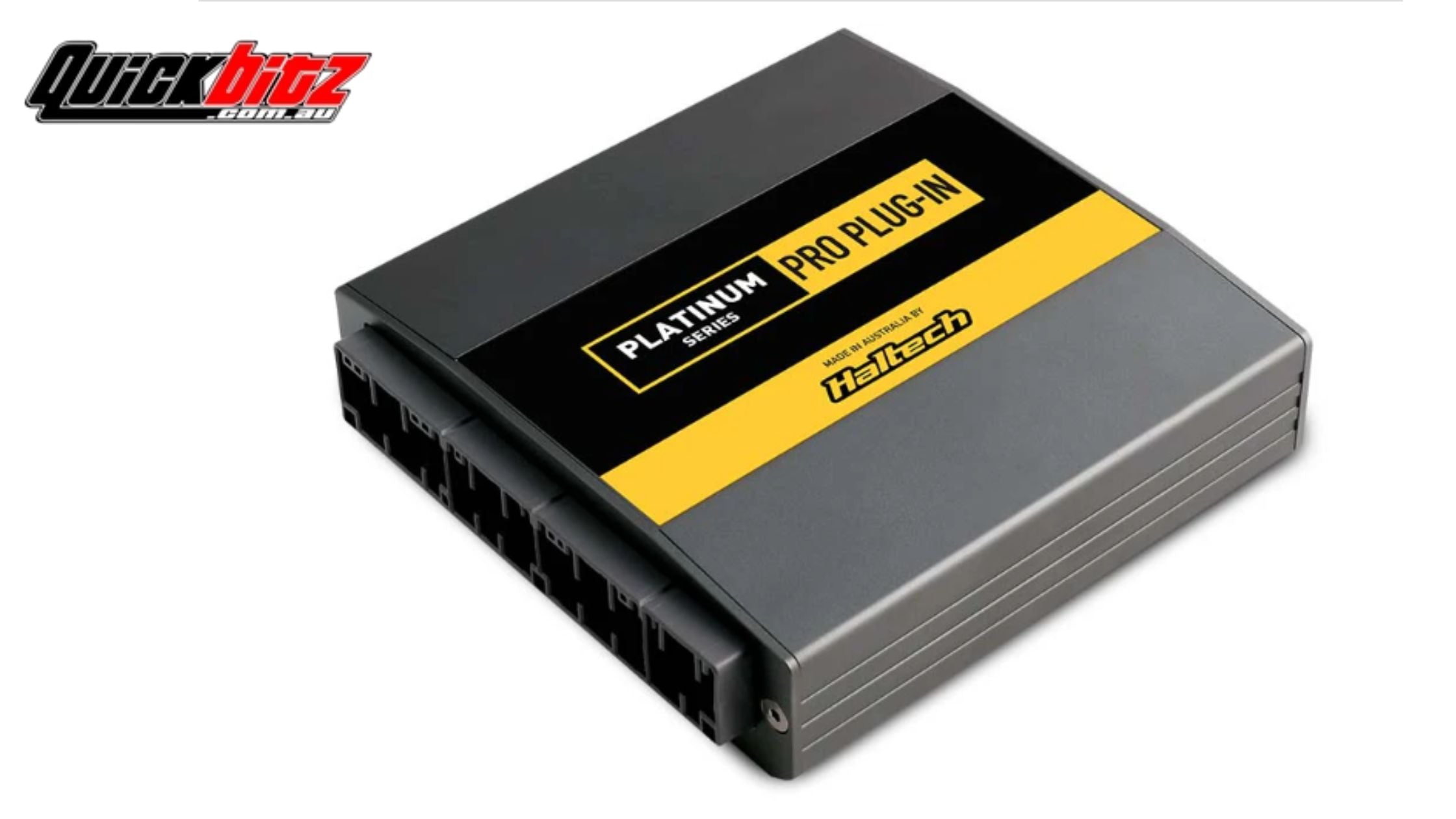

How to Choose the Right Haltech ECU for Your Engine Build

Selecting the perfect brain for your vehicle is one of the most significant decisions you will make during any performance project. Whether you are restoring a classic muscle car with a modern fuel-injected heart or pushing the limits of a turbocharged time-attack machine, the Haltech ECU you choose dictates how reliably your engine performs under pressure. It is not just about making more horsepower; it is about the resolution of control, the safety of your internal components, and the ease of the installation process itself. In the world of aftermarket engine management, one size rarely fits all, and understanding the nuances of your specific build requirements is the first step toward automotive success.

Finding the balance between advanced features and your actual budget requires a deep dive into the current ecosystem of engine management systems. A Haltech ECU serves as the central hub for every sensor and actuator on your motor, processing data at incredible speeds to ensure your fuel and ignition timing are always optimal. As technology advances, the line between a standard engine controller and a total vehicle control unit continues to blur, offering builders more flexibility than ever before. By selecting the right hardware from the start, you avoid the costly mistake of outgrowing your electronics halfway through a build.

Which Haltech ECU is right for my car?

Choosing the ideal Haltech ECU depends heavily on whether you are working with a factory wiring harness or starting with a blank canvas. If your goal is a straightforward upgrade for a supported platform, the Elite series offers a wide range of plug-and-play adapter harnesses that allow you to retain your original sensors and wiring. This approach is perfect for enthusiasts who want the power of a standalone system without the complexity of a complete vehicle rewire. For those building a race car from the ground up, the Nexus series provides a more integrated approach by combining engine management with power distribution.

When evaluating your options, you must first calculate the number of cylinders and the type of ignition system you plan to run. For example, a basic four-cylinder engine with a single throttle body and simple ignition might only require an entry-level unit like the Elite 550 or 750. However, if you are planning to utilize advanced features such as dual drive-by-wire throttles or staged injection for high-boost applications, you will need to step up to the higher-tier models. The decision often comes down to the Haltech wiring and I/O count available on each specific device to ensure all your sensors can be monitored simultaneously.

Analyzing the Elite Series vs the Nexus Series

The Elite series has been a staple in the performance industry for over a decade, providing a robust platform for everything from street cars to professional drag racers. These units are known for their reliability and the massive library of supported vehicle applications that make installation a breeze. If you are looking for a cost-effective way to gain full control over your tuning parameters, the Elite range offers various tiers to match your specific hardware needs. Each unit in this series uses the same intuitive software, making it easy to transition between different models if you upgrade later.

On the other hand, the Nexus series represents the absolute cutting edge of vehicle control technology. By integrating a Power Distribution Module (PDM) directly into the ECU, Haltech has eliminated the need for traditional fuses and relays in many high-end builds. This integration simplifies the overall Haltech wiring and I/O count significantly, as the ECU can directly control high-current devices like cooling fans and fuel pumps without external switching hardware. While the Nexus units come at a higher price point, the savings in wiring complexity and additional components often make them the smarter choice for professional-level projects.

For a mid-range build, the Haltech ECU model comparison usually centers on the Elite 1500 versus the Nexus S3. The Elite 1500 is an incredible workhorse for four and six-cylinder engines, offering features like drive-by-wire and knock control. However, the Nexus S3 brings faster processing speeds and built-in Wi-Fi, which allows for wireless tuning and data logging. These modern conveniences can drastically improve the user experience, especially during long dyno sessions where cables can become a nuisance or a trip hazard.

Key Factors in ECU Selection

Selecting the right unit requires looking at several technical specifications that directly impact your engine's potential. If you ignore these details, you might find yourself limited by the hardware just when you are ready to push for more power. Consider the following criteria when making your choice:

• Cylinder Count: Ensure the unit supports the number of injectors and ignition coils your engine requires for sequential operation.

• Throttle Control: Decide if you need Drive-By-Wire (DBW) support, which is standard on Nexus models but limited on entry-level Elite units.

• Onboard Sensors: Look for built-in MAP sensors and wideband controllers to reduce external wiring and clutter in the cabin.

• Data Logging Storage: Check the internal memory capacity if you plan to analyze long track sessions without a laptop connected.

• Expansion Capability: Evaluate CAN-bus support for adding digital dashes, keypads, or additional I/O expander boxes later.

Understanding Haltech Wiring and I/O Count

The most common mistake builders make is underestimating how many inputs and outputs they will actually need once the project is finished. Every sensor you add, such as fuel pressure, oil temperature, or wheel speed, requires an available input on the ECU. If you are planning to run a modern digital dash or a keypad for cockpit controls, you also need to consider the CAN-bus expansion capabilities of your chosen unit. Properly mapping out your Haltech wiring and I/O count before purchasing hardware ensures that you have enough channels to protect your engine from unforeseen failures.

Advanced engine protection strategies are only as good as the data they receive from your sensors. If you run out of inputs, you might be forced to choose between monitoring your oil pressure or your coolant pressure, which is a compromise no serious builder should have to make. By selecting a unit with a higher I/O count, you can set up comprehensive safety trims that automatically cut boost or pull ignition timing if any vital signs go out of range. This proactive approach to engine management is what separates a reliable street car from a ticking time bomb.

Wiring a performance engine can be a daunting task, but Haltech offers several solutions to simplify the process for the DIY enthusiast. You can choose between universal wire-in harnesses, which require you to terminate every connection yourself, or terminated engine harnesses for popular platforms like the LS or 2JZ. If you find yourself overwhelmed by the technical requirements of the wiring phase, you can always reach out to a professional to ensure your electrical system is up to the task. Professional advice at this stage can save you dozens of hours of troubleshooting later.

Comparing Popular Haltech Models

Why Data Logging and Onboard Safety Matter

High-resolution data logging is the secret weapon of every successful racing team and high-end street tuner. The ability to record every parameter at high frequencies allows you to see exactly what happened during a missed shift or a sudden loss of traction. Without detailed logs, diagnosing a mechanical issue becomes a guessing game that can lead to expensive engine failures. Modern Nexus units offer significantly more onboard storage, allowing for hours of high-speed data to be stored directly on the device for later review.

Engine protection is another area where a modern Haltech ECU pays for itself almost immediately. By setting up multi-level safety strategies, the computer can act as a digital co-driver that monitors the health of your engine. For instance, if the fuel pressure drops below a safe threshold relative to the manifold pressure, the ECU can instantly cut the ignition to prevent a lean-out condition. These features are standard across the mid-to-high range models and offer a level of security that older systems simply cannot match.

Integrating Advanced Race Functions

For those who are serious about competitive motorsport, the race functions built into high-end Haltech units can provide a significant edge. Features like launch control, anti-lag, and traction control are not just about show; they are vital tools for achieving consistent lap times and protecting your drivetrain. Launch control allows you to build boost on the starting line and ensures a perfect getaway every time by managing engine RPM based on vehicle speed. This takes the guesswork out of the start and allows the driver to focus on the lights.

Traction control is another area where the Nexus series truly shines. By comparing front and rear wheel speeds, the ECU can detect wheel slip in real-time and reduce engine power to regain grip. This is especially useful in high-powered rear-wheel-drive cars where it can be difficult to manage power on the exit of a corner. The resolution of these systems is so high that they can often intervene faster than even the most skilled driver, making the car both faster and safer to drive at the limit.

Frequently Asked Questions (FAQs)

Can I use my existing factory sensors with a Haltech ECU?

Yes, in most cases, Haltech ECUs are compatible with standard automotive sensors. If you use a Plug-and-Play adapter, the system is designed to work with your factory setup immediately. However, adding higher-resolution aftermarket sensors like a 4-bar MAP sensor or wideband O2 is recommended for high-performance builds.

What is the main difference between the Elite and Nexus series?

The Elite series focuses purely on engine management, while the Nexus series is a Vehicle Control Unit (VCU). Nexus models include an integrated Power Distribution Module (PDM), allowing them to control high-current devices like fans and pumps without the need for traditional fuses and relays.

Do I need a laptop to tune a Haltech ECU?

While you need a laptop running the NSP software for initial setup and complex tuning, many Nexus models offer Wi-Fi connectivity. This allows you to monitor data and make minor adjustments wirelessly via the Haltech Connect app on your smartphone or tablet.

How many inputs and outputs do I really need?

A basic street car might only need 4-6 inputs, but a race car with multiple temperature, pressure, and speed sensors can easily require 15 or more inputs. Always choose a unit with more I/O than you currently need to allow for future upgrades like flex-fuel or boost control.

Is it worth upgrading from an Elite 1500 to a Nexus S2?

The Nexus S2 offers built-in wideband, a higher-rated onboard MAP sensor, and USB-C connectivity. If you value a cleaner engine bay with fewer external modules and faster processing speeds, the upgrade to the Nexus platform is highly beneficial for modern builds.

Conclusion: Getting Started with Quickbitz

Choosing the right engine management system is a journey that requires careful research and a clear understanding of your mechanical goals. From the entry-level Elite series to the powerhouse Nexus R5, there is a Haltech ECU designed to meet the needs of every enthusiast. By focusing on your selection criteria and mapping out your wiring requirements, you can ensure that your engine build is a resounding success. The right electronics will not only make your car faster but also more reliable and easier to live with on a daily basis.

At Quickbitz, we specialize in helping builders navigate the complex world of high-performance engine management. Whether you need help selecting the perfect unit for your LS swap or require a custom wiring solution for a unique project, our team is ready to assist. We take pride in providing the expert support needed to turn your vision into a high-speed reality. Contact us today to find the perfect electronics for your next masterpiece.
