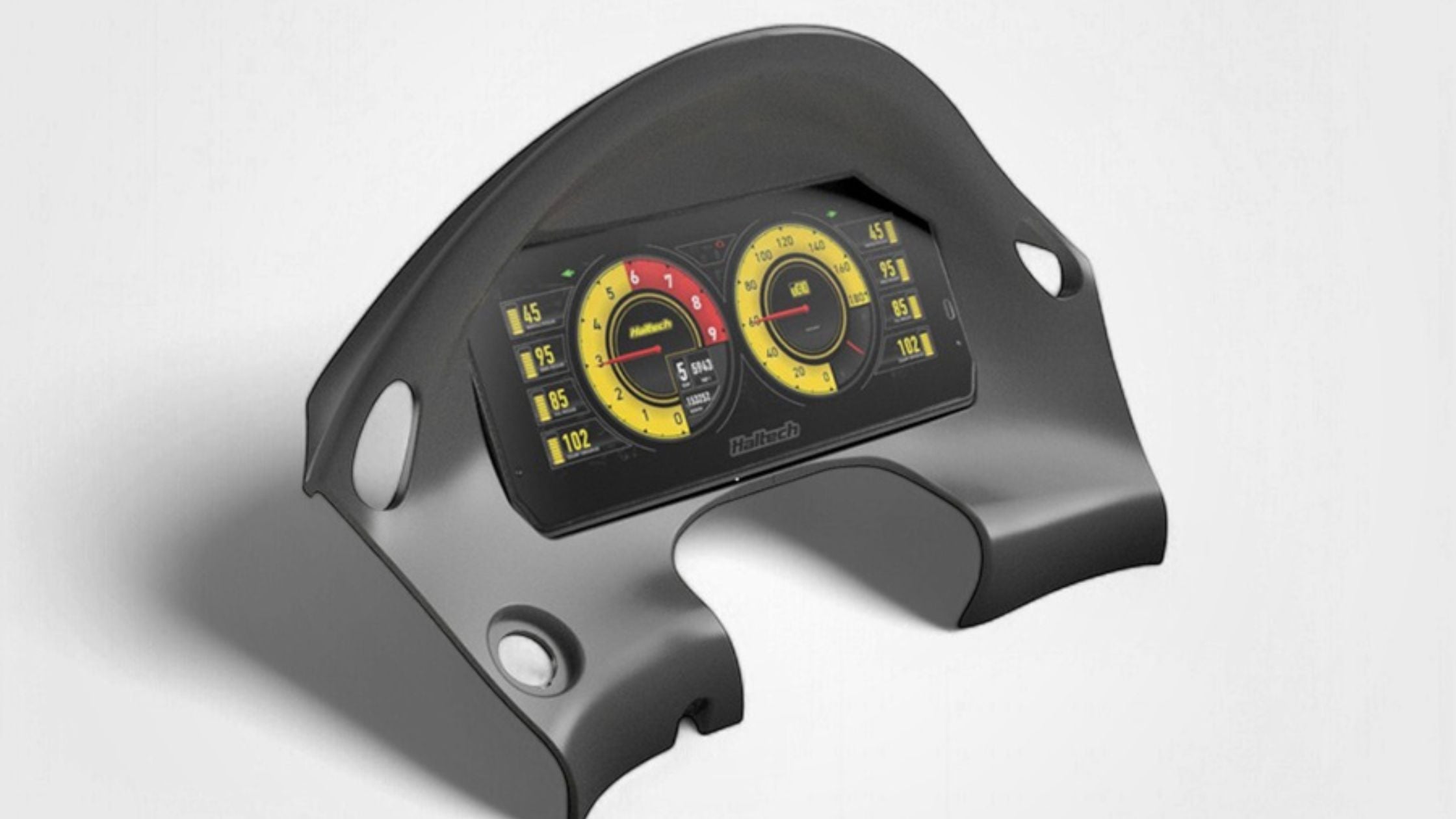

Why Are Haltech uC-10 Engine Alerts Missing?

Missing critical engine alerts on your Haltech uC-10 Display Dash usually point to misconfigured CAN bus settings or incomplete channel mapping in the dash software. The uC-10's 10-inch TFT screen displays real-time diagnostics — but only for channels you've correctly assigned. Check your CAN configuration first.

Key Takeaways

• The Haltech uC-10 is a 10-inch digital dash designed without buttons or shift lights.
• Critical engine alerts require proper ECU integration and correct CAN bus configuration to display.
• Haltech's Portal software controls alert thresholds, and misconfigured settings silence warning notifications entirely.
• Contact Quickbitz at sales@quickbitz.com.au for expert uC-10 setup support and dyno tuning services.

What do you need before configuring alerts?

Before configuring alerts on the Haltech uC-10 digital dash, three prerequisites must be in place: a compatible ECU connection, the NSP software installed. A clear understanding of which channels you want to monitor. Skipping any one of these steps leaves your engine safety monitoring incomplete. And an unmonitored engine failure can end a race or destroy a build in seconds.

What hardware do you need to get started?

The uC-10 is a 10-inch digital dash built around a full-color, optically bonded TFT screen with a minimum 70° viewing angle. The dash connects to Haltech ECUs over CAN. It also supports OBD-II and selected aftermarket ECU brands, giving you genuine flexibility. Quickbitz stocks the uC-10 and carries products validated in real race-car environments, so sourcing the right hardware is straightforward.

Gather these items before you begin:

• Haltech uC-10 dash unit
• Compatible ECU with a working CAN, OBD-II, or supported aftermarket connection
• NSP software loaded on a laptop
• Correct CAN wiring harness for your install

Does the uC-10 support stand-alone alert setups?

The uC-10 includes onboard logging and dedicated I/O ports that support stand-alone installs. Digital dash warning setup and Haltech alert configuration both run through NSP's fully customizable page editor. You can build alarm triggers without relying on a separate data logger.

How do you configure critical engine alerts correctly?

Haltech alert configuration on the Haltech UC-10 digital dash runs through NSP — Haltech's dedicated dash software — where you design layouts and set alarm thresholds for every channel you want to monitor. Skipping proper threshold setup means a blown engine can develop silently while you're focused on the road or track.

The digital dash warning setup process follows a clear sequence. Work through these steps in order:

• Install NSP on your laptop and connect the uC-10 via USB before touching any alarm settings.
• Create or open a layout in NSP — this is where you assign data channels to screen zones.
• Set alarm thresholds for each critical channel (coolant temp, oil pressure, boost) directly within the layout editor.
• Assign warning colors and alerts to each threshold so the display triggers a visible change when a limit is breached.
• Upload the layout to the uC-10 and verify each alarm fires correctly during a bench test before driving.

What ECUs work with the uC-10 for engine safety monitoring?

Engine safety monitoring through the uC-10 covers a wide range of setups. The dash connects natively to Haltech ECUs over CAN, and it also supports Link ECUs using the IC-7 and Generic dash streams. OBD-II compatibility extends that reach further still.

Does the uC-10 display give you enough screen space for multiple alerts at once?

The uC-10's 10-inch low-profile display delivers real-time visibility across performance data, diagnostics, and active warnings simultaneously. That screen size means you can run multiple alert zones without crowding critical readouts off the layout.

For professional ECU and dash configuration support, Quickbitz offers dyno tuning services in Melbourne. Ensuring your alert thresholds are validated under real load conditions.

Why are alerts still missing after setup?

Missing alerts after a digital dash warning setup almost always trace back to incorrect CAN channel mapping between the ECU and the dash unit. Without the correct stream selected, the Haltech uC-10 digital dash receives no data to trigger warnings. No matter how carefully you configured the alert thresholds.

Did you select the right CAN stream for your ECU?

The uC-10 connects via Haltech CAN natively. It also supports OBD-II and Link ECU streams using the IC-7/Generic dash protocol. Choosing the wrong stream means your alert channels point at data that never arrives. Double-check your stream selection before adjusting any threshold values.

Follow these steps to diagnose the issue:

• Confirm the CAN stream matches your ECU type — Haltech native, OBD-II, or Link Generic.
• Open the channel list in NSP and verify each alert channel shows live data.
• Re-map any channel displaying zero or no signal to the correct ECU output.
• Save and reboot the dash to apply changes.

When should you contact a specialist for Haltech alert configuration?

If remapping channels doesn't restore alerts, the fault likely sits deeper in engine safety monitoring or wiring. Haltech alert configuration errors at the harness level need hands-on diagnosis. Quickbitz, founded in 2009 and specializing in EFI diagnostics and tuning, offers direct technical support at sales@quickbitz.com.au.

FAQ

Why are critical engine alerts missing on the Haltech uC-10?

Missing alerts point to misconfigured CAN bus settings or incomplete channel mapping in the dash software. The uC-10 displays diagnostics only for channels you correctly assign.

What software do you use to configure alerts on the uC-10?

NSP is Haltech's dedicated dash software. You design layouts and set alarm thresholds for every channel you want to monitor.

Who do you contact for expert uC-10 setup support?

Reach Quickbitz at sales@quickbitz.com.au for uC-10 setup support and dyno tuning services in Melbourne.
