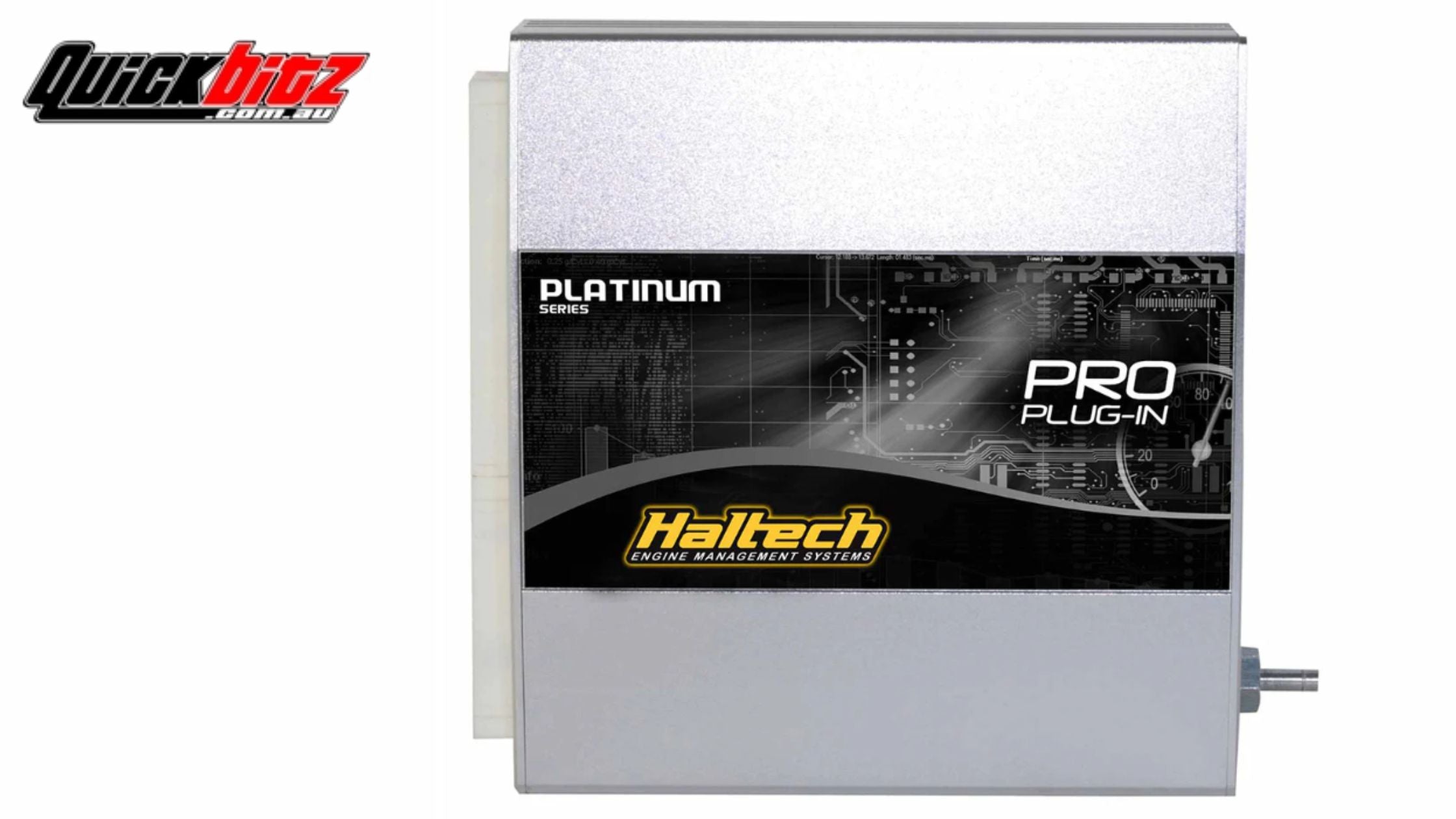

How to Install a Haltech Plug-In ECU: Step-by-Step Guide

Taking the leap from a factory-locked engine control unit to a high-performance standalone system is a rite of passage for any serious car enthusiast. When you choose a Haltech Plug In ECU, you are opting for a blend of professional-grade control and an installation process that respects the integrity of your vehicle's original wiring. The beauty of a plug-and-play system lies in its ability to interface directly with your car’s factory harness, effectively bridging the gap between raw mechanical power and sophisticated digital management without the need for a complete rewire. While the term "plug-in" suggests a simple task, the successful integration of a modern ECU involves more than just a physical connection; it requires an understanding of how the new brain will communicate with your engine’s existing sensors and actuators. Before you dive into the engine bay, it is essential to prepare your workspace and ensure that you have a clear roadmap for the calibration steps that follow the physical install.

The modern performance landscape demands precision, and that is exactly what the Haltech ecosystem provides to builders and tuners alike. By utilizing the factory loom, a Haltech Plug In unit minimizes the potential for electrical interference and "noise" that often plagues custom wire-in jobs. This makes it an ideal solution for those who want to unlock features like advanced boost control, flex-fuel capability, and engine protection protocols while keeping the vehicle relatively stock in appearance. As we walk through this guide, you will see that the installation is the first step in a larger journey of performance optimization, where every sensor reading and software adjustment brings you closer to a perfectly tuned machine.

Can I install a Haltech ECU myself?

This is the question that most DIY builders find themselves asking when browsing the "People Also Ask" sections of major search engines. The answer is a definitive "yes," provided you have a basic understanding of automotive electronics and a methodical approach to following technical documentation. Installing a Haltech Plug In ECU is significantly less daunting than a full universal wire-in harness because the heavy lifting of pin-to-pin mapping has already been done for you by Haltech’s engineers. Most enthusiasts can complete the physical installation in a single afternoon using standard hand tools, making it one of the most rewarding upgrades you can perform in your own garage.

However, the physical connection is only half the battle; the "setup" phase is where the real magic happens. Once the ECU is mounted and plugged in, you must use either the Elite Software Programmer (ESP) or the Nexus Software Programmer (NSP) to load a base map that matches your vehicle's specific engine configuration. This software-driven step ensures that the ECU knows how to interpret the signals from your crank and cam sensors, allowing the engine to fire up for the first time. It is important to treat this phase with the same care as the mechanical install, as a single incorrect setting in the software can lead to poor running conditions or, in extreme cases, mechanical failure.

Pre-Installation: Preparing Your Vehicle for Success

Before you even touch the new ECU, you must ensure that your vehicle's mechanical foundation is rock solid. A standalone ECU is a powerful tool, but it cannot compensate for a failing fuel pump, a clogged injector, or a vacuum leak. Begin by disconnecting the negative terminal of your battery to prevent any accidental short circuits while you are working near the factory harness. This is also a good time to inspect the condition of your factory ECU connectors for any signs of corrosion or "pin push," where a wire has become loose within the plastic housing.

A key part of the Haltech plug-in installation steps involves identifying where the new unit will live. In most cases, the Haltech unit is designed to fit directly into the factory ECU location, often using the original mounting brackets. If your specific kit requires an adapter box, ensure you have a clear area to mount it where it won't be subjected to excessive heat or moisture. Cleanliness is paramount during this stage; ensure that no dust or debris enters the factory harness plugs, as this can lead to intermittent connection issues that are notoriously difficult to diagnose later on.

The Physical Installation Process

Once the battery is disconnected and the workspace is clear, the actual installation of the Haltech Plug In system begins. You will carefully remove the factory ECU, usually held in by a few bolts or a plastic clip system. When unplugging the factory loom, avoid pulling on the wires themselves; instead, press the locking tabs and pull from the connector housing. The Haltech unit should then slide into place, or connect via the provided adapter harness. This Haltech wiring harness guide principle is simple: if the connector doesn't click into place with moderate pressure, stop and check for bent pins.

After the ECU is physically seated, you may need to run additional wires for auxiliary sensors that the factory harness didn't originally include. For example, many builders add an aftermarket wideband O2 sensor or a MAP sensor to replace a restrictive factory MAF. These additional connections are usually handled through an auxiliary port on the Haltech unit or the adapter box. For those who want to ensure every wire is perfectly routed and terminated, you can contact us to consult with experts who can provide custom loom extensions or specific sensor advice.

Software Integration and Initial Power-Up

With the physical install complete, it is time to bring the system to life. Reconnect your battery and turn the ignition to the "ON" position, but do not attempt to start the engine yet. You should see the status LEDs on the Haltech unit illuminate, indicating that it is receiving power. Connect your laptop using the provided USB cable and open the relevant Haltech software. The first thing you will do is "Go Online" with the ECU, which allows the software to pull the current configuration from the hardware.

One of the most valuable ECU plug-in install tips is to always check your sensor calibrations before the first start. Look at the software's dashboard and verify that the coolant temperature and air temperature readings look realistic. If the car is cold and it's 70 degrees outside, the sensors should read close to that. Press the throttle pedal and watch the Throttle Position Sensor (TPS) percentage move smoothly from 0% to 100%. If these basic readings are incorrect, the ECU will not be able to calculate the correct amount of fuel or ignition timing, which can lead to a frustrating "no-start" scenario.

Loading the Base Map and First Start

Haltech provides an extensive library of base maps for most popular vehicles. These maps are designed to get your engine running and idling so that you can check for leaks and transport the car to a professional tuner. Select the map that most closely matches your engine and injector size, then "Upload" it to the ECU. Once the upload is complete, it is a good practice to cycle the ignition off and back on to ensure the new settings are fully initialized.

When you are ready for the first start, keep a close eye on the wideband O2 reading. As the engine fires, the AFR (Air-Fuel Ratio) should stabilize as the engine reaches operating temperature. If the engine starts but immediately dies, you may need to adjust the "Prime Pulse" or "Cranking Fuel" settings. Remember that the base map is a starting point, not a finished tune. You should avoid driving the car under high load or boost until a professional has verified the ignition timing and fueling across the entire RPM range.

Routing Auxiliary Sensors and Vacuum Lines

Many Haltech Plug In kits include a built-in MAP sensor, which requires a vacuum line to be routed from the intake manifold to the ECU. This line should be as short as possible and free of any kinks. Use a dedicated vacuum port on the manifold that is a "post-throttle body" to ensure the ECU sees an accurate representation of the pressure inside the cylinders. For vehicles that originally used a MAF sensor, this transition to a Speed Density (MAP-based) tuning model is one of the biggest performance upgrades you will experience.

Additionally, if you are installing a CAN-based wideband controller, ensure the CAN high and CAN low wires are twisted together to minimize electromagnetic interference. This digital communication allows the ECU to receive ultra-fast AFR data, which is critical for the "Short Term" and "Long Term" fuel trim functions. A well-routed sensor setup not only looks professional but also ensures the longevity and reliability of your engine management system by providing the cleanest possible data to the processor.

Troubleshooting Common Installation Issues

Even with a plug-and-play kit, you might encounter a few hurdles. The most common issue is a "No Communication" error between the laptop and the ECU. This is often solved by checking the USB drivers or trying a different USB port on your computer. Another frequent problem is the "Trigger Error," where the ECU cannot see the engine turning over. This usually points to a configuration error in the software or a dirty crank sensor. Always refer back to the Haltech wiring diagrams to verify that the ECU pins are receiving the signals they expect.

If the engine is misfiring or running on fewer than all cylinders, check your ignition settings. The Haltech must be told whether you are running "Wasted Spark" or "Sequential" ignition. Getting this wrong can lead to spark plugs firing at the wrong time or not firing at all. Most plug-in kits will have this pre-configured in the base map, but it is always worth a double-check if you have modified your ignition system with aftermarket coils or a high-output CDI box.

The Role of Data Logging in Your Install

Once the car is running, your best friend is the data logging feature. By recording every sensor input during a drive, you can see exactly how the engine is responding to different conditions. Did the air temperatures spike during a pull? Did the fuel pressure drop at high RPM? The log file will tell you. For a DIY installer, this is the ultimate validation of your work. It allows you to "see" inside the engine's brain and confirm that your installation of the Haltech Plug In ECU is working exactly as intended.

Modern software like NSP makes viewing these logs incredibly intuitive. You can overlay the AFR target against the actual AFR to see how well the VE table is modeled. If you see a consistent lean spot, you know exactly which cell in the fuel map needs adjustment. This iterative process of logging, analyzing, and adjusting is how world-class tunes are built, and it all starts with a solid physical installation and a well-configured base map.

Advanced Features: DBW and Flex Fuel

If your vehicle features Drive-By-Wire (DBW) throttle control, the Haltech system offers a level of safety and customization that is far beyond the factory settings. You can adjust the throttle response curve to make the car feel more linear or more aggressive, depending on your driving style. During the install, the software will require a "Throttle Calibration" where you move the pedal through its full range. This ensures the ECU knows exactly where 0% and 100% throttle are located, providing a fail-safe operation that will shut down the engine if a sensor mismatch is detected.

Flex Fuel is another popular addition. By installing a sensor in the fuel return line, Haltech can automatically adjust the fuel volume and ignition timing based on the ethanol content in your tank. This means you can run pump gas one day and E85 the next without ever having to touch a laptop. The plug-in nature of the ECU makes adding these sensors straightforward, as the inputs are already waiting for you. This versatility is why the Haltech ecosystem remains at the top of the performance market.

Frequently Asked Questions (FAQs)

Does a Haltech Plug In ECU void my vehicle's warranty?

In most cases, yes. Modifying your engine's management system is a significant change that most manufacturers will use as grounds to void the powertrain warranty. However, because it is a plug-and-play system, it is relatively easy to revert the car back to stock if necessary. Always check your local laws and warranty terms before proceeding.

Can I use my factory sensors with Haltech?

Yes, that is the primary advantage of the plug-in system. It is designed to work with your OEM coolant, air temp, TPS, and trigger sensors. You only need to add aftermarket sensors if you want to access features your car didn't have from the factory, such as wideband O2 or oil pressure monitoring within the ECU.

What happens if I lose the base map?

Haltech maintains a comprehensive database of base maps on their website and within the software itself. You can always download a fresh map for your vehicle. It is highly recommended to save a backup of your specific tune on a cloud drive or USB stick so you never lose your progress.

Do I need special tools for the installation?

For a standard plug-in install, you only need basic hand tools like a socket set, screwdrivers, and perhaps a wire stripper if you are adding auxiliary sensors. A laptop with the Haltech software installed is the most important "tool" for the digital portion of the setup.

Can I run my car on E85 with a Haltech Plug In?

Yes, provided your fuel system (injectors, pump, and lines) is compatible with ethanol. You will need to add a Flex Fuel sensor and enable the function within the software. Once calibrated, the ECU will seamlessly switch between fuel types based on the sensor's reading.

Conclusion: Final Steps for a Professional Finish

Installing a Haltech Plug In ECU is more than just a performance upgrade; it is an investment in the reliability and capability of your vehicle. By following a methodical approach and utilizing the power of modern engine management software, you can unlock a level of control that was once reserved for professional race teams. The transition from a factory-constrained engine to a fully tunable powerhouse is a rewarding experience that pays dividends every time you hit the throttle. However, the path to perfection often requires a professional touch to ensure that every variable is optimized for maximum power and safety.

At Quickbitz, we are dedicated to helping enthusiasts realize the full potential of their builds. Whether you are looking for the perfect Haltech Plug In kit for your specific model or you need professional tuning services to dial in your setup on the dyno, our team has the tools and experience to help. We pride ourselves on providing the highest level of support for the Haltech community, ensuring that your installation is just the beginning of a successful performance journey. For all your EFI, sensor, and tuning needs, Quickbitz is your premier destination for automotive performance excellence.
