How Automotive Electrical Connectors Work Guide

The modern motor vehicle is no longer just a collection of mechanical gears and pistons; it is a sophisticated mobile computer network that relies on thousands of precise interactions every second. At the heart of this complexity are automotive electrical connectors, the critical junctions that allow power and data to flow seamlessly between the engine control unit and the various sensors scattered throughout the chassis. Without these high-performance plugs, the intricate loom of wires would be nothing more than a tangled mess, incapable of supporting the advanced safety and infotainment systems that Australian drivers have come to expect.

In the harsh environments of the Australian outback or the salty humid air of our coastal cities, the reliability of a vehicle plug and pin system is tested to its absolute limit. These components must maintain a perfect electrical bond while being subjected to constant engine vibrations, extreme thermal cycling, and potential exposure to fuel or oil. Every time you turn the key or press the start button, hundreds of these connectors engage in a "digital handshake," ensuring that your fuel injectors fire at the exact microsecond required for peak efficiency.

Understanding the internal architecture of these components is vital for anyone looking to perform a professional-grade repair or a custom aftermarket installation. A high-quality multi-pin ECU connector set is designed with specific keying and locking features to prevent human error and ensure that every signal reaches its intended destination without interference. In this guide, we will break down the engineering behind these essential parts and explain how they function as the vital bridges within your car's electrical nervous system.

How does an automotive wiring harness function?

An automotive wiring harness acts as the organized circulatory system of your vehicle, bundling together hundreds of individual cables into a single, protected unit that can be easily routed through the engine bay and cabin. The primary role of automotive electrical connectors within this system is to provide modularity, allowing components like the alternator or headlights to be plugged in and replaced without the need for permanent soldering. This design not only speeds up the manufacturing process on the assembly line but also makes modern vehicle maintenance significantly more efficient for technicians and DIY enthusiasts alike.

Within the harness, each wire is carefully color-coded and labeled to ensure that it connects to the correct terminal inside the plug housing. The harness itself is usually wrapped in specialized high-temperature tape or split-convoluted tubing to protect the copper conductors from abrasion against the vehicle's metal frame. When a technician installs a new automotive wiring harness connectors assembly, they are essentially plugging in the communication lines that allow the car's various "brains" to talk to the mechanical hardware.

The efficiency of this system depends entirely on the integrity of the contact points where the wires meet. If a single pin inside a multi-way connector becomes loose or develops high resistance, the entire circuit can fail, leading to diagnostic trouble codes and poor engine performance. This is why the engineering of the housing and the terminal pins is so rigorous, as they must provide a gas-tight seal that prevents oxygen from reaching the metal and causing the dreaded green crust of corrosion.

The Anatomy of a High-Performance Connector

To understand how these systems work, we must look at the four primary components that make up a standard automotive plug:

• The Terminals (Pins and Sockets): These are the metal contacts that actually carry the current. They are typically made from high-conductivity alloys like phosphor bronze or brass and are often plated with tin, silver, or gold to prevent oxidation.

• The Housing: The plastic shell that holds the terminals in place. In the automotive world, this is usually made from PA66 nylon or similar heat-resistant polymers that can withstand engine bay temperatures up to 125°C or higher.

• The Seals: For exterior or engine bay applications, silicone rubber seals are used at the wire entry points and the mating interface to keep out dust and moisture.

• The Locking Mechanism: This includes the primary latch that holds the two halves of the connector together and often a Secondary Locking Device (SLD) or Terminal Position Assurance (TPA) clip to ensure the pins don't back out under vibration.

Signal Integrity and Data Transmission

In the era of modern "Connected Vehicles," connectors are doing much more than just carrying 12-volt power to a lightbulb. They are now tasked with carrying high-speed data for things like reversing cameras, adaptive cruise control, and the CAN-bus network. A multi-pin ECU connector set must be engineered with precise impedance matching and shielding to ensure that electromagnetic interference from the ignition system doesn't corrupt the data packets being sent between modules.

If you are working on a custom project, you may find that you need to reach out to specialists who understand the nuances of these data-heavy systems. You can find expert assistance and a wide range of specialized parts at our contact us page where our technicians are ready to help you navigate the complexities of modern vehicle wiring. Ensuring your data lines are terminated correctly is the difference between a high-tech success and a frustrating series of computer errors.

Essential Types of Connectors for Different Vehicle Zones

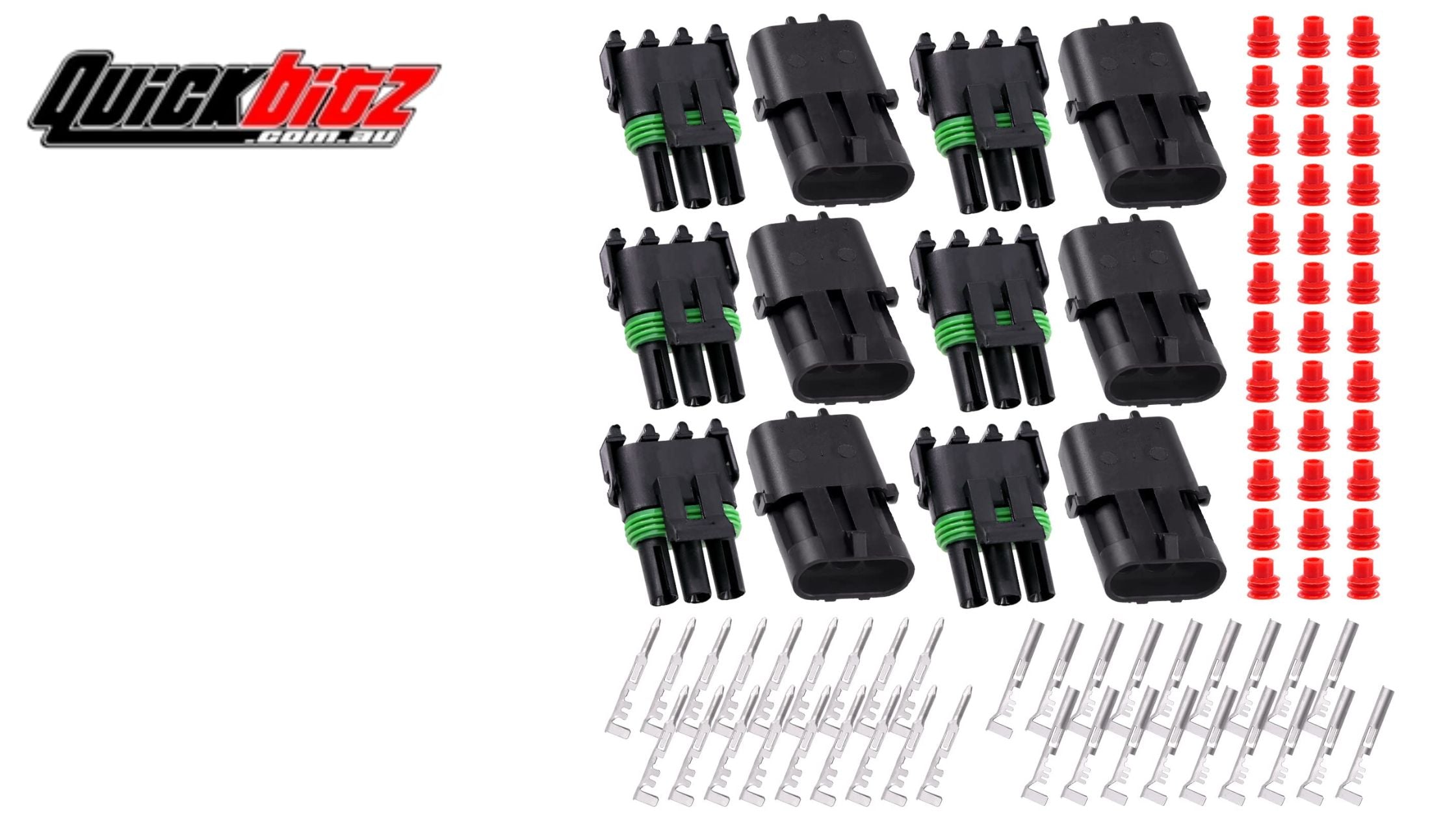

Different areas of the car require different levels of protection and terminal density. For example, the connectors inside the dashboard where it is dry and relatively cool can be simpler, often relying on unsealed blade-style connectors. However, as soon as you move into the engine compartment or under the chassis, the requirements for automotive electrical connectors change dramatically, shifting toward rugged, weather-sealed designs like the Deutsch DT or Aptiv Weather Pack series.

Troubleshooting a Faulty Vehicle Plug and Pin System

When an electrical issue arises, the first place a professional looks is the connector interface. A common diagnostic procedure is the "drag test," where a technician uses a spare male pin to check the tension of the female socket. If the socket has stretched out due to heat or vibration, it won't provide a tight enough grip on the pin, leading to a loose connection that causes heat and eventual failure.

If the pins are physically damaged, you will often need a specialized tool to remove them from the plastic housing without destroying the internal locking tabs. This is where having a dedicated vehicle plug and pin system repair kit becomes invaluable. These kits allow you to replace only the damaged metal components while keeping the original plastic housing, saving you the time and expense of replacing an entire section of the wiring loom.

Best Practices for Installing New Harness Connectors

Whether you are adding a set of driving lights or rewiring an entire race car, the quality of your crimp is the most important factor. You should never use a standard pair of pliers to squeeze an automotive terminal onto a wire. Instead, use a "ratcheting" crimping tool that is designed for the specific terminal type you are using. This creates a "cold weld" between the copper strands and the terminal metal, ensuring there are no air gaps where corrosion can start.

It is also vital to use the correct gauge of automotive-grade wire. Standard household wire is not designed to handle the vibrations and chemical exposure found in a car. Look for "thin-wall" or cross-linked (TXL) insulation, which is more resistant to heat and abrasion. Once your connection is made, using heat-shrink tubing with an internal adhesive lining can provide an extra layer of moisture protection, even on connectors that are already considered "waterproof."

Frequently Asked Questions

Can I spray contact cleaner into a live connector?

It is always safest to disconnect the battery before using any liquid cleaners on your car's electrical system. While many contact cleaners are non-conductive and dry quickly, spraying them into a live circuit could still potentially cause a short if the cleaner hasn't fully evaporated before you reconnect the plug.

What is the difference between a "male" and "female" connector?

In automotive terms, the gender usually refers to the metal terminals themselves rather than the plastic housing. A male connector has the protruding pins, while the female connector (often called the receptacle) contains the sockets that those pins slide into.

Why are some automotive connectors different colors?

Manufacturers often use color-coding (and "keying") to ensure that similar-looking plugs cannot be swapped by mistake. For example, a blue plug might have a different internal plastic tab than a black plug, preventing a technician from accidentally plugging the transmission sensor into the oil pressure sensor.

How do I remove a pin from a connector without the special tool?

While it is tempting to use a small screwdriver or a paperclip, this often damages the delicate plastic "tangs" that hold the pin in place. If these tangs are broken, the pin will simply push out the back of the plug the next time you try to connect it. Using the correct de-pinning tool is always the better option.

Should I solder my automotive connections or crimp them?

In high-vibration environments like a car, a proper crimp is actually superior to solder. Solder can make the copper wire brittle at the joint, which can lead to the wire snapping over time due to engine vibration. A high-quality mechanical crimp allows for slight movement without breaking the electrical bond.

Conclusion

Mastering the complexities of automotive electrical connectors is a core skill for anyone involved in modern vehicle maintenance or modification. From the rugged engine bay plugs that keep your fuel system running to the high-density data connectors that power your dashboard, these components are the unsung heroes of automotive reliability. By following professional installation techniques and performing regular inspections, you can ensure that your vehicle's "nervous system" remains in peak condition for the long haul.
