Push vs Pull to Seat Connectors: Key Differences Guide

If you have ever worked on a vehicle's wiring harness or tackled an EFI build, chances are you have come across two types of automotive electrical connectors that look deceptively similar but behave very differently during assembly: push-to-seat and pull-to-seat connectors. Choosing the wrong type or assembling them incorrectly can lead to poor electrical contact, moisture ingress, and intermittent faults that are notoriously difficult to diagnose. Whether you are replacing a worn sensor plug on your daily driver or building a full custom wiring harness for a performance vehicle, understanding the fundamental difference between these two connector types is essential to getting a reliable, long-lasting result.

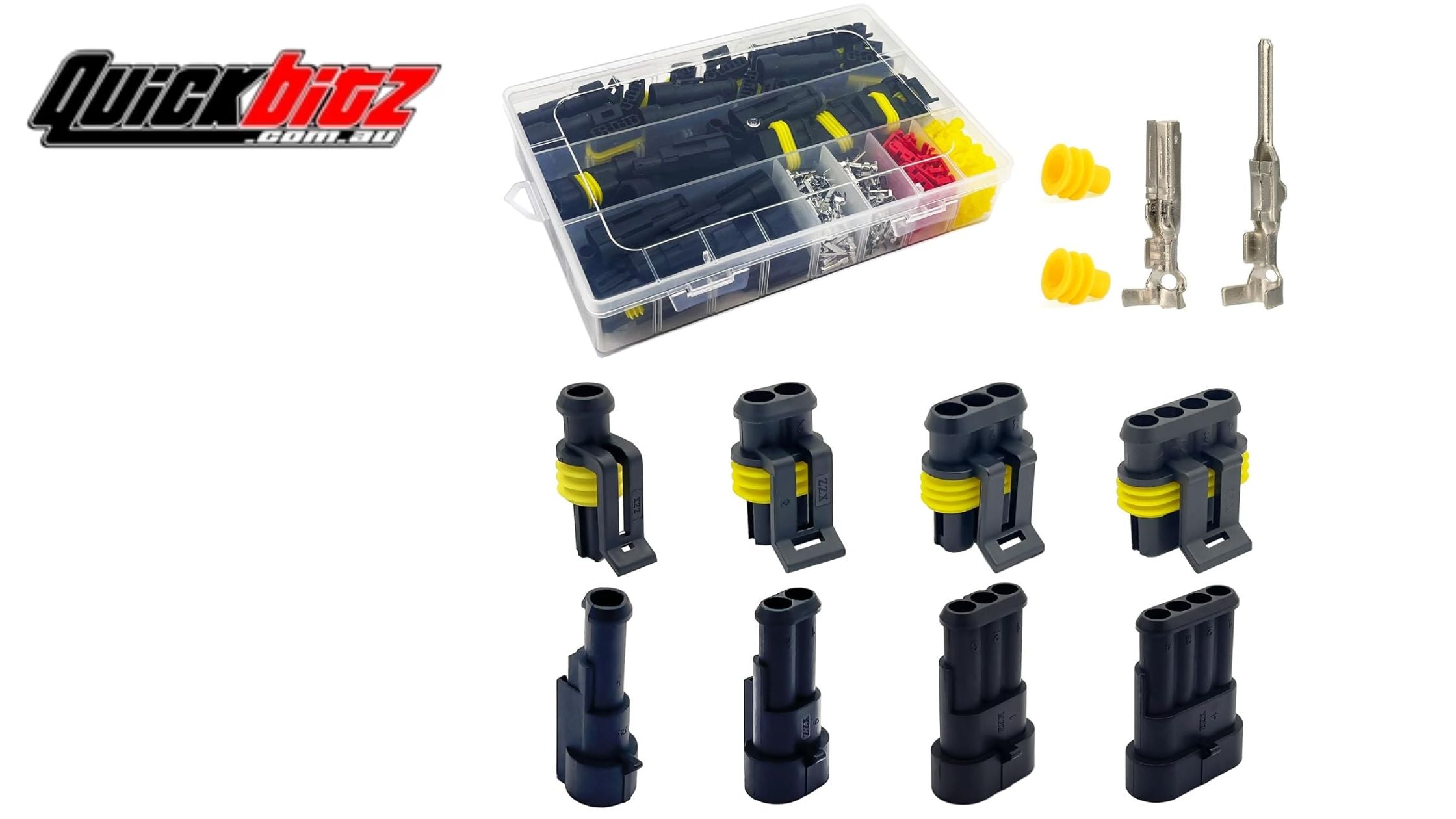

What Is the Difference Between a Push-to-Seat and Pull-to-Seat Automotive Electrical Connector?

The core distinction between these two automotive electrical connectors lies in how the terminal pin is loaded into the connector housing. With a push-to-seat connector, the wire is first stripped and crimped to the terminal pin, and that assembled terminal is then pushed from the rear of the connector housing forward until it clicks and locks into position. It is a straightforward and widely used method across many OEM sensor and injector applications.

With a pull-to-seat connector, the process is the reverse. The bare wire is first fed through the front of the connector housing, out the back. The terminal pin is then crimped onto the stripped wire end. The wire and attached terminal are pulled back through the housing from the front until the terminal seats securely and an audible click confirms it is locked in place. This method relies on a built-in rear seal in the housing that the wire passes through, which is what gives pull-to-seat connectors their excellent environmental sealing properties.

Both methods have their place in automotive wiring, and neither is universally superior to the other. The right choice depends entirely on the application, the connector series being used, and whether environmental sealing is a primary concern for your build.

How Does a Push-to-Seat Connector Work?

Push-to-seat connectors are the most commonly encountered terminal type in mainstream automotive wiring. The assembly process is intuitive: you crimp the pin onto the wire first, then insert the completed terminal into the back of the connector body. As the pin travels forward, a locking tab or lance on the terminal engages with a retention ledge inside the housing cavity. A satisfying click signals that the terminal is fully seated and locked in place.

Many push-to-seat connectors also incorporate a Terminal Position Assurance (TPA) device, which is a secondary locking clip that slides into the housing once all terminals are seated. The TPA prevents any terminal from being pushed back out through the rear, which is a common failure mode known as terminal push-back. Push-to-seat connectors are found across a wide range of applications including injector connectors, ignition coil plugs, and various sensor connections.

Some well-known examples of push-to-seat connector kits used in Australian performance and OEM applications include the Bosch EV1 injector connector, the Delphi GM LS2 ignition coil plug, and the Delphi automotive plug types used on throttle position sensors and idle air control valves. These are available as complete plug and pin kits, making sensor or injector harness repairs straightforward.

Key Advantages of Push-to-Seat Connectors

• Simpler assembly process, ideal for high-volume harness production

• Wide range of available housing types and pin counts

• Compatible with TPA secondary locking for added retention security

• Easier to rework or re-pin if a mistake is made during assembly

• Commonly used with standard unsealed and semi-sealed connector housings

How Does a Pull-to-Seat Connector Work?

The pull to seat pin housing operates on a different assembly logic that prioritises environmental sealing. The housing itself contains a built-in rear seal, often made from silicone rubber, with individual holes sized to match specific wire gauges. Before crimping takes place, the wire is passed through the front face of the connector housing and out the back, threading through the built-in seal as it goes.

Once the wire is through, you strip the end, insert it into the terminal, and perform a double crimp, one on the wire conductor and one on the insulation for strain relief. You then pull the wire back through the connector from the back until the terminal locks into position inside the housing cavity. The locking tab on a pull-to-seat terminal is oriented in the opposite direction to that on a push-to-seat terminal, which is why the two types are not interchangeable.

The Delphi Metri-Pack 150 series is the most widely recognised pull-to-seat connector system in the Australian automotive and motorsport space. It is extensively used for coolant temperature sensors, air intake temperature sensors, map sensors, and oil pressure sensors. The triple-rib peripheral silicone rubber seal makes these connectors highly resistant to moisture, dust, and underbonnet contaminants.

Key Advantages of Pull-to-Seat Connectors

• Excellent environmental sealing due to the built-in rear wire seal

• The terminal physically cannot be pushed back out through the front of the housing

• Ideal for underbonnet, motorsport, and outdoor applications

• Compact sealed design with no need for individual wire seals on each terminal

• Reliable low-energy electronic applications such as sensor circuits

 Push-to-Seat vs Pull-to-Seat: Side-by-Side Comparison

To make the differences clearer at a glance, the table below summarises the key characteristics of each connector type across the most important factors for automotive wiring applications.

Which Connector Type Should You Use for Your Application?

Choosing between the two types comes down to the specific demands of your application. If you are replacing a factory injector connector or an ignition coil plug on a GM LS engine, a push-to-seat kit is almost certainly what you need. These applications do not typically expose the connector to direct water ingress, and the push-to-seat format allows for efficient, repeatable assembly during harness building.

If you are working with engine sensors that live in harsher underbonnet environments, such as coolant temperature sensors, oil pressure senders, intake air temperature sensors, or map sensors, a pull-to-seat connector kit is generally the better choice. The integrated housing seal provides a level of protection that a standard push-to-seat connector simply cannot match without adding individual wire seals.

For those building custom EFI harnesses, it is worth noting that the connector type specified in your ECU harness documentation should always take precedence. Haltech, MoTeC, LINK ECU, and Emtron harness guides all specify particular connector types for each sensor or actuator channel. Using the correct push to seat connector kit or pull-to-seat equivalent ensures compatibility and maintains the integrity of the wiring system as designed.

If you are unsure which connector type is correct for your specific sensor or harness, our team is here to help. Get in touch with the Quickbitz team and we can point you to the exact plug and pin kit to suit your application.

Understanding Delphi Metri-Pack and Why It Matters for Sensor Wiring

The Delphi Metri-Pack series is the backbone of OEM sensor connector technology across GM, Holden, and a wide range of modern vehicles used throughout Australia. The Metri-Pack 150 series is the most commonly encountered pull-to-seat format, and it covers an enormous range of sensor applications. Understanding Delphi automotive plug types is important because the Metri-Pack range includes both sealed (pull-to-seat) and unsealed variants that can look very similar to the untrained eye.

Delphi part numbers for these connector systems are typically eight digits, such as those cross-referencing to Haltech HT-030410 or HT-030411 series plug and pin kits. The sealed Metri-Pack 150 connectors use triple-rib peripheral silicone rubber seals and are designed for low-energy electronic circuits where maintaining a clean, consistent signal is critical. Moisture or contamination in a sensor connector can introduce resistance, corrupt sensor readings, and cause frustrating drivability faults.

When sourcing replacement Delphi Metri-Pack connectors, it is vital to match not only the pin count but also the gender of the housing (male or female), the wire seal rating, and whether the connector is the sealed pull-to-seat or the unsealed push-to-seat variant. Using a high-quality reproduction connector kit that accurately matches OEM specifications ensures you maintain reliable sensor signal transmission and longevity in your wiring repairs.

Common Mistakes to Avoid When Working With Automotive Electrical Connectors

One of the most frequent errors in wiring harness repair is using a push-to-seat terminal in a pull-to-seat housing, or vice versa. Because the locking tabs are oriented in opposite directions, the terminal will not seat properly, or it will appear to click into position but will pull out under load. Always identify the connector type before purchasing replacement parts.

Another common mistake is over-crimping or under-crimping the terminal barrel onto the wire conductor. Under-crimping creates a high-resistance joint that can cause intermittent sensor faults, while over-crimping can damage the conductor strands and lead to premature failure. Using a quality ratchet crimping tool sized specifically for the terminal series being used is the best way to achieve a consistent, reliable crimp.

• Always confirm whether the housing is pull-to-seat or push-to-seat before starting

• Match the wire gauge to the terminal barrel size specified by the manufacturer

• Use the correct crimping tool for the terminal series to avoid under or over-crimping

• With pull-to-seat connectors, thread the wire through before crimping, not after

• Verify the terminal is fully seated by gently pulling on the wire after assembly

• Never use push-to-seat terminals in a pull-to-seat housing, as they are not interchangeable

It is also worth noting that once a pull-to-seat terminal is seated in the housing, it is very difficult to remove without damaging either the terminal or the housing. If you make a wiring error, the most practical solution is often to cut the connector off the branch and start again with a new kit. This is why confirming your wire colour orientation before threading wires through the housing is an important step that should never be rushed.

How Do These Connector Types Fit Into a Full EFI Wiring Harness?

In a complete EFI wiring harness, you will typically encounter both push-to-seat and pull-to-seat connectors used in different areas of the harness depending on the sensor or actuator being connected. Fuel injectors, ignition coils, idle air control valves, and throttle position sensors are commonly served by push-to-seat connector kits. Coolant temperature sensors, intake air temperature sensors, MAP sensors, and oil pressure sensors more commonly use the pull-to-seat sealed format.

ECU connector bodies, such as the TYCO and AMP Superseal ranges used by Haltech and other aftermarket engine management systems, are a separate category again. These use their own pin specifications and are not interchangeable with standard Delphi sensor connector formats. Understanding the full range of automotive electrical connectors used in your system makes sourcing replacement parts far easier and ensures your harness repairs meet the original build quality.

When building a harness from scratch, it is advisable to lay out all required connector kits by sensor type and confirm both the connector series and the pin count before beginning the wiring work. Having a structured approach to connector selection reduces the risk of mismatched parts and ensures the finished harness is both functional and professionally presented.

Frequently Asked Questions

Can I use a push-to-seat terminal in a pull-to-seat housing?

No. Push-to-seat and pull-to-seat terminals are not interchangeable. The locking tabs are oriented in opposite directions, meaning a push-to-seat terminal will not lock correctly in a pull-to-seat housing. Attempting this can result in a connector that appears assembled but allows the terminal to pull free under load, creating an intermittent or open circuit. Always use the correct terminal type for the housing you are working with.

How do I know if my connector is push-to-seat or pull-to-seat?

The easiest way to identify the connector type is to look at the back of the housing. A pull-to-seat housing will have a built-in rubber seal with pre-formed holes for each wire to pass through. A push-to-seat housing will have open cavities at the rear where the pre-crimped terminals are inserted. Comparing the part number of your existing connector against a supplier's catalogue will also quickly confirm the type.

What is a Delphi Metri-Pack 150 connector?

The Delphi Metri-Pack 150 is a sealed pull-to-seat connector series widely used for engine sensor connections in GM vehicles and many other automotive applications. It uses a triple-rib peripheral silicone rubber seal built into the housing rear, and terminals are crimped onto the wire after being passed through the housing. The series is rated for underbonnet use and is suitable for low-energy sensor circuits requiring protection from moisture and contamination.

What tools do I need to assemble pull-to-seat connectors?

For pull-to-seat connector assembly, you will need a quality ratchet crimping tool sized for the terminal series being used (for example, Metri-Pack 150 terminals require a specific die set), a wire stripper, and optionally a terminal pick or removal tool for inspection or rework. Some workshops also use a connector seating tool to verify that the terminal is fully locked before the assembly is put into service.

Are push-to-seat connector kits available with genuine Delphi terminals?

Yes. Many high-quality push-to-seat connector kits are available with genuine Delphi terminals, and some suppliers also offer kits with OEM-spec reproduction terminals that meet or exceed OEM specifications. When selecting a kit, look for products that specify the terminal brand and confirm they cross-reference with known OEM part numbers. Using genuine or high-quality reproduction terminals ensures a reliable crimp and consistent electrical contact across the connector's service life.

Conclusion

Understanding the difference between push-to-seat and pull-to-seat automotive electrical connectors is not just technical trivia; it directly affects the reliability and longevity of your vehicle's wiring system. Push-to-seat connectors offer ease of assembly and wide availability across injector, coil, and actuator applications. Pull-to-seat connectors deliver superior environmental sealing, making them the preferred choice for sensor connections in demanding underbonnet and motorsport environments.

Getting these two connector types confused can result in wiring faults that are difficult to trace, costly to repair, and frustrating to deal with on the road or at the track. Taking the time to correctly identify the connector series, source the right plug and pin kit, and follow the correct assembly method will save significant time and headaches down the line.

At Quickbitz, we stock a comprehensive range of push-to-seat and pull-to-seat connector kits including Bosch EV1 injector connectors, Delphi GM sensor plugs, LS ignition coil connectors, Delphi 3-pin pressure sensor plugs, and ECU pin kits for TYCO and AMP Superseal harness connectors. All our connector kits are high-quality reproductions or genuine OEM parts, cross-referenced to known part numbers so you can source with confidence. Whether you are a weekend enthusiast or a professional tuner, Quickbitz has the wiring products to support your build.
