• Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion

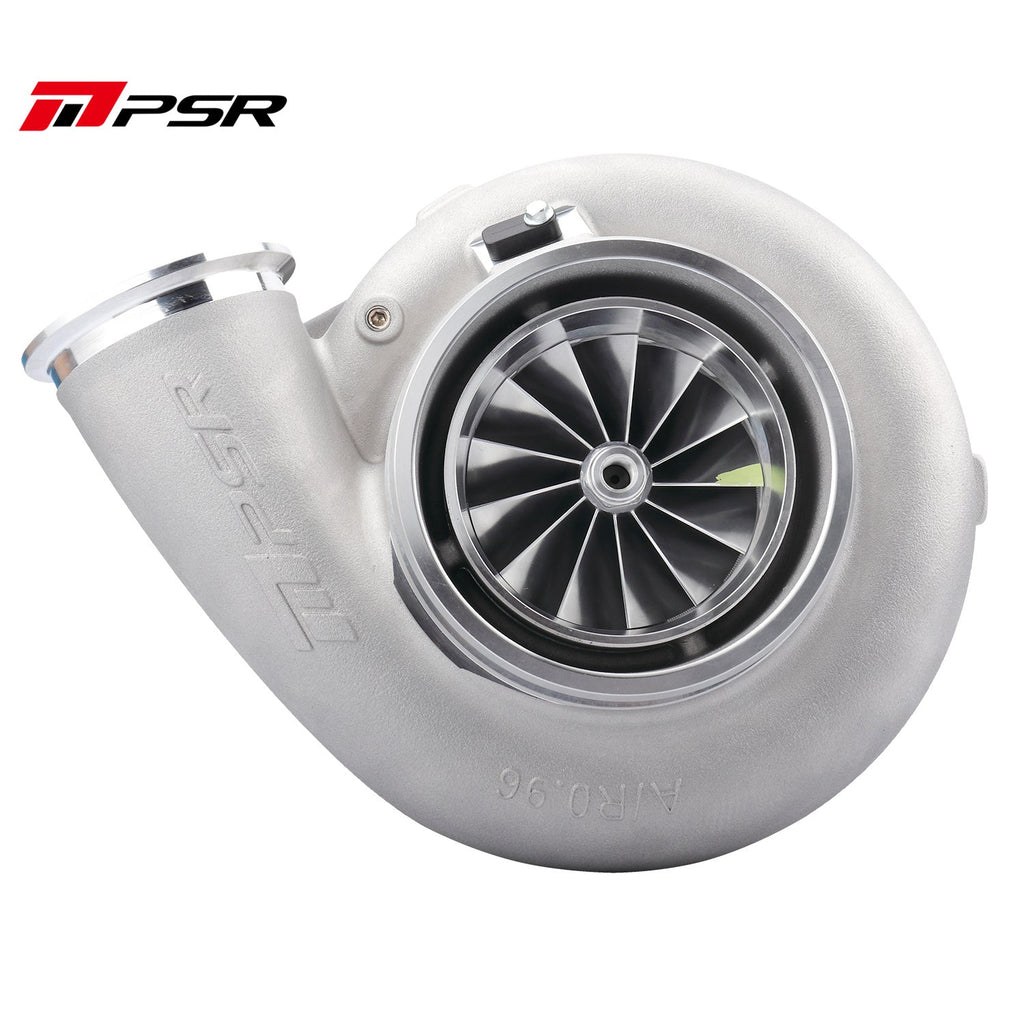

  • 13 Blade PTG-Aero billet compressor wheel 106mm inducer produces up to 3000 hp
  • 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
  • Fin cooled aluminum center housing, lighter weight
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • Outline interchangeable with GTX55 Gen II turbos
  • Compressor Wheel: 106*144mm
  • Turbine Wheel: 118*112mm
  • Compressor Inlet: 6” Hose
  • Compressor Outlet: 4” V-band
  • Compressor Housing A/R: 0.96
  • Turbine Inlet: 3.5” V-Band
  • Turbine Outlet: 5” V-Band
  • Turbine Housing A/R: 1.25
  • Oil Feed: See graph below(OIL INLET) (1mm restrictor will be needed, prevent higher than 45psi oil pressure into turbocharger’s internals)
  • Oil Drain: See graph in pictures (OIL OUTLET)
