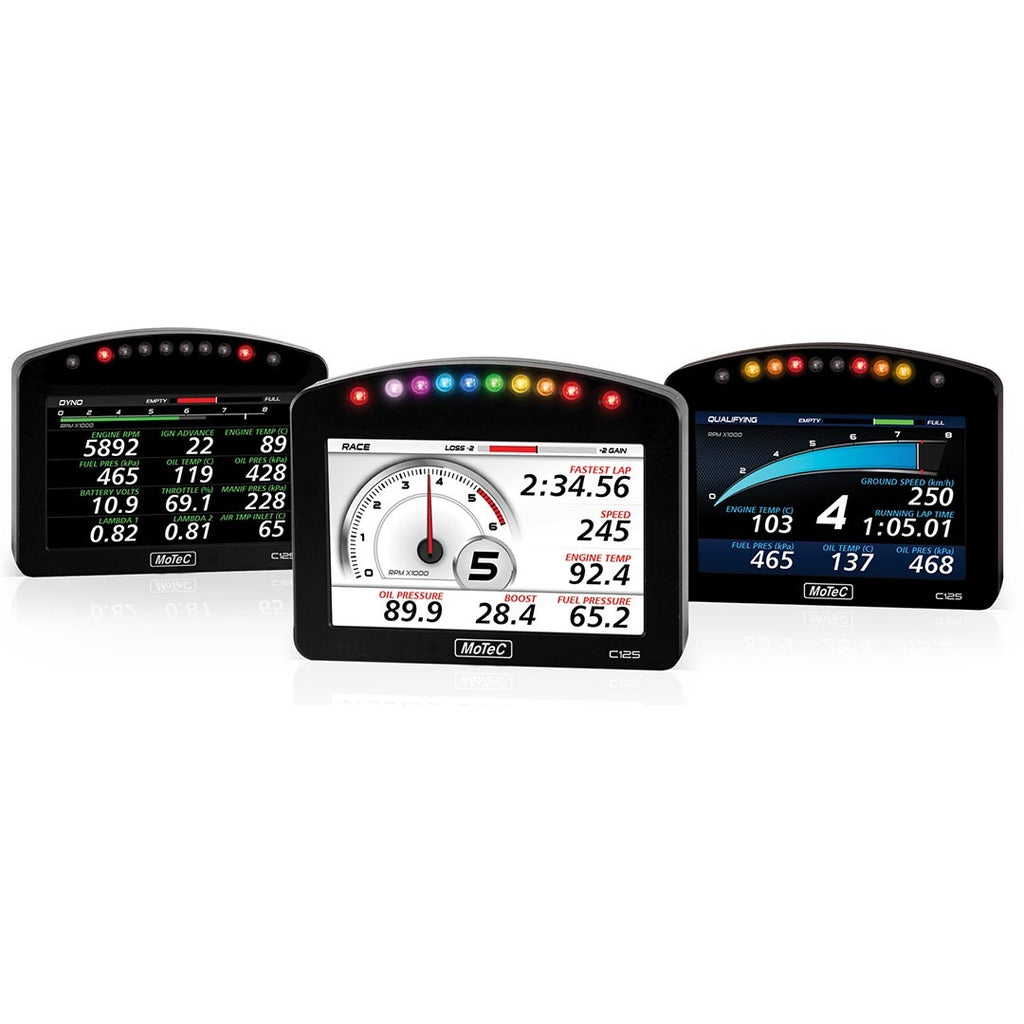

C125 RACE LOGGING KIT (Enabled + 128M Log Incl)
DESCRIPTION
The C125 Race Logging kit is a cost-effective, full colour, plug and play solution that offers professional level features without the hassle of a customised installation. It provides a complete, race-ready display system that can be adapted and expanded to suit various applications.
The C125 in this Kit comes with 120Mb internal logging which can be upgraded to USB logging at anytime.
The Display Can be fully customised using the optional Display Creator software and can incorporate live video from an on-board camera input.
SPECIFICATIONS
Motec | 18062 | Data Acquisition & Display
Kit Contains: 18060 - C125 Colour Display Logger, 29618 - C125 120MB Logging, 61260 - C125 Accessory Kit with Loom (contains 41304 GPS L10 10 Hz, 61221 - Two Button Loom, 61225 - Network Cable RJ45 1.5m, 62204 - C125 Race Loom Terminated)
High resolution colour LCD display
120 MB internal logging with optional USB logging
Controller (with C125 I/O Upgrade – optional)
Display size 126 mm (5" approx)
High brightness for sunlight readability
Displayed channels, labels and colours are configurable on 10 supplied layouts and 16 colour schemes
48 user-defined, scrollable message lines with programmable overrides
3 programmable modes with customisable labels, e.g Practice, Warm-Up and Race
10 full colour (RGB) LEDs; colour, function and intensity are fully programmable
Suitable for bikes, cars, marine and industrial applications
Supports Wideband Lambda from MoTeC PLMs or LTCs
Easily integrates with MoTeC CAN based products such as GPS, shift lights, ECUs and expanders. Full I/O expansion is available with use of E888 and E816 expanders.
GPS Lap Timing
Supports T2 Telemetry (optional)
Composite video input allows for live on-screen footage, for example from a rear view camera (requires Display Creator)
C125 now features an IP67 rated housing and diffused LEDs
