C127 RACE DISPLAY KIT (Enabled)
DESCRIPTION

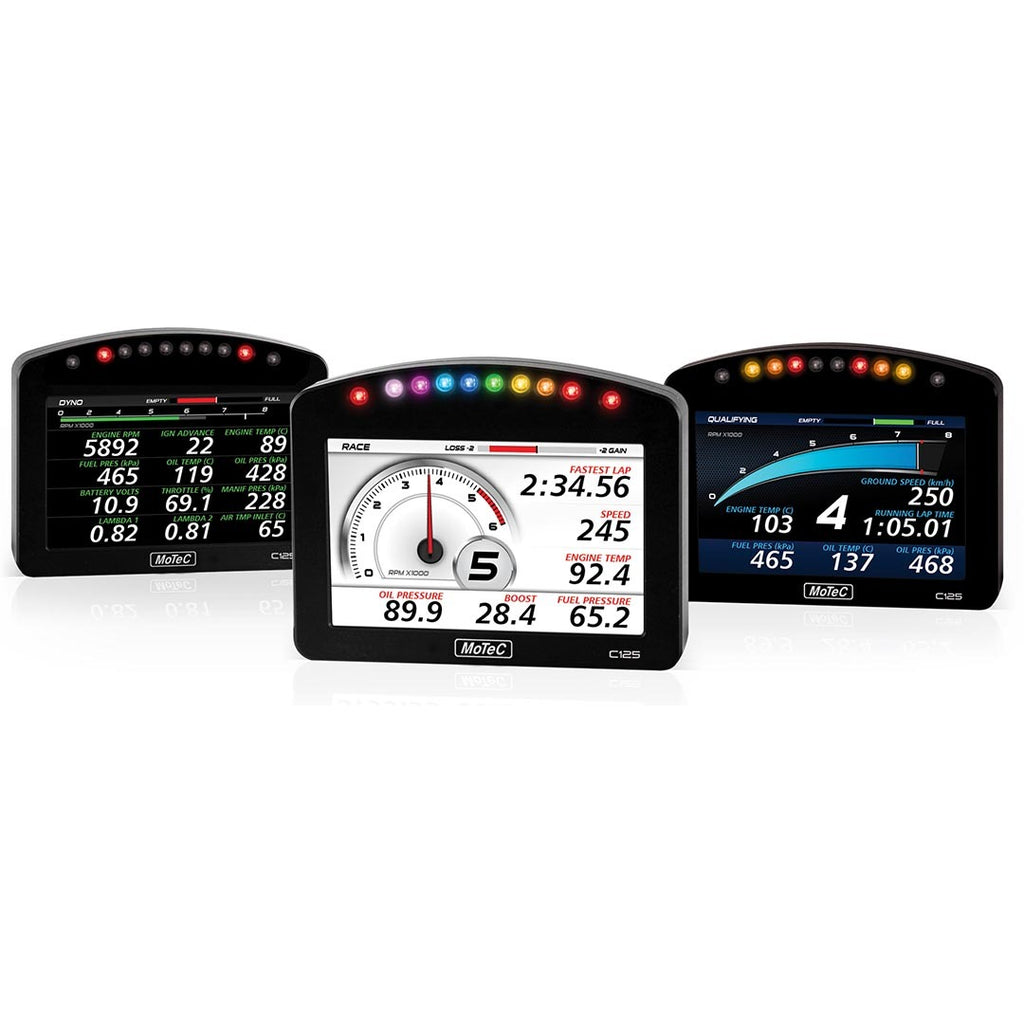

The C127 Race Display Kit is a cost-effective, full colour, plug and play solution that offers professional level features without the hassle of a customised installation. It provides a complete, race-ready display system than can be adapted and expanded to suit various applications.
The C127 in this kit can be upgraded to a logger at any time, with both USB and internal logging options available. The Display can be fully customised with the option Display creator Software, and can incorporate live video from an on-board camera input.
SPECIFICATIONS
Motec | 18049 | Data Acquisition & Display
Kit Includes: 18048 - C127 Colour Display Logger, 61260 - C125 Accessory Kit (includes 41304 - DPS L10 10 Hz, 61221 - Two Button Loom, 61225 - Network Cable RJ45 1.5m, 62204 - C125 Race Loom Terminated
- High Resolution Colour LCD display
- Optional 120MB Internal Logging and USB Logging
- Controller (with C127 I/O Upgrade - optional)
- Display Size 178mm (7")
- High Brightness for Sunlight Readability
- Displayed Channels, labels and colours are configurable on 10 supplied layouts and 16 colour schemes
- 48 user-defined, scrollable message lines with programmable overrides
- 3 Programmable modes with customisable labels eg: Practice, Warm-Up and Race
- 16 Full Colour (RGB) LED's; Colour, Function and intensity are fully programmable
- Suitable for Cars, Marine and Industrial Applications
- Supports Wideband Lambda from MoTeC PLMs or LTCs
- Easily integrates with MoTeC CAN based products such as GPS, shift lights, ECUs and expanders. Full I/O expansion is available with use of E888 and E816 expanders.
- GPS Lap Timing
- Supports T2 Telemetry(optional)
- Composite video inputs allows for live on-screen footage, for example from a rear view camera (requires Display Creator).
