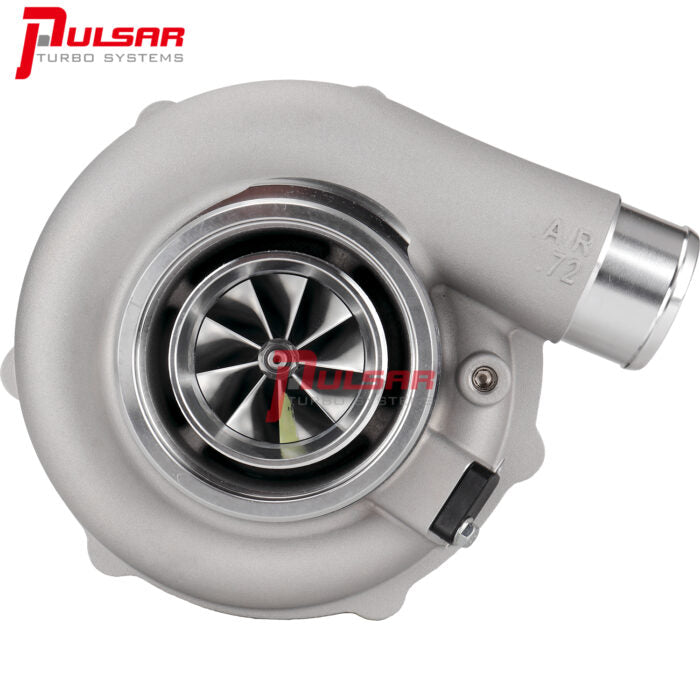

- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Compressor Wheel: 62*76mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4” Hose
- Compressor Outlet: 2.5” V-Band
- Turbine Inlet: T3/T4
- Turbine Outlet: 3” V-Band
- Water Ports: 2-M14 x 1.5
- Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
- Oil Drain: Std T3
