EARLY ACCESS - SHIPPING NOW!
Please Note: While all reasonable care has been taken to support all TCM operating systems known to Haltech, there may be operating systems out there that are not yet supported
If you come across an unsupported operating system, a third party tool will be required to extract the Operating System binary, it would be advised to have access to such a tool before purchasing the Ti6L
Once extracted, please email the operating system binary to support@haltech.com with the title - Ti6L Support or give us a call, we are here to help
We will do our best to add support within 2 business days
This device, in conjunction with a Nexus series 6Lx0 transmission harness (HT-187007), enables a Nexus ECU or VCU to integrate and control a supported GM 6L series automatic transmission. This kit is plug and play with a Rebel LS ECU and terminated harness via the transmission breakout connector.

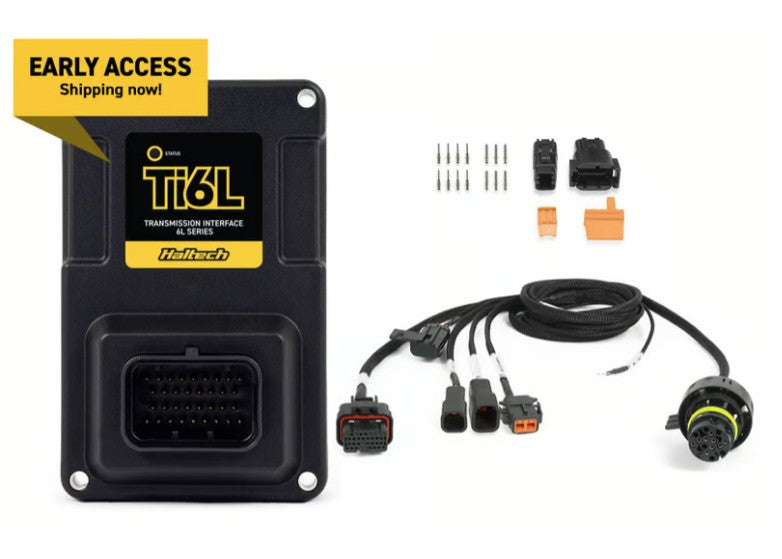

Kit Includes
- HT-196002 Nexus Ti6L
- HT-187007 Nexus Series 6Lx0 Transmission Harness
- Mounting hardware kit
- Opposing connectors
- Quick Start Guide
Features
- Fully terminated transmission harness to suit GM 6Lx0 transmissions
- Plug and Play with a Nexus Rebel LS ECU terminated harness
- Easy Rebel LS Setup Wizard using the Haltech NSP Software or Haltech Connect App
- Convenient TCM OS update support (see Knowledge Base article for more info)
Connector
- 34 pin AMP Superseal Keyway Type 2
Communications:
- CAN 1 (Haltech Protocol)
- CAN 2 (6L TCM Protocol)
Operating voltage:
- 8 - 22V
Ambient temperature
- 105°C / 221°F (max)
IP rating
- IP66
