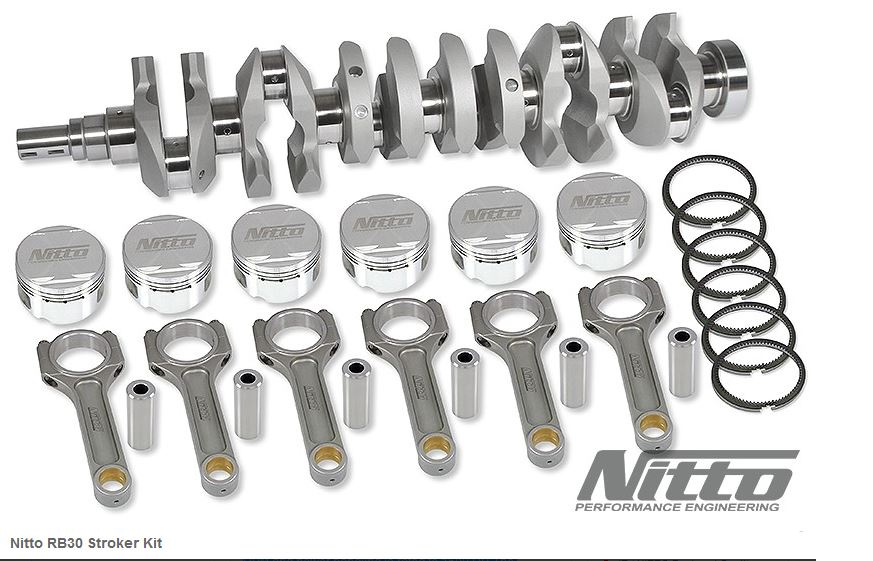

RB30 DOHC 3.2L STROKER KIT (I-BEAM RODS / 86.0MM BORE)
NITTO's RB30 Stroker kits consist of an increased stroke crankshaft made from solid 4340 billet steel, 4340 one piece forged billet steel I-beam connecting rods and unique JE/Nitto forged piston set along with upgraded thick wall gudgeon pins and premium ring sets. Engine capacity is increased from 3.0Ltr to 3.2Ltr which provides more power and torque whilst still retaining a strong ability to rev and produce horsepower at high RPM. All components have been meticulously machined to exacting tolerances and the highest standards. All Nitto stroker kits are far superior to the cheaper manufactured kits currently available that consist of cast forged crankshafts, H-beam connecting rods and high silicone content pistons.
NITTO's RB30 Stroker kits are designed for use in all motorsport classifications including drag racing, drifting and circuit racing. Rotational capability is lifted to 10,000 + RPM and power handling is rated to 1600 HP. The changed harmonics due to the crankshaft material and design results in a much “freer revving” more balanced engine.
Continuous testing and development on and off the track has allowed us to design a kit with extreme strength whilst retaining a sensible reciprocating mass weight.
- CRANKSHAFT
- 4340 Grade Billet Steel
- Fully Counter Weighted
- Undercut Counter Weights
- Knife Edged
- Nitrided Finish
- Fully Balanced
- CONNECTING RODS
- 4340 Grade Billet Steel
- I-Beam Construction
- Quality Oversize 7/16” ARP 2000 Series Bolts
- Optional ARP Custom Age 625 Plus Series Bolts
- Oil Squirter Galleries from Big End
- Oversize 22mm Little End
- PISTONS
- JE / NITTO Produced Quality
- Forged T6 2816 Alloy
- Low Silicone Content
- Contact Reduction Grooves
- Accumulator Groove
- Thick Wall 93 Series Nickel / Carbon Steel Alloy Pins
- JE Pro Seal Premium Ring Sets
