D175 - COLOUR DISPLAY MODULE

DESCRIPTION

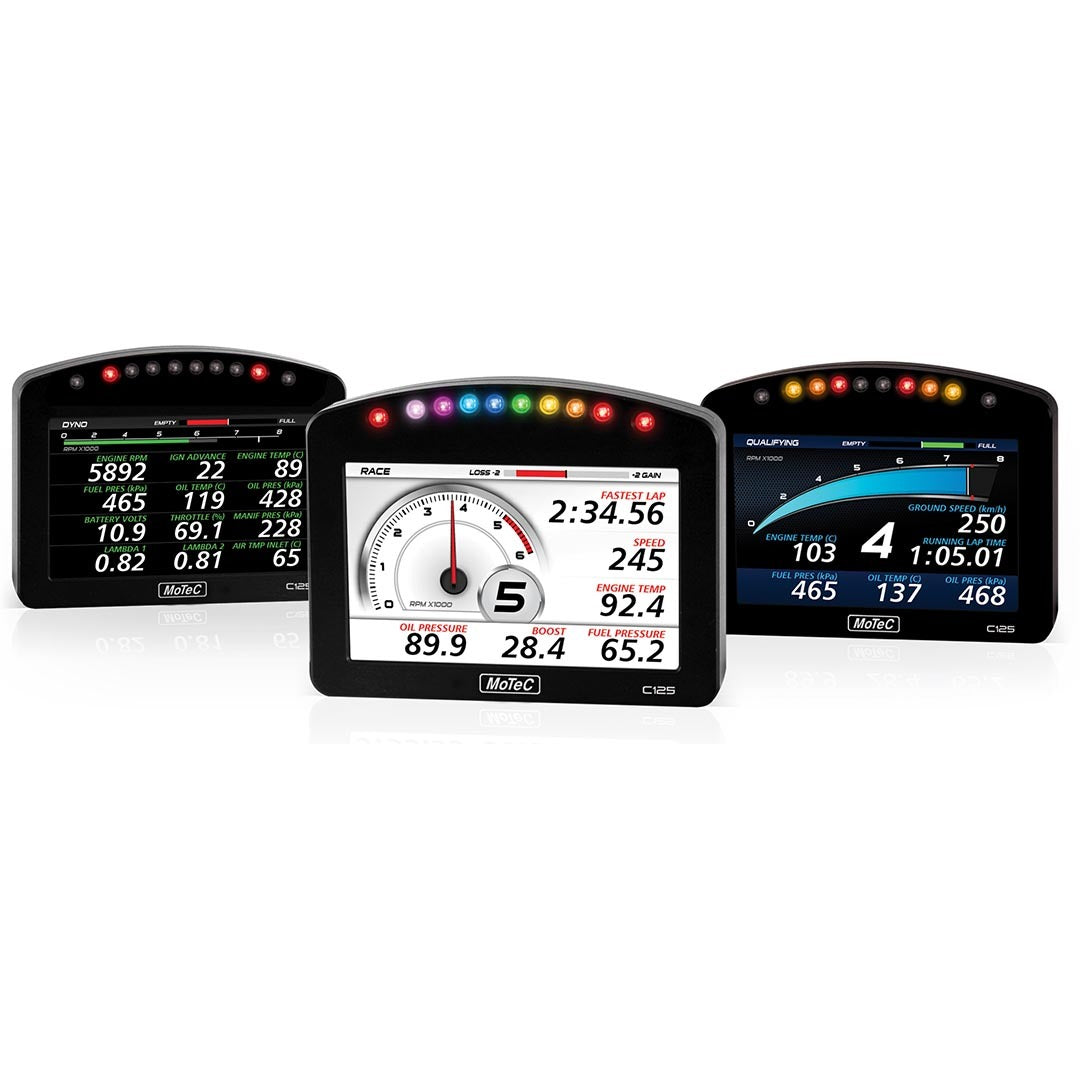

The D175 is part of MoTeC's D1 Series of colour displays designed for use with MoTeC data loggers. Featuring a 5 inch high resolution LCD screen, 10 programmable, full colour LED lights and an Autosport connector, it is ideal for dash mounting. Exceptional brightness and clarity make it easy to read in direct sunlight.

Display Creator
Designed for use with MoTeC’s Colour Displays and Display Loggers, this intuitive and powerful software allows you to fully customise your onscreen graphics.
With Display Creator you can maximise the potential of your high resolution display by generating layouts specifically for your application. Add sponsor logos, design your own gauges, create unique warning screens, use non-English labels and define parameters to suit your individual needs.

Display Creator is free to download and comes with samples to get you started. D1 Series Displays do not require any enable to accept Display Creator files.

SPECIFICATIONS

Motec | 18028 | Data Acquisition & Display

Analogue Inputs

  • Amount: 8 (can be used for switches or potentiometers)
  • Measurement range: 0 V to 4 V
  • Maximum operating voltage = 17.0 V *
  • Maximum protected voltage = 32 V
  • Input equivalent: 10 kΩ to 4.0 V

* Above this voltage other inputs may be affected.

Power Supply

  • Operating voltage = 6.5 V to 32 V
  • Operating current = 380 mA (typical) at 14 V, full brightness
  • Reverse battery protected

Communications

  • CAN 1 Mbit/sec

Display

  • Type: TFT LCD, anti-reflective
  • Screen size: 125 mm diagonal (5" approx)
  • Resolution: 800 x 480, anti-aliased graphics
  • Brightness: controlled via CAN message, 100 steps
  • Layouts: selectable fixed layouts initially, user programmable layouts available in future releases
  • LED Array
  • 10 RGB LEDs
  • Colour, function and intensity are fully programmable

Operating Temperature

  • Internal: -20 °C to 70 °C (above 60 °C maximum backlight brightness progressively reduced)
  • Typical maximum ambient temperature in free air: 55 °C

Physical

  • Weight: 320 grams (excluding wiring)
  • Size: 134.5 x 104 x 20 mm (excluding wiring) (5.3 x 4.1 x 0.8")
  • Anodised aluminium housing
