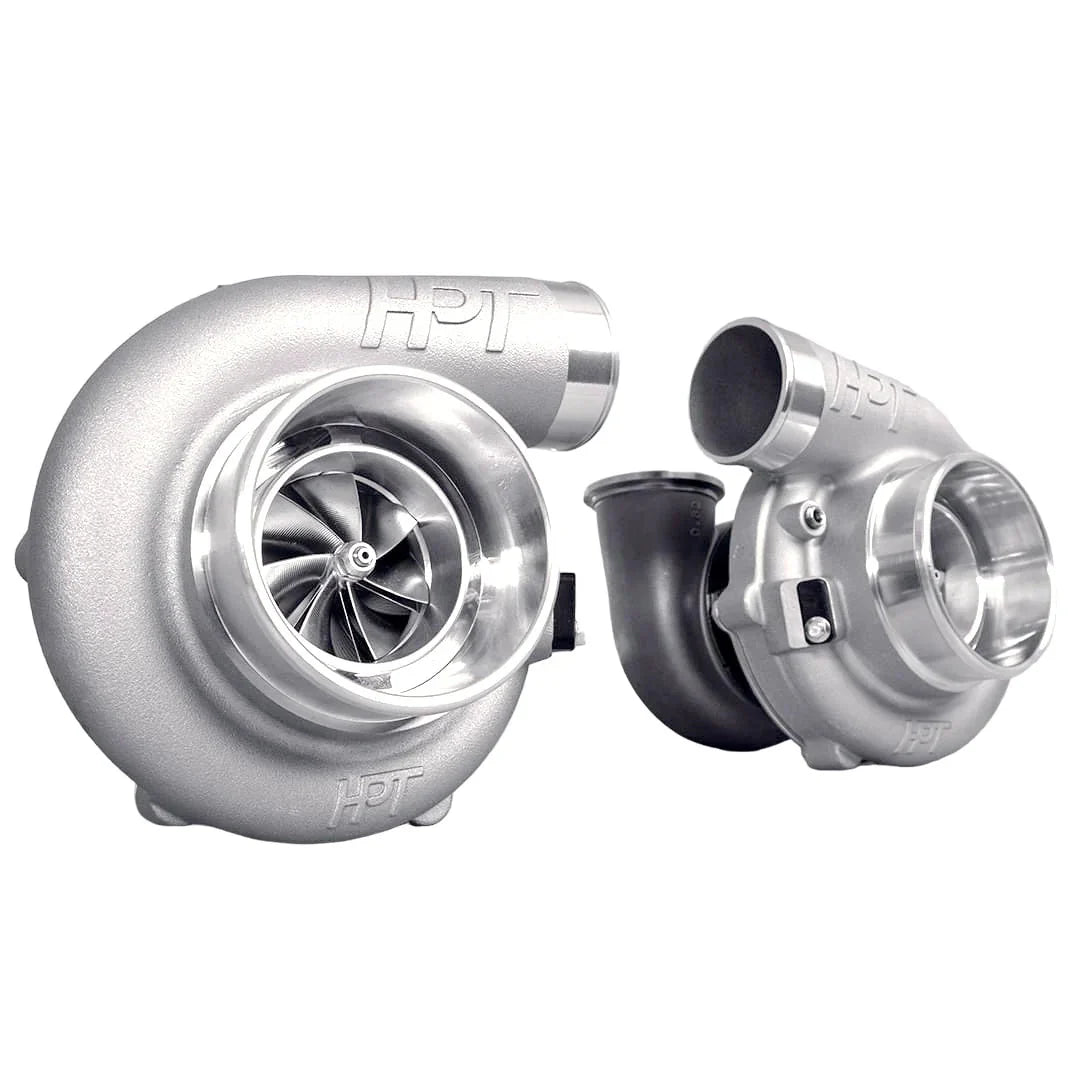

HPT F2 6870 T4 Mirror Image Turbocharger Package
£4,559.00
Skip to product information
HPT F2 6870 T4 Mirror Image Turbocharger Package
£4,559.00
Capable of Supporting up to 2300 Horsepower
The F2 6870 Mirror Image Turbochargers are equipped with HPT's Quick Spool Technology, providing high efficiency with minimal lag.
Kit Includes:
- (1) F2 6870 Standard Rotation Turbocharger 1.07 A/R V-Band In/Out
- (1) F2 6870 Reverse Rotation Turbocharger 1.07 A/R V-Band In/Out
- (2) F2 Stainless Steel Inlet Flanges (2.25")
- (2) F2 Stainless Steel Discharge Flanges (3.00")
- (2) F2 Stainless Steel Inlet Clamps
- (2) F2 Stainless Steel Discharge Clamps
- (2) F2 10AN Oil Drain Fittings
Alongside the bearing system, HPT turbochargers boast superior aerodynamics with lightweight rotating groups. This combination of low-resistance bearings and optimized airflow allows for a larger turbo size without sacrificing transient response.
Features:
- F2 Compressor Cover w/ Ported Shroud
- 2618 Aluminum Compressor Wheel
- 713C Inconel Turbine Wheel
- Cast Iron Bearing Housing w/ Integrated Back Plate
- Ceramic Dual Ball Bearing System
- 310 Investment Cast Stainless Steel Turbine Housing
Specs:
- Compressor Cover Inlet: 4"
- Compressor Cover Discharge: 2 1/2"
- Compressor Wheel Inducer: 68.49mm
- Turbine Wheel Exducer: 70.00mm
Stainless Steel Turbine Housing Options:
- V-band Inlet V-Band Discharge 1.07 A/R
