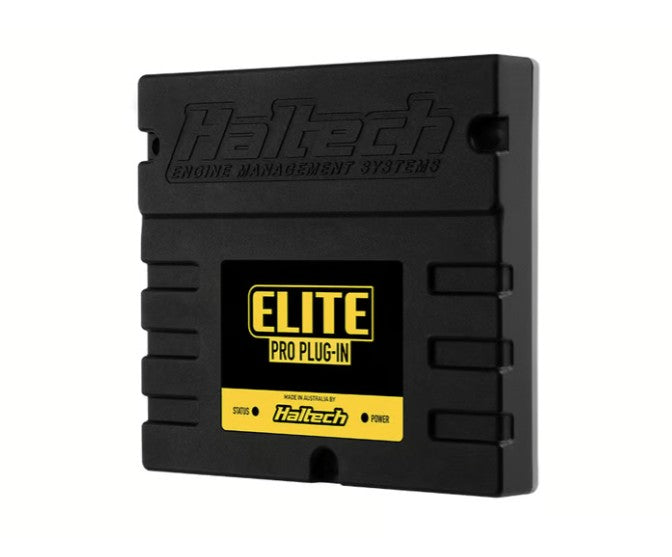

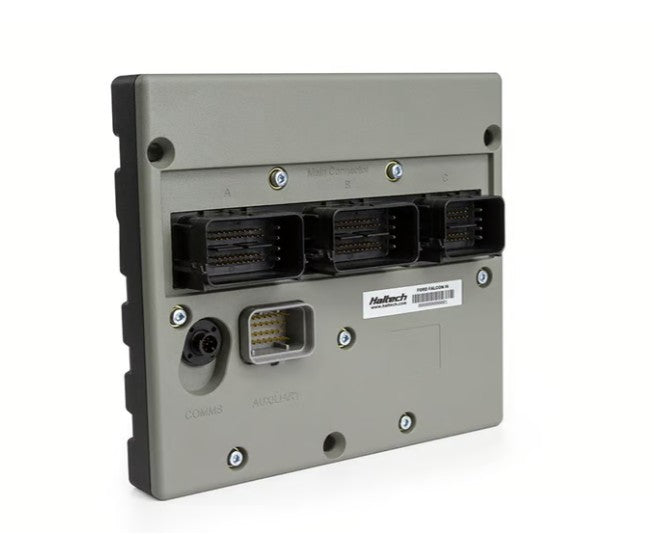

Haltech Elite PRO Barra Plug-in ECU for BA BF FG Falcon XR6 Turbo

Haltech Elite PRO Plug-in ECU for Ford Falcon Barra BA BF FG

The Haltech Elite PRO Plug-in ECU is a premium standalone engine management solution designed specifically for Ford Falcon Barra-powered vehicles. Supporting BA, BF, and FG Falcon models, this advanced plug-and-play ECU delivers race-ready tuning capabilities, onboard wideband control, flex fuel support, and seamless factory integration without the need for complex rewiring.

Designed for serious Barra enthusiasts, tuners, and motorsport applications, the Elite PRO Plug-in ECU connects directly to the factory wiring harness and mounts perfectly in the factory ECU location for fast and hassle-free installation.

Featuring advanced motorsport functions including launch control, anti-lag, closed loop boost control, knock control, and E85 flex fuel compatibility, the Haltech Elite PRO is one of the most powerful and versatile ECU solutions available for naturally aspirated and turbocharged Ford Barra engines.

Vehicle Compatibility

Compatible with:

• Ford Falcon BA (2002–2005)
• Ford Falcon BF (2005–2008)
• Ford Falcon FG (2008–2014)
• Ford Barra 4.0L DOHC VCT Engines
• Naturally Aspirated Barra Engines
• Turbo Barra Engines
• Manual Transmission Vehicles
• ZF 6HP26 6-Speed Automatic Transmission Vehicles

Plug-and-Play Installation

The Haltech Elite PRO Plug-in ECU is designed as a true plug-and-play ECU upgrade for Ford Falcon Barra platforms.

Benefits include:

• Direct factory harness connection
• No major rewiring required
• Fits factory ECU location
• Retains factory functions
• Fast installation and setup

Perfect for street performance builds, drift cars, drag cars, circuit racing applications, and high-horsepower Barra projects.

Key Features

• True plug-and-play ECU solution
• Onboard LSU 4.9 wideband controller
• Closed loop boost control
• Anti-lag and launch control
• Flex fuel and E85 support
• Multi-fuel compatibility
• Variable cam control
• Cruise control support
• OBDII diagnostic functionality
• Knock control with digital filtering
• Drive By Wire (DBW) throttle support
• Multi-level engine protection
• Short and long term learning for fuel, ignition, boost, and idle
• Advanced tuning via Haltech ESP software
• Water resistant die-cast aluminium enclosure

Advanced Motorsport Functions

The Elite PRO Plug-in ECU is engineered for high-performance and motorsport applications, offering advanced race functions for maximum control and tuning flexibility.

Features include:

• Closed loop boost control by gear, wheel speed, or time
• Launch control with drag and rally modes
• Anti-lag functionality
• Closed loop idle control with adaptive learning
• Closed loop O2 control
• Advanced knock detection
• Multi-level engine protection strategies

Whether you’re building a street-driven XR6 Turbo or a dedicated race Barra setup, the Elite PRO provides professional-grade engine management capabilities.

Flex Fuel & Wideband Support

The Haltech Elite PRO is fully compatible with:

• Petrol
• Ethanol
• Methanol
• E85 Flex Fuel

The included internal single-channel wideband controller supports the LSU 4.9 sensor for accurate air/fuel ratio monitoring and tuning.

Factory Function Integration

Unlike many aftermarket ECUs, the Elite PRO retains important factory vehicle functionality including:

• Variable cam control
• Cruise control
• Dash cluster communication
• Automatic transmission control
• OBDII diagnostics

This makes it ideal for both street and race applications requiring OEM-level integration.

ECU Outputs

• 6 x Current controlled injector drivers
• High and low impedance injector compatibility
• 8 x Additional injector outputs for staged injection
• Generic programmable DPO support
• 6 x Ignition outputs supporting OEM Ford coils
• OEM digital pulsed outputs
• Drive By Wire throttle output support

ECU Inputs

• OEM analogue voltage inputs
• 4 x Additional user definable AVIs
• OEM digital pulsed inputs
• 4 x Additional user definable DPIs
• Ford Barra trigger pattern support
• Generic trigger pattern compatibility
• OEM knock input support

ECU Communication

• 2 x CAN bus communication channels
• Haltech CAN support
• Vehicle CAN integration
• USB programming connection

ECU Data Logging

The Elite PRO Plug-in ECU features onboard data logging capabilities with:

• Up to 40 data channels
• 2MB internal storage
• Real-time engine monitoring and analysis

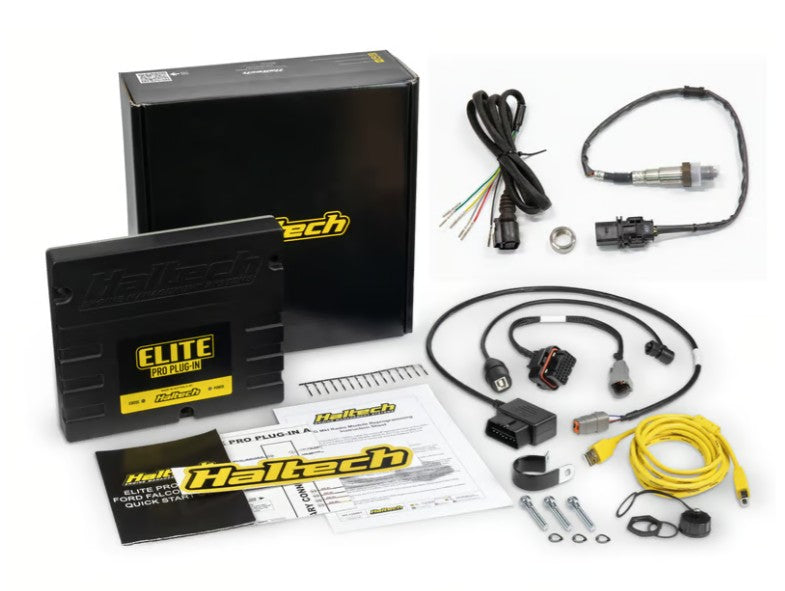

What’s Included

• Haltech Elite PRO Plug-in ECU

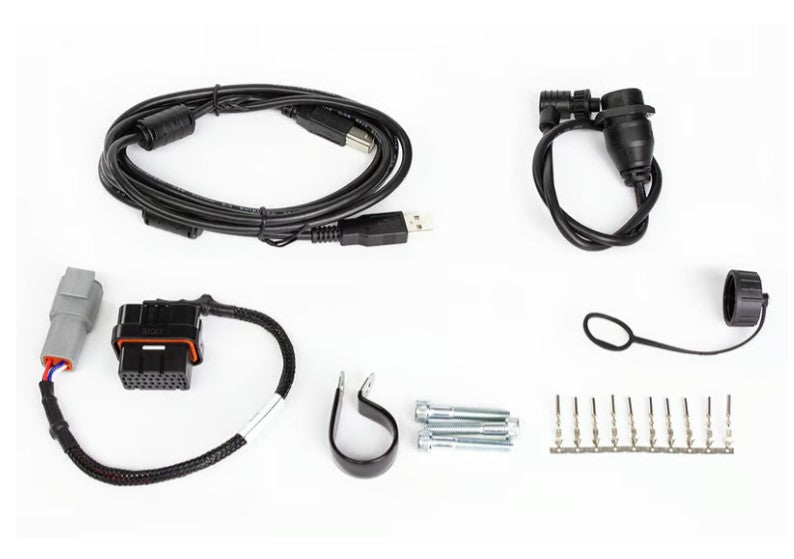

• Auxiliary I/O Harness
• AMP 34 Pin Superseal Connector
• Elite CAN DTM-4 Female Socket
• Waterproofing & blanking pins
• Spare connector pins

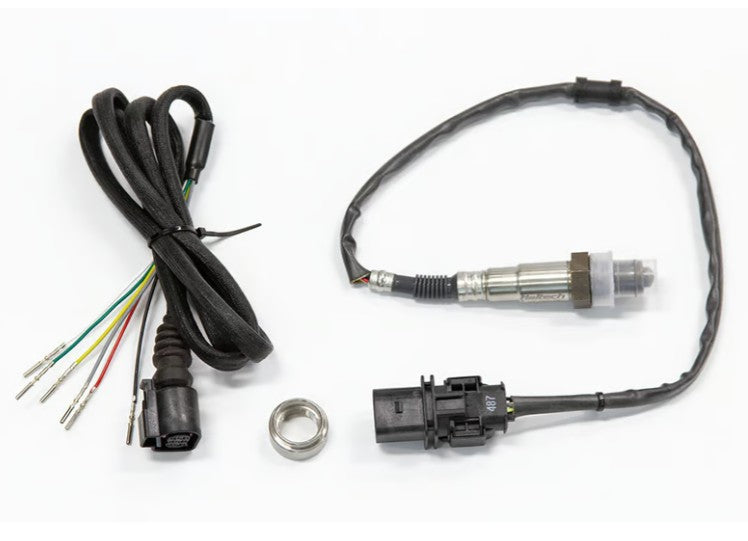

• LSU 4.9 Wideband Sensor
• 1.2m Wideband Harness
• Weld-on Sensor Bung
• Waterproof USB Connection Cable
• Waterproof USB Cap

Why Choose the Haltech Elite PRO Barra ECU?

The Haltech Elite PRO Plug-in ECU combines advanced motorsport tuning technology with true plug-and-play installation for Ford Barra-powered Falcons.

Ideal for:

• XR6 Turbo builds
• High-horsepower Barra setups
• Drift cars
• Drag racing vehicles
• Street performance applications
• Motorsport tuning

With advanced tuning functionality, onboard wideband integration, flex fuel capability, and OEM feature retention, the Elite PRO is one of the most complete standalone ECU solutions available for the Ford Barra platform.

Frequently Asked Questions

Does the Haltech Elite PRO support BA, BF and FG Falcons?

Yes, the ECU is compatible with Ford Falcon BA, BF, and FG Barra-powered vehicles.

Is this a plug-and-play ECU?

Yes, the Elite PRO Plug-in ECU connects directly to the factory wiring harness without requiring major rewiring.

Does this ECU support turbo Barra engines?

Yes, the ECU supports both naturally aspirated and turbocharged Ford Barra engine combinations.

Is flex fuel and E85 supported?

Yes, the Elite PRO supports petrol, ethanol, methanol, and E85 flex fuel applications.

Does the ECU support ZF automatic transmissions?

Yes, the Elite PRO supports the ZF 6HP26 6-speed automatic transmission via CAN communication.

Does this ECU include a wideband sensor?

Yes, the package includes an LSU 4.9 wideband sensor kit.

Can the Haltech Elite PRO be used for motorsport applications?

Yes, the ECU is specifically designed for street performance and motorsport applications including drift, drag, and circuit racing.
