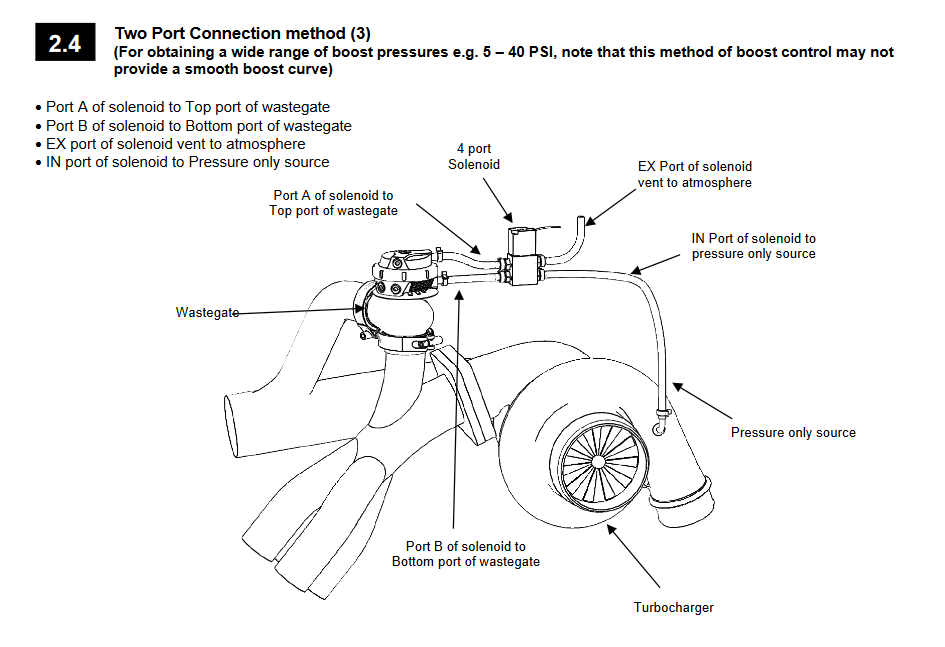

Two Port WG Connection Diagram - Method 3
$0.00
Technical Diagram showing Dual Port Wastegate Solenoid Connection for obtaining a wide range of boost pressures e.g 5 - 40 PSI.

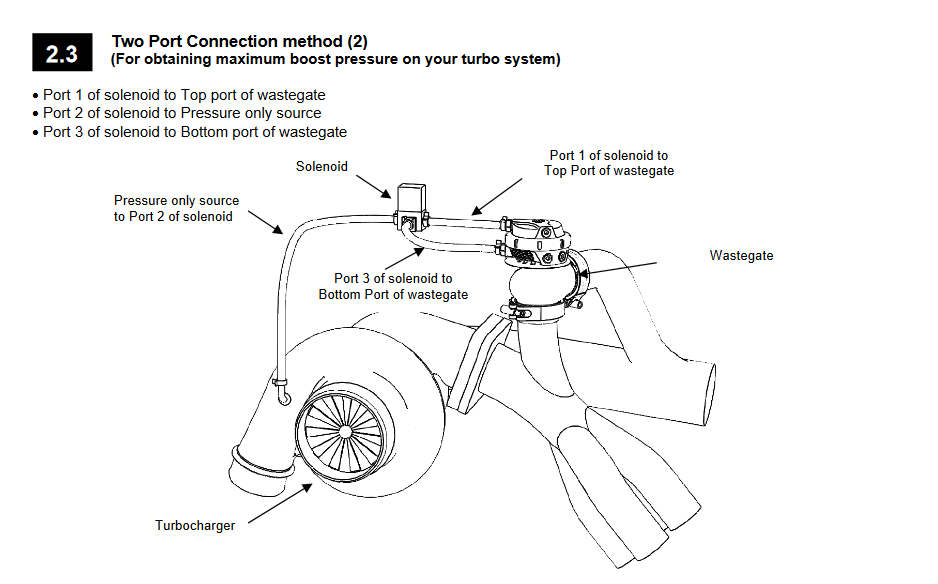

Two Port WG Connection Diagram - Method 2
$0.00
Technical Diagram showing Dual Port Wastegate Solenoid Connection for obtaining maximum boost pressure on your turbo car.

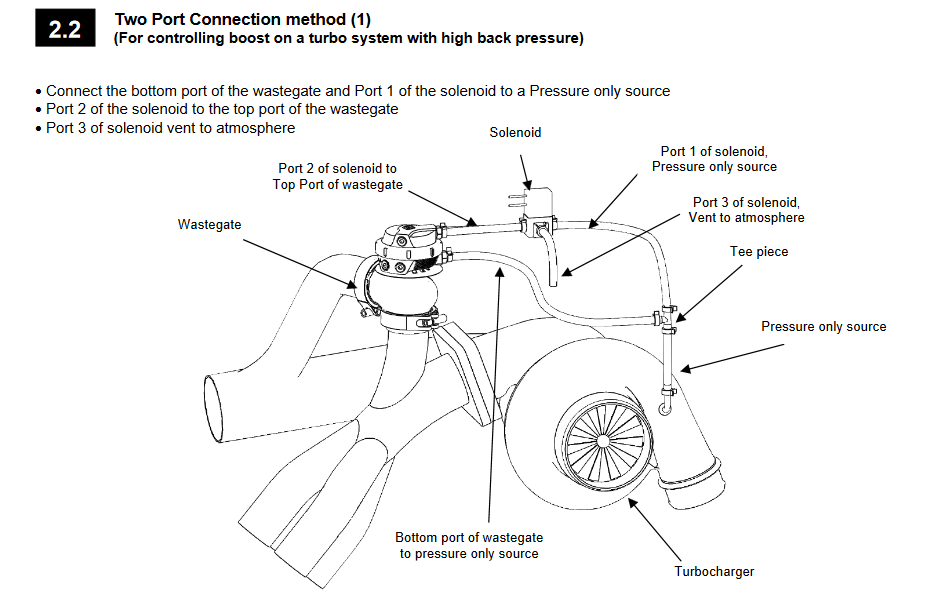

Two Port WG Connection Diagram - Method 1
$0.00
Technical Diagram showing Dual Port Wastegate Solenoid Connection for turbo cars with High Back Pressure

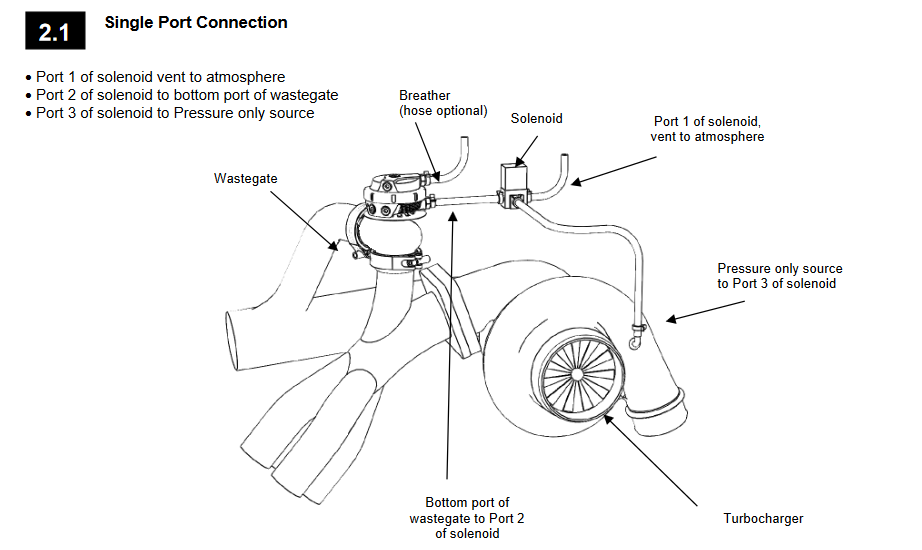

Single Port WG Connection Diagram
$0.00
Technical Diagram showing Single Port WG Connection Instructions
