Why Buy Fuel Injectors from Quickbitz? Because Not All Flow Matching Is Created Equal!

When it comes to fuel injectors, there's a big difference between buying a set of injectors and buying a professionally tested, precision flow-matched set.

At Quickbitz, we don't simply take injectors out of a box, check their advertised flow rating and call them matched.

We specialise in fuel injection, and our approach to injector testing and flow matching goes far beyond checking a single flow figure.

From high-performance street cars to dedicated motorsport applications, our focus is on supplying injectors that deliver consistent, predictable fuel delivery across the operating range.

What Makes Quickbitz Flow Matching Different?

Many injector suppliers advertise flow-matched sets. But what does that actually mean?

In some cases, matching may be based primarily on injector flow at a single pulse width or near maximum operating capacity.

While this provides useful information, it doesn't tell the complete story.

At Quickbitz, we evaluate injector performance across both the high-slope and low-slope regions of operation.

Why? Because an injector that performs almost identically to another at high fuel delivery may behave quite differently at short injection pulse widths.

Those differences can influence idle quality, low-load fuel control, cylinder-to-cylinder consistency and overall engine calibration.

That's why we take a much more methodical approach.

High-Slope Flow Matching — Precision at Higher Fuel Delivery

The high-slope region represents the injector's more linear operating range, where delivered fuel quantity increases relatively predictably with commanded injection time.

Accurate matching in this region is particularly important when an engine requires substantial fuel delivery under higher loads.

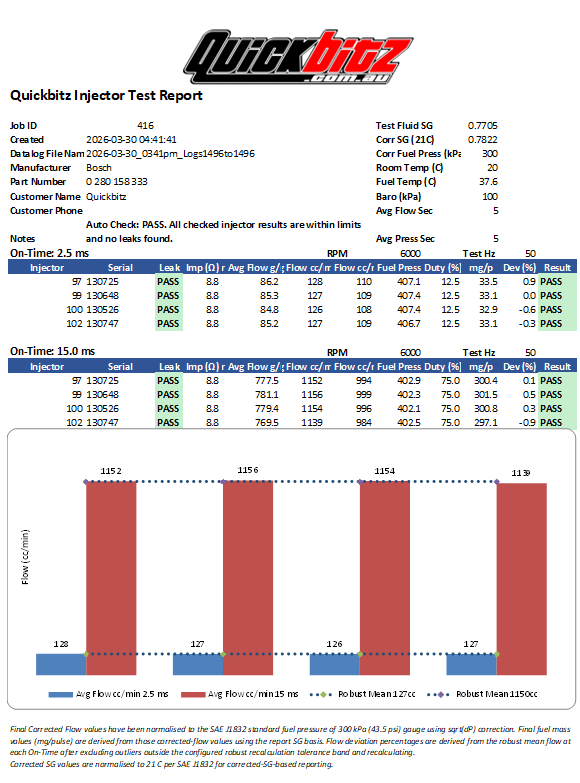

Our process involves testing individual injectors at multiple pulse widths, measuring their delivered fuel quantity and analysing their flow characteristics.

Rather than relying on a single measurement, we compare how each injector behaves across the relevant operating range.

Our objective is to assemble injector sets with exceptionally close flow consistency, targeting within 1% at specified matching conditions wherever achievable.

But high-slope matching is only part of the equation.

Low-Slope Flow Matching — Where the Real Differences Can Appear

This is one of the most important aspects of our injector matching process.

At shorter injection pulse widths, injector behaviour becomes increasingly complex.

The mechanical opening and closing characteristics of the injector, together with its nonlinear fuel delivery behaviour, can create significant differences between injectors that otherwise appear well matched at higher flow rates.

Consider two injectors that are matched within 1% in the high-slope region.

At shorter pulse widths, those same injectors may deliver noticeably different fuel quantities.

This is particularly important for engines using large-capacity injectors, where idle and light-load operation may require extremely small, precisely controlled fuel quantities.

Matching injectors at high flow alone does not guarantee that they will deliver the same amount of fuel at idle.

At Quickbitz, we analyse low-slope behaviour and short-pulse-width fuel delivery as part of our matching methodology.

By evaluating both regions, we can identify injectors with more closely aligned operating characteristics.

The result is a set selected for consistency across a wider range of operating conditions, rather than simply at maximum flow.

Our 1% Matching Target — Precision Through Selection, Not Chance

Achieving an exceptionally close injector match isn't about luck. It's about having the data, the equipment and the patience to select the right injectors.

At Quickbitz, our approach goes well beyond placing eight injectors on a test bench and accepting the results.

We can test and analyse larger populations of injectors, building a detailed picture of how individual units perform.

Each injector is evaluated using measured fuel delivery data across multiple operating points, allowing us to compare both high-slope and low-slope characteristics.

Using this information, we can identify injectors with closely aligned behaviour and group them into matched sets.

This means the injectors selected for a set aren't necessarily the next eight injectors from a box. They're the injectors whose measured characteristics best complement one another.

Why Our Selection Process Matters

Two injectors might be exceptionally close in maximum flow but have noticeably different low-slope characteristics.

Another two injectors may have slightly different maximum flow figures but behave more consistently across the operating region that matters for a particular application.

Our methodical analysis helps us identify these differences.

We examine the injector population, compare individual results and select combinations that provide the closest practical match across the relevant operating range.

Our target is to achieve matching within 1% at the defined test conditions wherever the injector population and application allow.

Importantly, high-slope and low-slope performance are evaluated separately. A close match in one region is not automatically accepted as proof of a close match in the other.

Not every injector will qualify for every matched set.

We would rather take the time to select the correct combination than compromise the quality of the match simply to complete a set.

This is what we mean by precision flow matching.

Methodical Testing — Every Injector Tells a Story

Our injector matching process is built around repeatable measurements, detailed analysis and careful selection.

Rather than relying solely on manufacturer specifications or advertised flow ratings, we assess how each injector actually performs.

Our process includes:

• Individual injector identification and testing: Keeping track of individual injector results throughout the evaluation process.

• Multiple pulse-width measurements: Measuring fuel delivery at different commanded injection times rather than relying on one operating point.

• High-slope analysis: Comparing fuel delivery characteristics in the more linear operating region.

• Low-slope analysis: Identifying variations in short-pulse-width behaviour.

• Population analysis: Comparing injectors against a larger group to identify closely aligned characteristics.

• Precision grouping: Selecting injectors that work together as a consistent matched set.

• Leak testing: Checking injector sealing performance and identifying unsuitable units.

• Data review and verification: Assessing whether the selected injectors satisfy the required matching criteria.

We don't just measure injectors. We use the measurements to make informed decisions about which injectors belong together.

Why Low-Slope Matching Matters for Large Injectors

Modern high-performance engines frequently use injectors capable of supplying extremely large amounts of fuel.

However, those same injectors must also provide accurate fuel delivery when the engine requires only a small quantity.

At idle, the ECU may command very short injection pulse widths.

In this region, relatively small differences in injector behaviour can represent a substantial percentage of the total fuel delivered.

This can contribute to cylinder-to-cylinder fuelling differences, even when the injectors appear closely matched at higher flow rates.

A properly selected injector set should be evaluated for both high-load fuel delivery and low-load control.

For Quickbitz, low-slope performance is not an afterthought. It is a critical part of how we evaluate injector matching.

Injector Characterisation — Understanding More Than Just Flow Rate

Flow matching is only one part of understanding injector performance.

Injector characterisation provides further information about how an injector behaves under different operating conditions.

Depending on the application and available testing data, this can include:

• High-slope and low-slope fuel delivery characteristics

• Injector breakpoint information

• Injector offset and response characteristics

• Battery-voltage-related injector behaviour

• ECU-specific injector calibration data

Quickbitz has experience working with injector data for engine management systems including Haltech, Emtron, MoTeC, Link ECU and Ford-style injector models.

Understanding these characteristics helps bridge the gap between the injector's physical behaviour and the information required by the ECU.

An injector's advertised flow rating tells you how much fuel it can deliver under specified conditions. Characterisation helps explain how it delivers that fuel.

Leak Testing — Because Flow Isn't Everything

A fuel injector can produce acceptable flow results and still have other problems.

Injector sealing and leakage performance are important considerations, particularly in high-performance applications.

That's why leak testing forms part of our injector evaluation process.

We want customers to have confidence that their injectors have been assessed for more than simply their maximum fuel delivery.

Why Buy from an Injector Specialist Instead of a General Parts Supplier?

When you purchase injectors from Quickbitz, you're dealing with a business that understands the technical details behind fuel injector operation.

We don't simply supply injectors based on the number printed on the box.

We understand the importance of accurate flow measurements, high-slope and low-slope matching, injector characterisation and correct injector selection.

Our in-house testing and analysis capabilities allow us to provide specialist advice supported by practical experience.

We also offer professional injector servicing, cleaning, testing and flow analysis, giving customers access to ongoing technical support.

Whether you're building a high-performance street engine, a dedicated race car or a sophisticated EFI application, our objective is to help you select injectors that suit your requirements.

The Quickbitz Difference

Not all flow-matched injectors are created equal.

At Quickbitz, our approach is based on measurement, consistency and attention to detail.

We believe customers deserve more than an advertised flow rating.

They deserve to know that their injectors have been carefully evaluated and selected with performance and consistency in mind.

From high-slope matching to the critical low-slope operating region, we focus on the details that matter.

We don't just sell injectors. We test, analyse, compare and select them — because the quality of a matched set is determined by how well its injectors perform together.

Quickbitz — The Injector Experts! We Are Here to Help You!

For professional flow-matched fuel injectors, injector testing, servicing and technical advice, contact Quickbitz.
