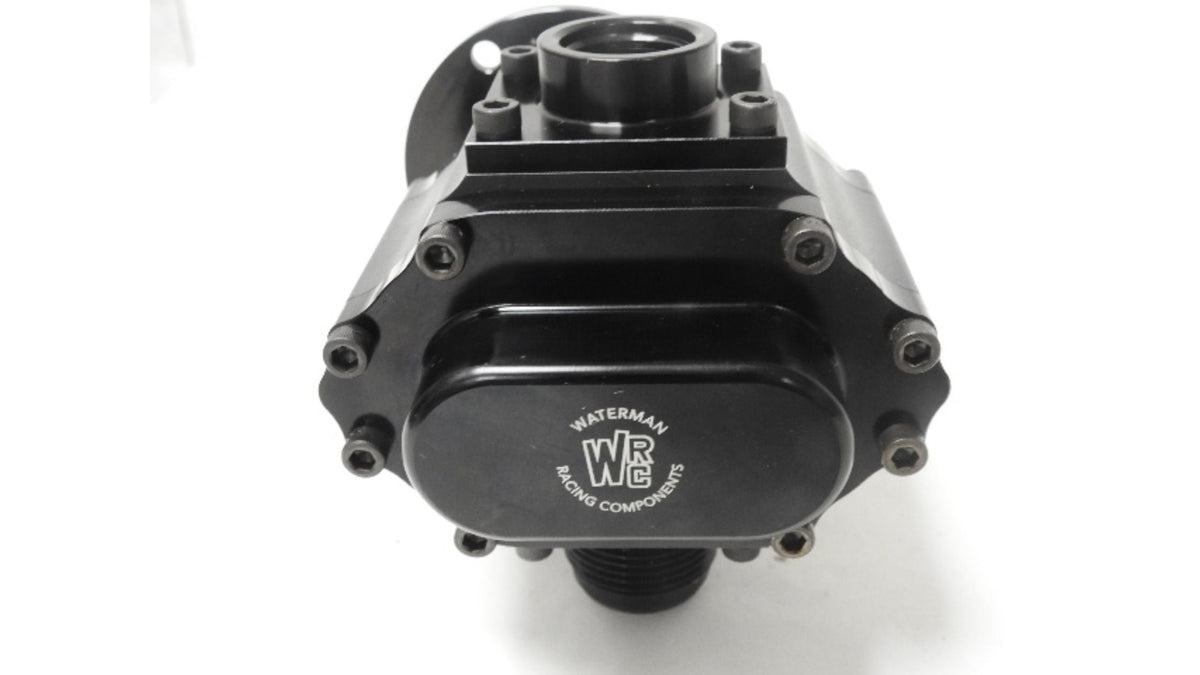

Should Your Race Car Use a Direct-Drive or Cable-Drive Waterman Fuel Pump?

When it comes to direct-drive racing fuel pumps, Waterman cable-drive fuel pumps, proven on sprint cars, route power through a flexible cable with strict minimum-radius, temperature, and lube-interval limits. Direct-drive units bolt straight to the engine, skipping those constraints. Direct-drive setups suit blow-through big-blocks running

Key Takeaways

• Direct-drive fuel pumps eliminate belt wear and maintenance costs associated with cable-driven systems
• Cable-driven Waterman pumps deliver consistent fuel pressure for sprint car racing applications without electric dependency
• Belt-drive conversions require additional components like fuel shut-off valves, increasing total installation expenses significantly
• Quickbitz stocks racing fuel pump accessories and provides expert dyno tuning services in Melbourne for optimal performance

What defines a direct-drive racing fuel pump?

A direct-drive racing fuel pump is a mechanical pump driven directly off the engine, eliminating the electrical complexity and current draw of large electric units. These pumps handle the fuel demands of high-horsepower race cars without relying on wiring, relays, or battery voltage. A direct-drive system is designed to deliver consistent fuel pressure for high-horsepower blow-through BBC builds at high RPM where electric pumps often struggle.

What hidden costs come with a direct-drive setup?

Converting to a mechanical pump introduces costs beyond the pump itself. You need a fuel shut-off valve for safety during maintenance, plus mounting brackets and drive hardware. A rear-mounted fuel cell requires a separate elevator pump or careful pump positioning to maintain prime. The total package may vary in cost; contact Quickbitz for more information, but the mechanical reliability often justifies the investment.

How does mechanical fuel pump mounting affect performance?

Mechanical fuel pump mounting demands precise alignment with the engine's drive system. The pump's axis must sit parallel to the crankshaft or camshaft drive, with no binding in the belt or cable path. Misalignment causes premature wear, belt slippage, or pump seal failure. Quickbitz sells racing car accessories and mounting hardware tested in actual race cars, ensuring your direct-drive pump stays aligned under full-throttle loads.

How does a cable-drive Waterman pump work?

A cable-drive Waterman pump uses a flexible cable, similar to a speedometer cable, to transmit engine rotation to a remotely mounted mechanical fuel pump. This design allows the pump to sit away from the engine's front cover, solving clearance issues in tight engine bays. Waterman racing components include cable-drive pumps commonly used in sprint cars and NASCAR-style applications. Space constraints make a direct-drive setup impractical.

What models does Waterman offer for cable-drive pumps?

Waterman produces several cable-drive pump models to match different power levels and applications. The lineup includes the Sprint, Super Sprint, Lil Bertha, and Nostalgia Bertha. Each model targets a specific flow range and engine configuration. You match the pump to your horsepower target rather than overworking a smaller unit.

What maintenance does a cable-drive Waterman pump require?

Waterman provides specific warnings about minimum cable radius, temperature limits, lubrication intervals, and maximum speed. Ignoring these parameters causes premature cable wear or pump failure. You must lubricate the cable housing at regular intervals. Keep the cable bend radius above the manufacturer's minimum to prevent binding. Quickbitz offers dyno tuning services in Melbourne to help dial in fuel delivery systems including mechanical pumps, ensuring your cable-drive setup delivers consistent pressure across the entire rpm range.

Mechanical Fuel Pump Mounting: Direct-Drive vs. Cable-Drive Waterman Pump

Choosing between a direct-drive racing fuel pump. A cable-drive Waterman pump starts with your engine bay layout and your crankshaft access. A direct-drive unit bolts to the front of the engine and spins at crank speed, which delivers maximum flow with zero belt slip. A cable-drive setup relocates the pump away from the engine, which solves clearance problems but introduces a new set of mechanical demands. Without a deliberate plan, you lose pressure at high RPM and risk pump failure mid-pass.

Mechanical fuel pump mounting for a direct-drive unit requires a rigid, concentric mount. The pump shaft must align with the crank centerline within tight tolerances; any angular misalignment loads the internal bearings and shortens seal life. You also need a dedicated drive hub or coupler that handles torsional vibration without fretting. For a blow-through BBC in the 700–800 hp range, a direct-drive pump handles the volume easily, but you must confirm the pump's maximum speed rating against your engine's redline. Exceeding that rating starves the pump's internal gears and drops fuel pressure exactly when the engine needs it most.

A cable-drive Waterman pump solves the packaging problem by letting you mount the pump remotely, often near the fuel cell. That placement shortens the suction line, which helps a rear-mounted cell feed the pump without cavitation. The trade-off is the cable itself. Waterman racing components specify a minimum bend radius, operating temperature range, and lubrication interval for the cable drive. Ignoring those limits causes the cable to fatigue, snap, or bind, and a failed cable stops fuel delivery instantly. You also need a right-angle gearbox or a belt reduction if the pump's axis sits out of plane with the engine's accessory drive.

For high-horsepower applications, plan the mounting system for future capacity. A direct-drive pump with a larger displacement rating bolts into the same mount, so you avoid reworking the bracket later. A cable-drive system requires a pump and cable matched to the higher flow. The cable's speed rating becomes the limiting factor. Verify the pump's maximum RPM against your projected redline before you commit to either layout. Waterman racing components include the necessary drive hardware. You must select the correct cable length and routing to keep the bend radius within spec. Measure the actual path from the drive source to the pump, add slack for vibration, and secure the cable at both ends to prevent chafing.

FAQ

What's the main difference between direct-drive and cable-drive fuel pumps?

Direct-drive pumps bolt straight to the engine, skipping cable constraints like minimum-radius and lube intervals. Cable-drive Waterman pumps use a flexible cable to transmit rotation to a remotely mounted pump, solving clearance issues in tight engine bays.

Why choose a direct-drive pump for a high-horsepower build?

Direct-drive pumps eliminate electrical complexity, wiring, and battery dependency, delivering consistent fuel pressure at high RPM for blow-through big-block applications. They suit 700-800 hp builds where electric pumps often struggle at high RPM.

What ongoing maintenance does a cable-drive Waterman pump need?

Cable-drive pumps require adherence to Waterman's minimum cable radius, temperature limits, maximum speed, and regular lubrication intervals. Ignoring these parameters causes premature cable wear or pump failure over time.

Conclusion

In closing, the choice between direct-drive and cable-drive systems hinges on your specific racing application, budget constraints, and performance objectives. Direct-drive delivers superior reliability and efficiency for high-RPM competition, while cable-drive offers simplicity and cost-effectiveness for traditional setups. Both configurations demand precision tuning to unlock their full potential. At Quickbitz, our dyno tuning expertise ensures your fuel pump system performs at peak efficiency, regardless of which architecture you select for your race car.
